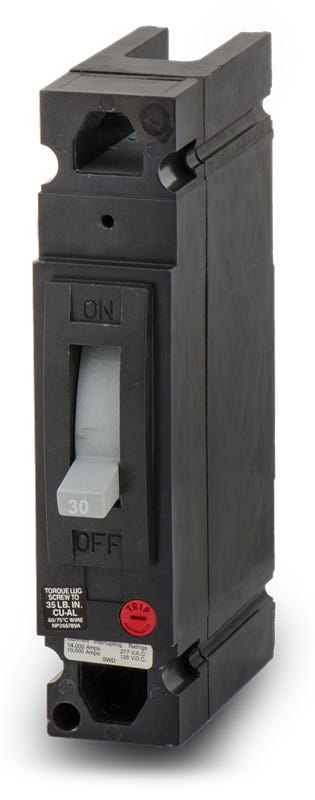

ABB / General Electric TED111030 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
ABB / General Electric
TED111030
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED111030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED111030 - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items

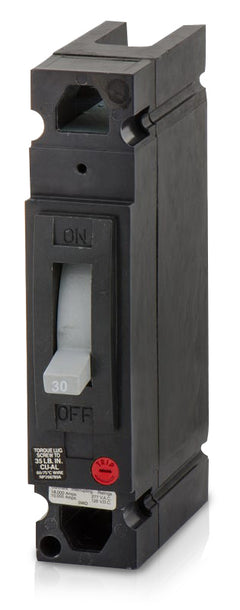

ABB / General ElectricTED114030
30A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113040
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113020
20A 1 Pole Molded Case Circuit Breaker
Description
Operating at 120VAC or 125VDC, this 30-amp GE molded case breaker delivers dependable thermal-magnetic protection. The single-pole E-Frame device is tailored for commercial facilities. Its bolt-on design fits securely into GE A-Series and Spectra panelboards. It also functions as an ideal upgrade path to replace aging TEB111030 breakers. Equipped with a 14kAIC rating at 120VAC, the unit provides robust fault clearing and carries an HACR rating for heating and cooling equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED111030-R |
| Series | TED |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhich GE panelboards are compatible with the TED111030 circuit breaker?
This bolt-on breaker is designed for use in GE A-Series and GE Spectra Series commercial and industrial panelboards. It is not compatible with residential PowerMark Gold load centers.
Is the TED111030 rated for direct current (DC) applications?
Yes, this breaker carries a DC rating of 125VDC with an interrupting capacity of 10kAIC, making it suitable for specific control circuit or DC distribution applications.
What type of wire conductors are permitted for the load side lugs on this breaker?
The factory-installed load side lugs accept either copper or aluminum conductors ranging from 14 AWG to 8 AWG.
Can the TED111030 be used to replace a THQB or THQL breaker?
No. The TED frame is physically larger and uses a different bolt-on configuration than the standard 1-inch THQB or plug-on THQL breakers. They are not interchangeable.
Has the GE TED series been discontinued?
Yes, the GE TED frame is a legacy molded case circuit breaker series. ABB acquired GE Industrial Solutions and has transitioned many legacy lines to the Tmax XT series, though exact retrofits depend on the existing panelboard interior.
Does this breaker require a separate mounting hardware kit for installation?
When installing in an A-Series or Spectra panelboard, you typically need the appropriate breaker mounting kit or strap kit specific to the panelboard interior if the space was not previously provisioned.
