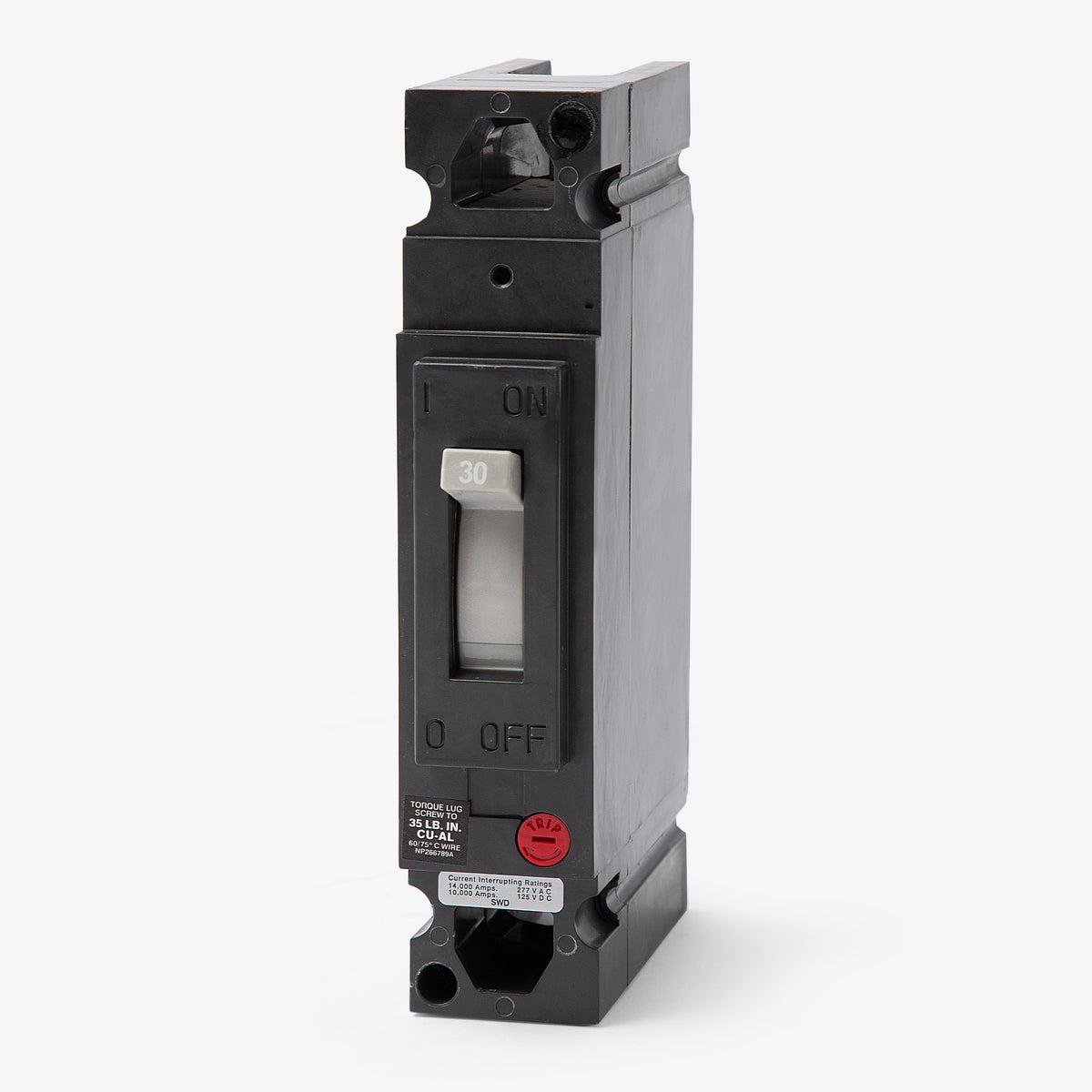

ABB / General Electric TED113030 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
ABB / General Electric
TED113030
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED113030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED113030 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED113030 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113030 |
| Series | TED |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included (TCAL14) |
| Standards | CSA C22.2 No. 5.1, HACR, UL 489, NEMA AB 1 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
ABB / General Electric TED113030 - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113030-R |
| Series | TED |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included (TCAL14) |
| Standards | CSA C22.2 No. 5.1, HACR, UL 489, NEMA AB 1 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTED113040
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113020
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113045
45A 1 Pole Molded Case Circuit Breaker
Description
A robust solution for commercial facilities, the GE TED113030 operates as a 1-pole, 30A molded case circuit breaker. It features a non-interchangeable thermal-magnetic trip unit for precise LI protection. This bolt-on breaker is specifically engineered for compatibility with GE A-Series and Spectra Series panelboards. It comes equipped with a load-side lug (TCAL14). With a 14 kAIC rating at 277VAC, it meets rigorous industrial demands. The breaker is HACR rated and reverse feed capable.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113030 |
| Series | TED |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included (TCAL14) |
| Standards | CSA C22.2 No. 5.1, HACR, UL 489, NEMA AB 1 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersWhich panelboards are compatible with the TED113030 circuit breaker?
This 1-pole E-Frame breaker is designed for bolt-on installation in GE A-Series panelboards and Spectra Series power panels.
What is the direct current (DC) interrupting capacity of the TED113030?
In addition to its 14kAIC rating at 277VAC, this breaker is rated for DC applications with an interrupting capacity of 10kA at 125VDC.
Are terminal lugs included with this breaker?

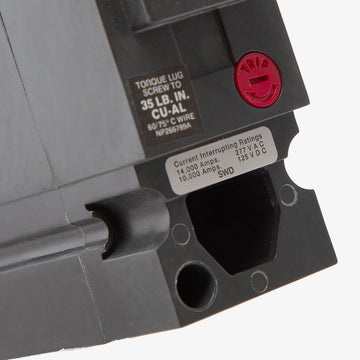

Yes, it comes equipped with lugs that accommodate 14 to 8 AWG copper wire or 12 to 8 AWG aluminum wire. Always torque terminals to the manufacturer specifications found on the side label of the breaker.
Why might my TED113030 arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions. As a result, this exact E150 line breaker may carry ABB, GE, or ABB/GE branding. The physical dimensions, mounting, and technical specifications remain identical and fully interchangeable.
Is the TED113030 approved for reverse feed installations?
Yes, circuit breakers in the GE E150 product line, including the TED, TEB, and THED frames, are suitable for reverse feed applications.

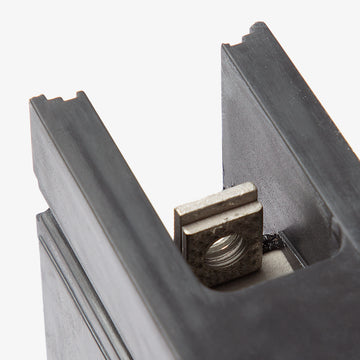

How does the TED113030 connect to the panelboard bus?
It features a bolt-on connection type. The breaker must be bolted directly to the busbar, providing a highly secure mechanical and electrical connection suited for heavy-duty commercial panelboards.
Can I adjust the trip settings on the TED113030?
No, this thermal magnetic breaker utilizes a non-interchangeable trip unit with fixed thermal and fixed magnetic elements. The long-time and instantaneous trip points are factory set and cannot be adjusted in the field.
Will the breaker still trip if the handle is physically restricted?
Yes, GE E-Frame molded case circuit breakers utilize a trip-free mechanism. The internal contacts will safely open during a fault or overload condition even if the external handle is blocked or held in the ON position.
