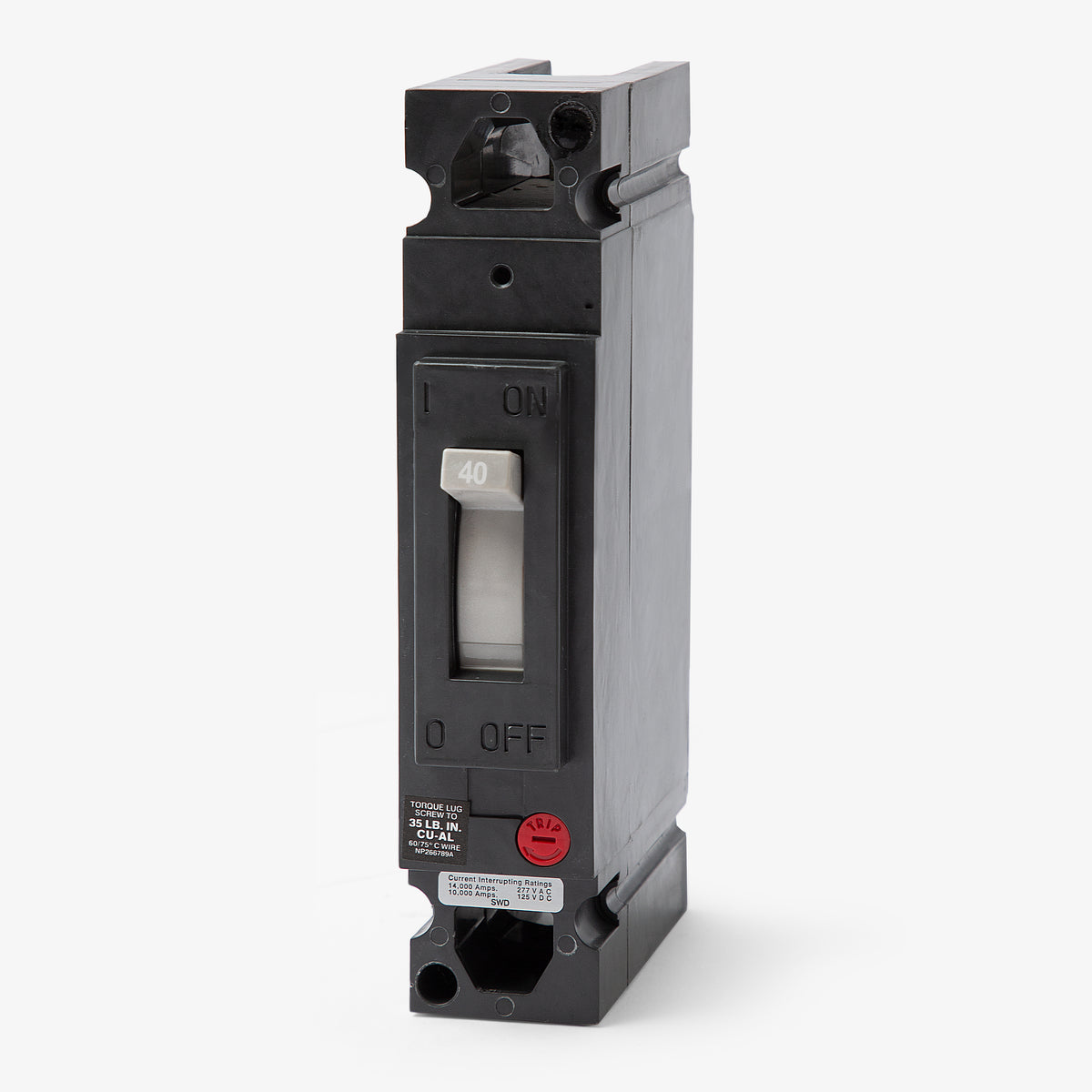

ABB / General Electric TED113040 Molded Case Circuit Breaker
- 40A
- 1 Pole
- Bolt-On
ABB / General Electric
TED113040
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED113040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED113040 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED113040 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113040 |
| Series | TED |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric TED113040 - 40A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113040-R |
| Series | TED |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTED113050
50A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113030
30A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED114030
30A 1 Pole Molded Case Circuit Breaker
Description
Part of the legacy E-Frame family, this 40A single-pole molded case circuit breaker provides thermal-magnetic protection for commercial and industrial electrical systems. It installs seamlessly into GE A-Series and Spectra panelboards requiring a bolt-on connection. While this specific model has been superseded by the TEYD1040B, it remains a vital replacement component for existing infrastructure. Features include a 14kAIC rating at 277VAC, HACR certification, and reverse feed capabilities.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113040 |
| Series | TED |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhich panelboards are compatible with the TED113040 circuit breaker?
This bolt-on E-Frame breaker is designed for installation in GE A-Series and GE Spectra panelboards.
Is the TED113040 an obsolete breaker, and is there a direct replacement?
Yes, the TED113040 is a legacy E-Frame breaker. It has been superseded by the TEYD1040B, though the TED113040 remains available as a direct replacement component for existing infrastructure.
What does the WL suffix mean on catalog numbers like TED113040WL?
The WL suffix indicates that the circuit breaker is factory-equipped with copper/aluminum (Cu/Al) line and load lugs.
Is the TED113040 suitable for reverse feed applications?
Yes, all GE TEB, TED, and THED series breakers, including the TED113040, are suitable for reverse feed applications.
Can this breaker be used in HVAC applications?
Yes, the TED113040 is HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment circuits.
What wire sizes are accepted by the lugs on the TED113040?
The standard lugs accept 14 to 3 AWG copper (Cu) wire or 12 to 1/0 AWG aluminum (Al) wire.
What type of trip unit does this breaker use?
It features a non-interchangeable thermal-magnetic trip unit that provides both long-time overload and instantaneous short-circuit protection.
Can the TED113040 be used in DC electrical systems?
Yes, in addition to its 277VAC rating, this breaker is rated for 125VDC applications with an interrupting capacity of 10kAIC.
