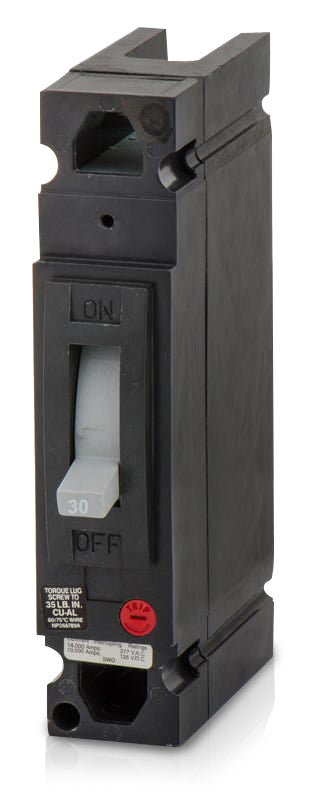

ABB / General Electric TED114030 - 30A 1 Pole Molded Case Circuit Breaker
Free Shipping Over $99

ABB / General Electric TED114030 Molded Case Circuit Breaker

  • 30A
  • 1 Pole
  • Bolt-On
ABB / General Electric TED114030
Molded Case Circuit Breaker
Brand ABB / General Electric
SKU TED114030
Select Item Condition
Earn 248 SuperPoints
  • 30A
  • 1 Pole
  • Bolt-On

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Request Pricing
ABB / General Electric TED114030 - 30A 1 Pole Molded Case Circuit Breaker

ABB / General Electric TED114030 - 30A 1 Pole Molded Case Circuit Breaker

New

$248.28 In Stock

Quantity

Similar Items

Description SpecificationsProduct FAQs SuperClub Warranties Shipping Reviews 4.9 (34)

Description

Engineered for commercial and industrial applications, this 1-pole 30A E-Frame breaker delivers robust thermal-magnetic protection. It mounts into standard GE A-Series or Spectra Series panelboards using a secure bolt-on connection. Featuring a 14kAIC rating at 347VAC and HACR certification, the unit handles demanding loads while offering non-interchangeable trip functionality. Note that this legacy component is officially replaced by the Tmax XT1 series, which requires a retrofit kit.

Specifications

Key specifications
Brand ABB / General Electric
Series TED
Amperage 30A
Poles 1
Mounting Style Bolt-On
Voltage 125VDC, 347VAC
Phase 1
AIC Rating 10kA @ 125VDC, 14kA @ 347VAC
Fit and installation
Terminal Type Lugs
For Use With GE A-Series Panelboards, GE Spectra Series Panelboards
Wire Gauge 14-8 AWG (Cu), 12-8 AWG (Al)
Max Wire 8 AWG
Min Wire 14 AWG (Cu), 12 AWG (Al)
Protection and operation
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Standards and features
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment
Accessories Load Lugs (TCAL14)
Standards CSA C22.2 No. 5, NEMA AB 1, UL 489
Approval CSA, HACR, UL
Temp Rating 40C
Construction Features HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism

Product FAQs

5 answers
What panelboards accept the TED114030 circuit breaker?

This E-frame breaker is designed for installation in GE A-Series and GE Spectra Series panelboards. It requires a bolt-on connection directly to the panel bus.

Will I receive an ABB or GE branded breaker when ordering the TED114030?

ABB acquired GE Industrial Solutions, so newer production units carry the ABB brand. Both GE and ABB branded versions share the exact same physical dimensions, mounting, and electrical specifications.

Is the TED114030 rated for direct current (DC) systems?

Yes, this breaker is rated for use in DC systems up to 125VDC, where it provides a 10kA interrupting capacity.

What wire sizes are compatible with the lugs on this 30A breaker?

The standard terminal lugs accept 14 to 8 AWG copper (Cu) wire or 12 to 8 AWG aluminum (Al) wire.

Are the trip settings adjustable on the TED114030?

No, this thermal magnetic breaker features fixed Long-Time and Instantaneous (LI) trip functions. Neither the thermal overload nor the magnetic short circuit response can be adjusted in the field.
