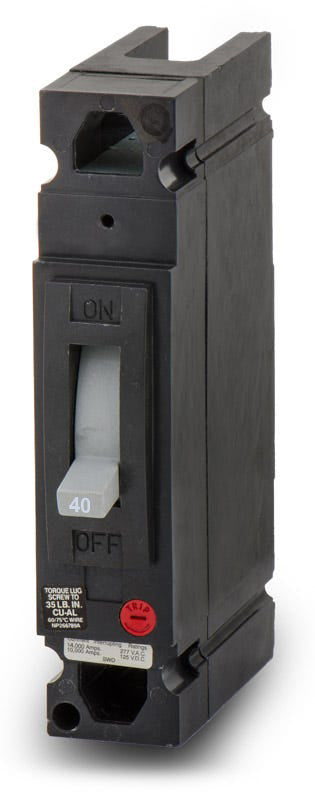

ABB / General Electric TED111040 Molded Case Circuit Breaker
- 40A
- 1 Pole
- Bolt-On
ABB / General Electric
TED111040
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED111040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED111040 - 40A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTED113045
45A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113050
50A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113030
30A 1 Pole Molded Case Circuit Breaker
Description
Built to handle demanding electrical environments, this 40-amp molded case breaker provides essential long-time and instantaneous trip functions. It is optimized for 120VAC commercial power networks. Integration is straightforward as it fastens into GE Spectra and A-Series panelboards. Facilities looking to upgrade can transition to the newer Tmax XT1 platform by employing a retrofit kit. The device offers a 14kAIC capacity and incorporates a fixed thermal-magnetic mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED111040-R |
| Series | TED |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 10kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhich panelboards are compatible with the TED111040 circuit breaker?
This bolt-on breaker is designed specifically for installation in GE A-Series and GE Spectra Series panelboards. It is not compatible with standard GE residential load centers that require plug-on Q-Line breakers.
Why is this breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, legacy GE E-Frame molded case circuit breakers like the TED111040 are now manufactured and distributed under the combined ABB and General Electric brand.
Can the TED111040 be used in direct current systems?
Yes, in addition to its 120VAC rating, this breaker is rated for 125VDC applications with a 10kA interrupting capacity. This makes it suitable for specific DC control circuits and distribution systems.
Does the TED111040 come with factory lugs?
Yes, it includes standard mechanical lugs that accept 14 to 3 AWG copper or 12 to 1 AWG aluminum conductors. Ensure you use the correct wire gauge and material for your 40A circuit requirements.
What does the E-Frame designation mean for the TED111040?
The E-Frame, part of the GE E150 product line, refers to the physical dimensions and maximum amperage capacity of the breaker housing. While this specific breaker is rated for 40A, the E150 frame supports breakers up to 150A.
Are the thermal and magnetic trip settings adjustable on the TED111040?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time overload protection and the instantaneous short-circuit protection are factory-set and cannot be adjusted in the field.
What does the LI trip function code indicate on this breaker?
The LI designation means the breaker provides Long-Time (L) protection against standard overloads and Instantaneous (I) protection against severe short circuits.
