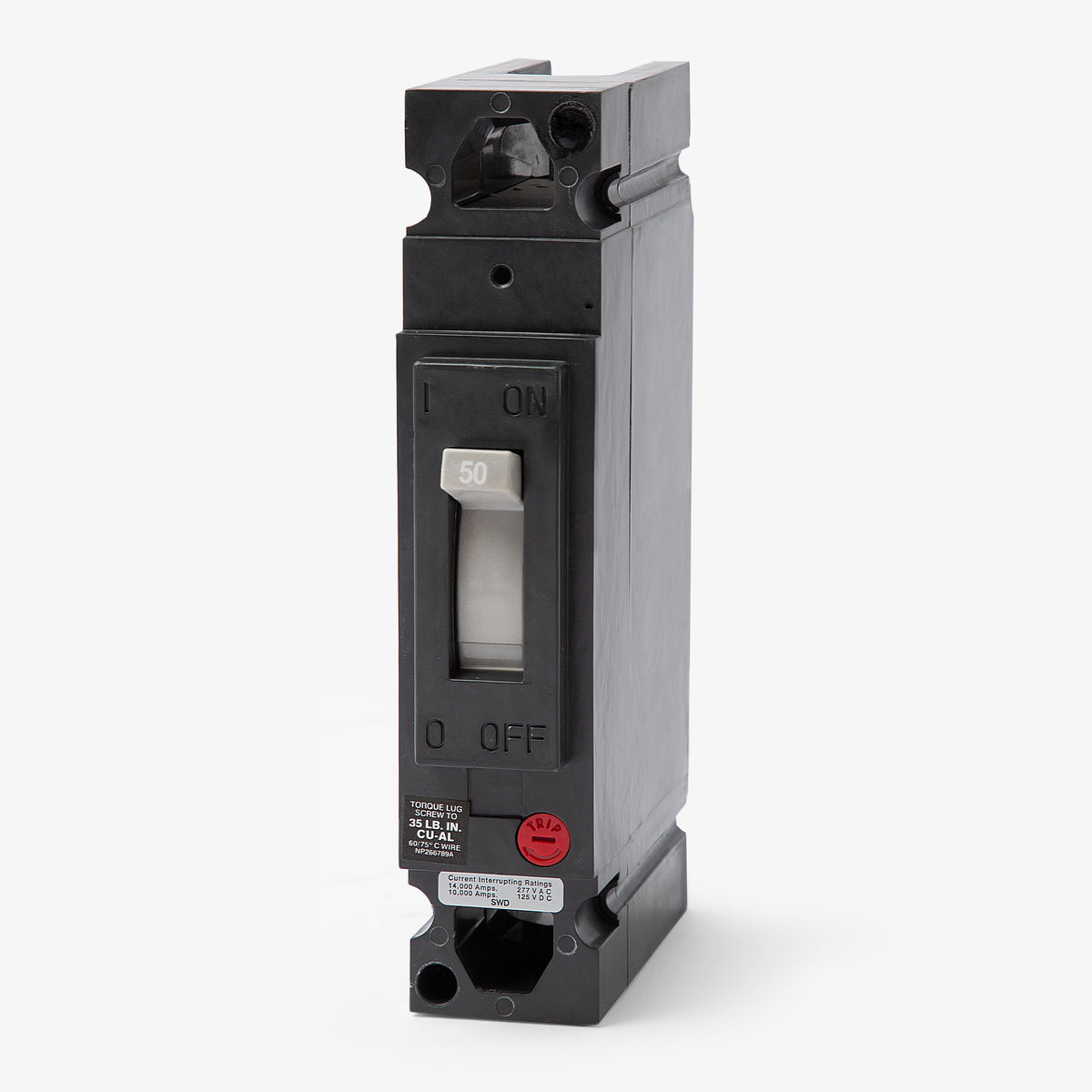

ABB / General Electric TED113050 Molded Case Circuit Breaker
- 50A
- 1 Pole
- Bolt-On
ABB / General Electric
TED113050
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED113050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED113050 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTED113060
60A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113040
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113030
30A 1 Pole Molded Case Circuit Breaker
Description
Built for robust commercial power distribution, the 50A GE TED113050 provides reliable thermal-magnetic protection in a 1-pole configuration. This E150-frame MCCB is designed to bolt into legacy GE A-Series and Spectra Series panelboards. Rated at 14kAIC at 277VAC, it includes standard long-time and instantaneous (LI) trip functions. While this specific model is part of a legacy lineup, it can be replaced by the modern ABB Tmax XT1 series when using the appropriate retrofit kit.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113050 |
| Series | TED |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |

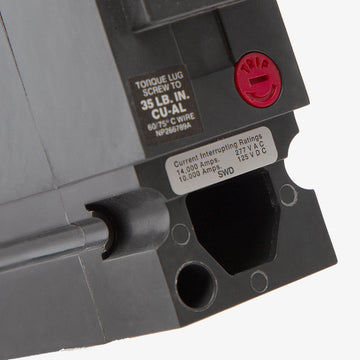

| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|

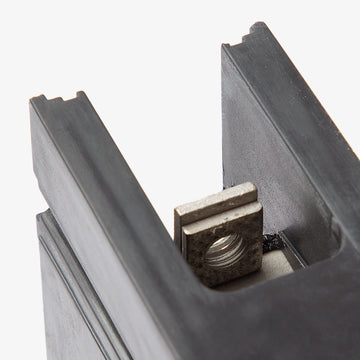

| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersCan I use the TED113050 in a standard GE residential load center?
No. The TED113050 is an E150-frame molded case circuit breaker designed for commercial GE A-Series and Spectra Series panelboards. It will not fit in residential PowerMark Gold load centers, which require Q-Line breakers like the THQL series.
Is the TED113050 HACR rated?
Yes, it carries an HACR rating, meaning it is tested and approved for protecting heating, air conditioning, and refrigeration equipment circuits.
Can the TED113050 replace a TEB111050 breaker?
Yes. Both are 50A, 1-pole breakers sharing the exact same physical E150 frame dimensions. The TED113050 simply offers a higher voltage and interrupting rating, making it a safe and direct upgrade for the TEB111050.
What is the high-interrupting capacity equivalent of the TED113050?
If your system requires a higher fault current rating than 14kAIC at 277VAC, the THED113050 is the direct high-interrupting alternative. It shares the same E150 frame and bolt-on mounting but provides increased short-circuit protection.
Can the TED113050 be reverse fed?
Yes, this breaker is suitable for reverse feed applications. Because it lacks a restrictive line or load orientation, supply power can be safely connected to either the top or bottom terminals.
Does the TED113050 provide ground fault or arc fault protection?
No, the TED113050 is a standard thermal-magnetic breaker providing only overload and short-circuit protection. It does not include built-in GFCI or AFCI capabilities.
