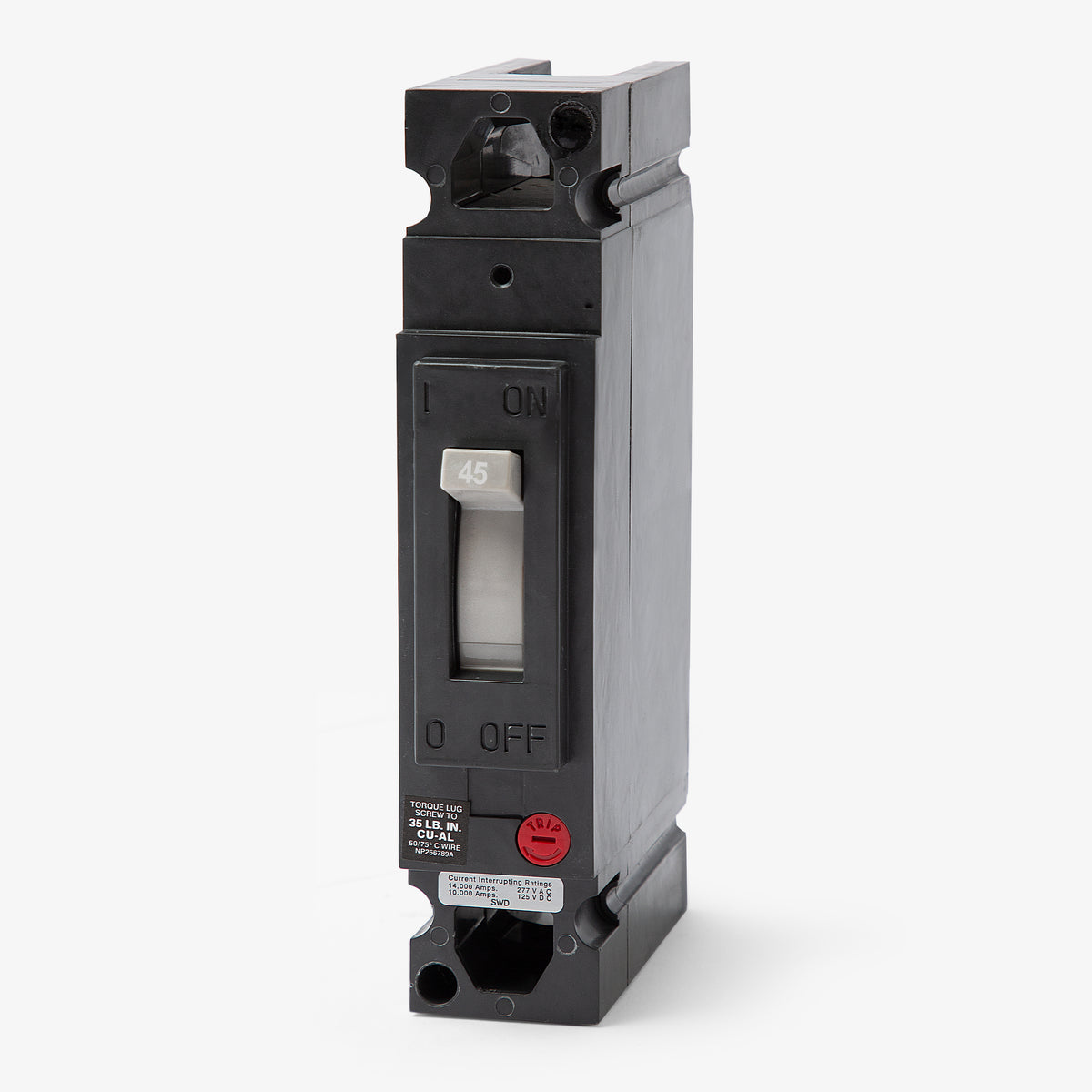

ABB / General Electric TED113045 Molded Case Circuit Breaker
- 45A
- 1 Pole
- Bolt-On
ABB / General Electric
TED113045
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED113045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED113045 - 45A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTED113040
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113060
60A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113030
30A 1 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the GE TED113045 is a 1-pole, 45A molded case circuit breaker from the legacy E150 frame family. It features a fixed thermal-magnetic trip unit for standard long-time and instantaneous (LI) protection. This bolt-on MCCB installs into GE A-Series and Spectra Series panelboards, providing a 14kAIC interrupting rating at 277VAC. It is HACR rated and features a non-interchangeable trip mechanism for dependable branch circuit defense.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TED |
| Amperage | 45A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |

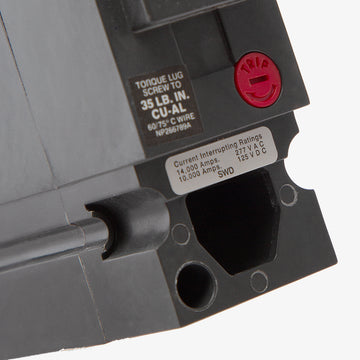

| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersIs the TED113045 branded as GE or ABB?
ABB acquired GE Industrial Solutions, so this E150 frame breaker may be branded as either ABB or General Electric. Both versions are identical in form, fit, and function.
What panelboards are compatible with the TED113045?
This bolt-on breaker is designed for installation in GE A-Series and GE Spectra Series panelboards.
What wire sizes do the factory lugs on the TED113045 accept?
The standard lugs accept 14 to 3 AWG copper wire or 12 to 1 AWG aluminum wire.
What does the LI trip function indicate on this breaker?
The LI designation means the breaker features a fixed thermal-magnetic trip unit. It provides Long-Time thermal protection against overloads and Instantaneous magnetic protection against short circuits.
Is the TED113045 suitable for reverse feed applications?
Yes, GE E150 frame breakers, including the TED series, are suitable for reverse feed installations.
Can this breaker be used in DC circuits?
Yes, the TED113045 is rated for 125VDC applications and provides a 10kA interrupting capacity at that voltage.
Is the TED113045 HACR rated?
Yes, this 45-amp E150 frame breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
What is the difference between TED113045 and TED113045WL?
The WL suffix in the GE catalog number simply indicates that the breaker is supplied with factory-installed copper/aluminum line and load lugs.
