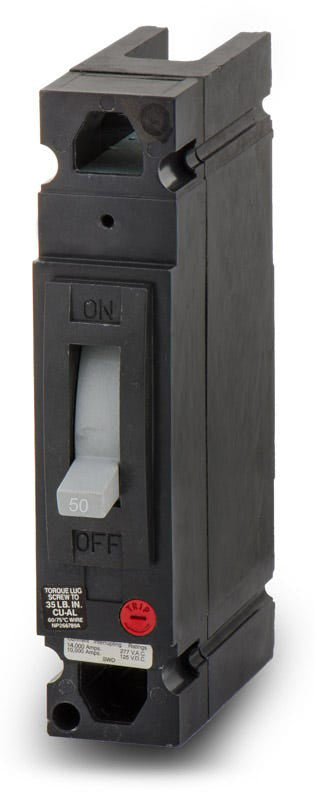

ABB / General Electric TED111050 Molded Case Circuit Breaker
- 50A
- 1 Pole
- Bolt-On
ABB / General Electric
TED111050
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED111050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED111050 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTED113045
45A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113060
60A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113040
40A 1 Pole Molded Case Circuit Breaker
Description
Designed for commercial and industrial power distribution, this 50A single-pole E-frame device delivers robust thermal-magnetic protection. It mounts into GE A-Series and Spectra panelboards, serving as a reliable upgrade for older installations. Serving as a functional replacement for the discontinued TEB111050, it features a 14kAIC rating at 120VAC and includes non-interchangeable trip units with reverse feed capability.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED111050-R |
| Series | TED |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 10kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Lugs (TCAL14) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the TED111050 circuit breaker?
This bolt-on breaker is designed for installation in GE A-Series panelboards and GE Spectra Series panelboards and switchboards.
Can the TED111050 replace older TEB series breakers?
Yes, the TED111050 serves as a direct functional replacement for the discontinued TEB111050. It shares the same physical dimensions and mounting configuration within the GE E150 frame line.
What does the WL suffix mean on GE TED series breakers?
The WL suffix on catalog numbers like TED111050WL indicates that the breaker is factory-equipped with copper/aluminum load lugs. Standard TED111050 breakers typically include these lugs for bolt-on applications.
Is the TED111050 suitable for reverse feed applications?
Yes, GE E150 line breakers, including the TED111050, feature a non-interchangeable trip design that is fully rated for reverse feed installations.
What frame size is the TED111050?
It belongs to the GE E150 line of molded case circuit breakers, which features a maximum frame rating of 150 amps.
What type of load lugs are included with the TED111050?
This breaker typically includes TCAL14 load lugs, which accommodate 14 to 3 AWG copper (Cu) or 12 to 1 AWG aluminum (Al) conductors.
