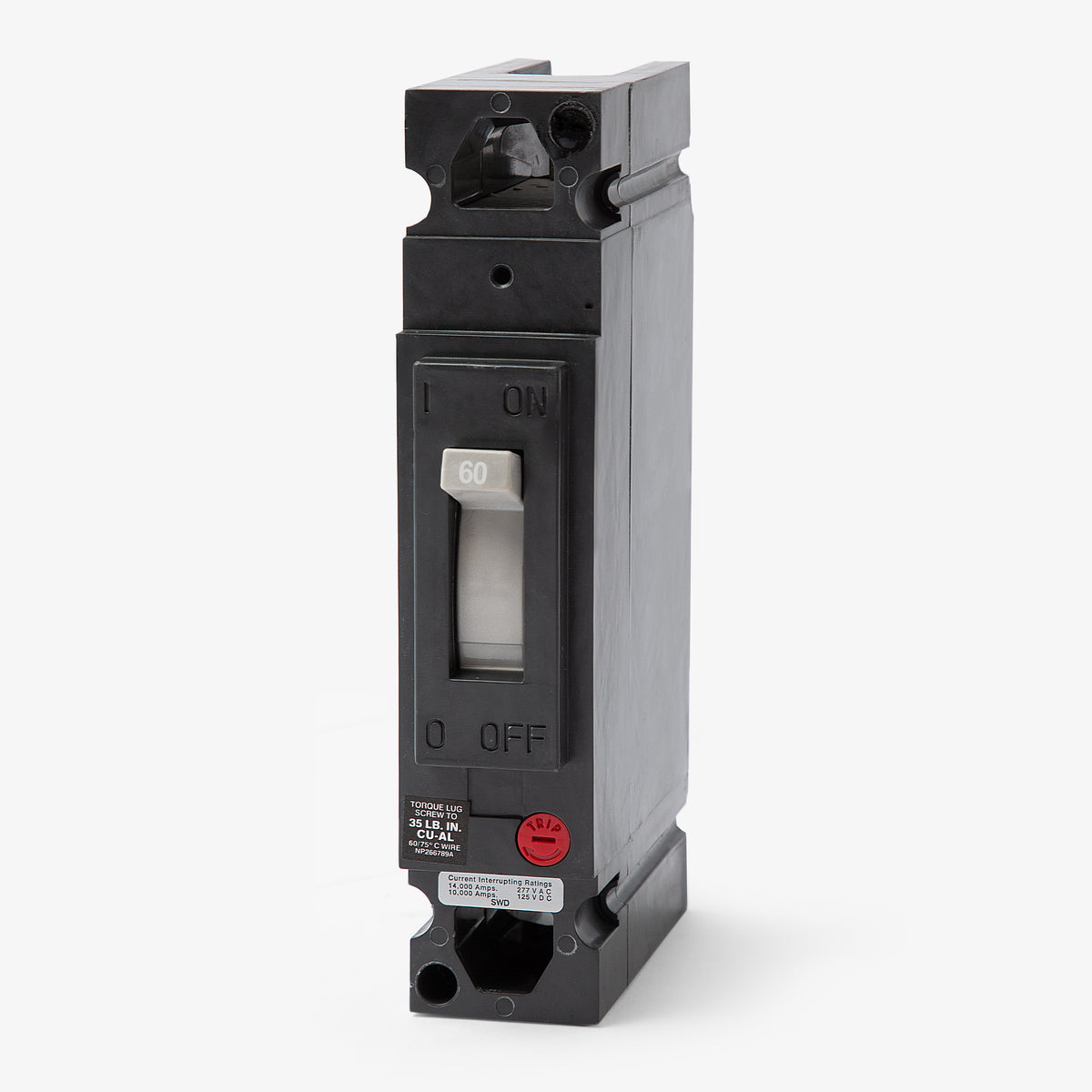

ABB / General Electric TED113060 Molded Case Circuit Breaker
- 60A
- 1 Pole
- Bolt-On
ABB / General Electric
TED113060
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED113060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED113060 - 60A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTED113045
45A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113040
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113030
30A 1 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the GE TED113060 is a 1-pole molded case circuit breaker rated for 60 amps. This E-frame breaker provides dependable thermal-magnetic protection for branch circuits, ensuring safety across demanding electrical environments. Designed for secure installation, it mounts into GE A-Series and Spectra Series panelboards. The bolt-on connection ensures a stable, high-retention fit for continuous operation in commercial facilities.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TED |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included (TCAL12) |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhich panelboards are compatible with the TED113060 circuit breaker?
The TED113060 is an E-frame (E150 line) bolt-on circuit breaker designed for use in GE A-Series and Spectra Series panelboards. It is commonly used in commercial and industrial power distribution systems, switchboards, and motor control centers.
Will I receive an ABB or GE branded TED113060 breaker?
You may receive either an ABB or GE branded unit. ABB acquired GE Industrial Solutions in 2018, and while the branding on the label or packaging may vary, the TED113060 breaker itself remains identical in form, fit, function, and specifications.
Can the TED113060 be used in DC applications?
Yes, the TED113060 is rated for DC applications. It has a maximum voltage rating of 125VDC with an interrupting capacity of 10kAIC at that voltage, making it suitable for specific direct current control and distribution circuits.
What is the recommended lug torque for the TED113060 breaker?

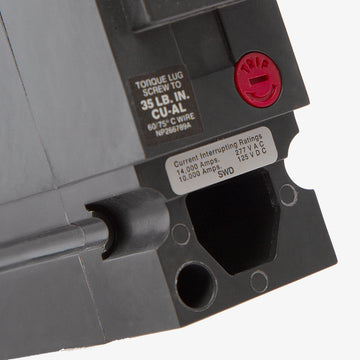

Torque specifications depend on the wire size and specific lug installed. For standard E150 frame lugs, the recommended tightening torque is typically 35 lb-in for 14-10 AWG wire, and increases for larger gauges. Always refer to the breaker's side label or manufacturer instructions for exact torque values based on your specific wire gauge.
Does the TED113060 provide GFCI or AFCI protection?
No, the TED113060 is a standard thermal-magnetic circuit breaker featuring fixed long-time and instantaneous (LI) trip functions. It does not provide Ground Fault Circuit Interrupter (GFCI) or Arc Fault Circuit Interrupter (AFCI) protection.
Does the TED113060 mount to a standard DIN rail?
No, the TED113060 is a bolt-on molded case circuit breaker. It is designed to be bolted directly to the busbar chassis of compatible GE panelboards and does not support DIN rail mounting.
