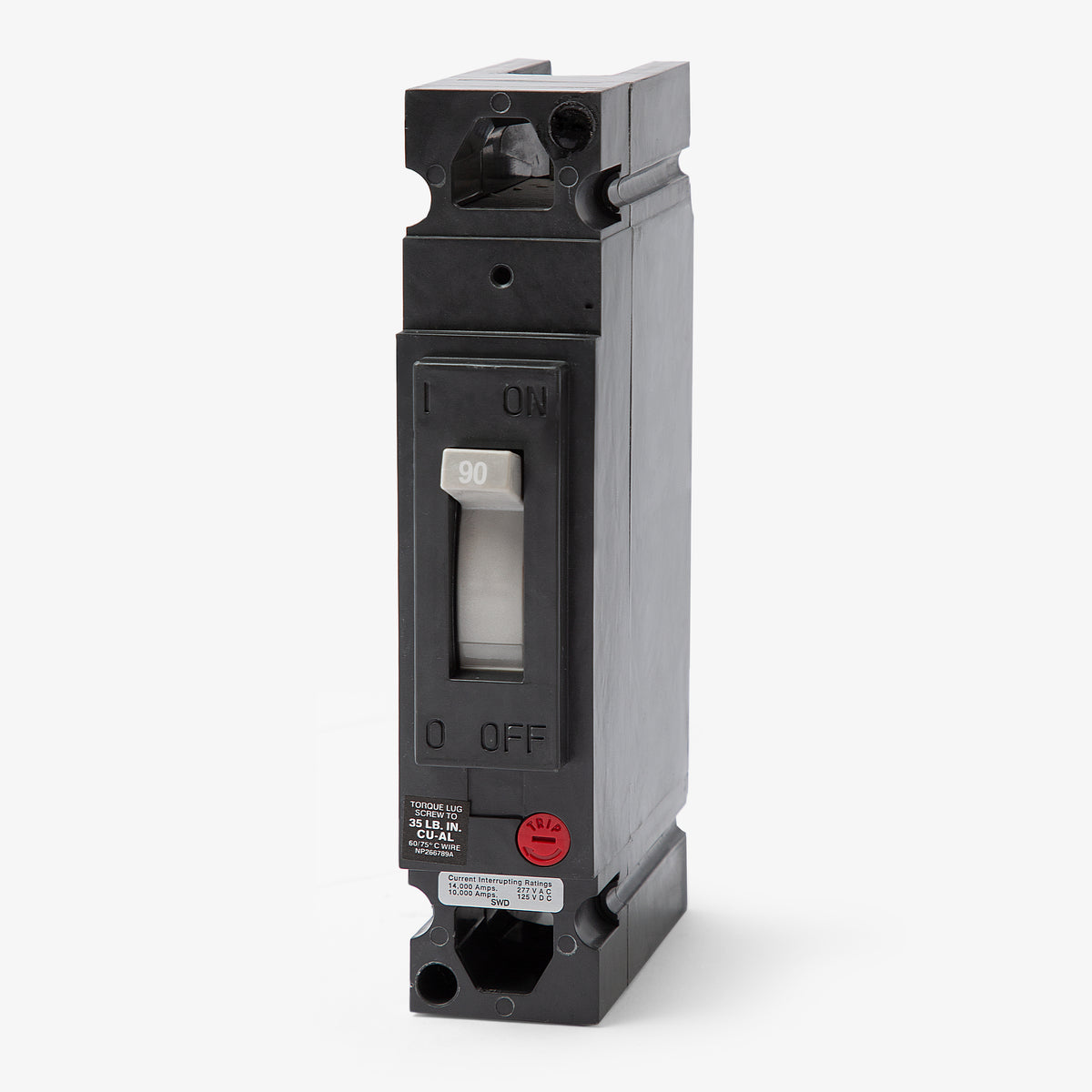

ABB / General Electric TED113090WL Molded Case Circuit Breaker
- 90A
- 1 Pole
- Unit Mount
ABB / General Electric
TED113090WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED113090WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED113090WL - 90A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTED113035WL
35A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113030WL
30A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113020WL
20A 1 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty applications, the GE TED113090WL is a 1-pole, 90A molded case circuit breaker. Operating within the E150 line, it delivers reliable thermal-magnetic protection for commercial and industrial facilities requiring robust branch circuit management. This unit-mount breaker comes equipped with line and load lugs (TCAL12A) for flexible wiring. It installs easily into individual enclosures, motor control centers, and switchboards.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113090WL |
| Series | TED |
| Amperage | 90A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |

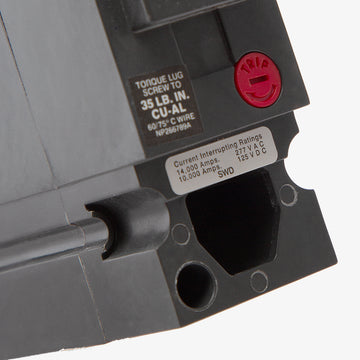

| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|

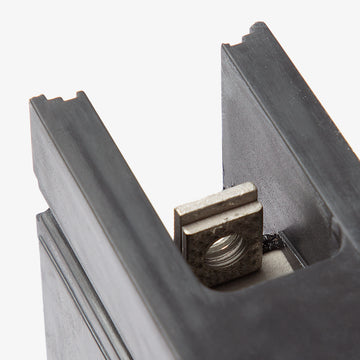

| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 2/0 AWG (Cu), 4 AWG - 2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Line & Load Lugs (TCAL12A) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
5 answersWhat does the WL suffix mean in the TED113090WL catalog number?
The WL suffix indicates that the circuit breaker comes factory-equipped with copper/aluminum (Cu/Al) line and load lugs.
Is the GE TED113090WL suitable for reverse feed applications?
Yes, all GE TEB, TED, and THED molded case circuit breakers are suitable for reverse feed installations.
Is this 90-amp TED breaker HACR rated?
Yes, GE TED frame circuit breakers 15 amps and higher, including this 90-amp model, are UL listed as HACR type for use with heating, air conditioning, and refrigeration equipment.
What is the terminal temperature rating for this 90A breaker?
GE TED breakers rated 100 amps and below carry a dual 60/75 degree Celsius terminal temperature rating.
What types of equipment is the TED113090WL compatible with?
This unit mount, feed-thru circuit breaker is designed for installation in individual enclosures, switchboards, and motor control centers.
