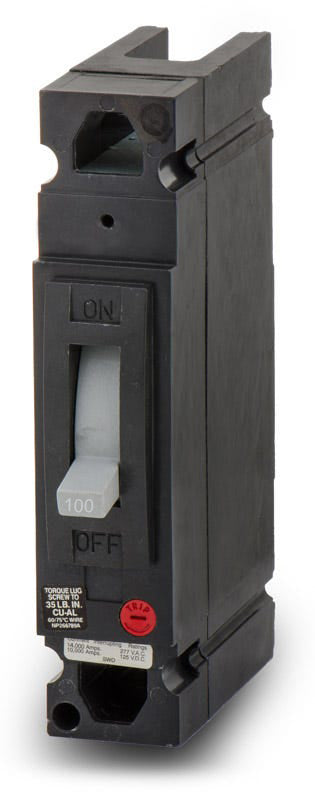

ABB / General Electric TED113100WL Molded Case Circuit Breaker
- 100A
- 1 Pole
- Unit Mount
ABB / General Electric
TED113100WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED113100WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED113100WL - 100A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTED113035WL
35A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113030WL
30A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113020WL
20A 1 Pole Molded Case Circuit Breaker
Description
Designed for versatile power distribution, the GE TED113100WL is a 1-pole, 100A molded case circuit breaker. As part of the legacy E-frame family, it provides essential overload and short-circuit protection for demanding commercial and industrial environments. Featuring a unit-mount configuration, this breaker includes factory-installed line and load lugs (TCAL15).Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113100WL |
| Series | TED |
| Amperage | 100A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Individual Enclosures, Switchboards |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
8 answersWhat does the WL suffix indicate on the TED113100WL catalog number?
In the GE E150 line, the WL suffix indicates that the circuit breaker comes factory-equipped with both line and load lugs for copper and aluminum wire.
Which panelboards are compatible with the TED113100WL circuit breaker?
This E-frame breaker is designed for use in GE A-Series panelboards, as well as compatible switchboards and individual enclosures.
Can the TED113100WL be reverse fed?
Yes, all GE TEB, TED, and THED series molded case circuit breakers are suitable for reverse feed applications.
Is the TED113100WL rated for heating, air conditioning, and refrigeration (HACR) equipment?
Yes, GE E150 line breakers 15 amps and above, including this 100A model, are HACR rated for use with HVACR equipment.
What are the wire size requirements for the TED113100WL lugs?
The factory-installed lugs accept 3 AWG to 3/0 AWG copper conductors, or 1 AWG to 3/0 AWG aluminum conductors.
How is the TED113100WL installed in an electrical system?
This is a unit-mount, feed-thru circuit breaker. It bolts directly to the mounting pan or bus in GE A-Series panelboards, switchboards, and individual enclosures rather than snapping into place.
Is the TED113100WL suitable for direct current (DC) systems?
Yes, in addition to its 277VAC rating, this breaker is rated for 125VDC systems, providing 10kA of interrupting capacity for DC applications.
How does the TED113100WL handle overcurrent and short-circuit faults?
It utilizes a fixed thermal-magnetic trip unit. The thermal element provides long-time overload protection, while the magnetic element delivers instantaneous short-circuit protection.
