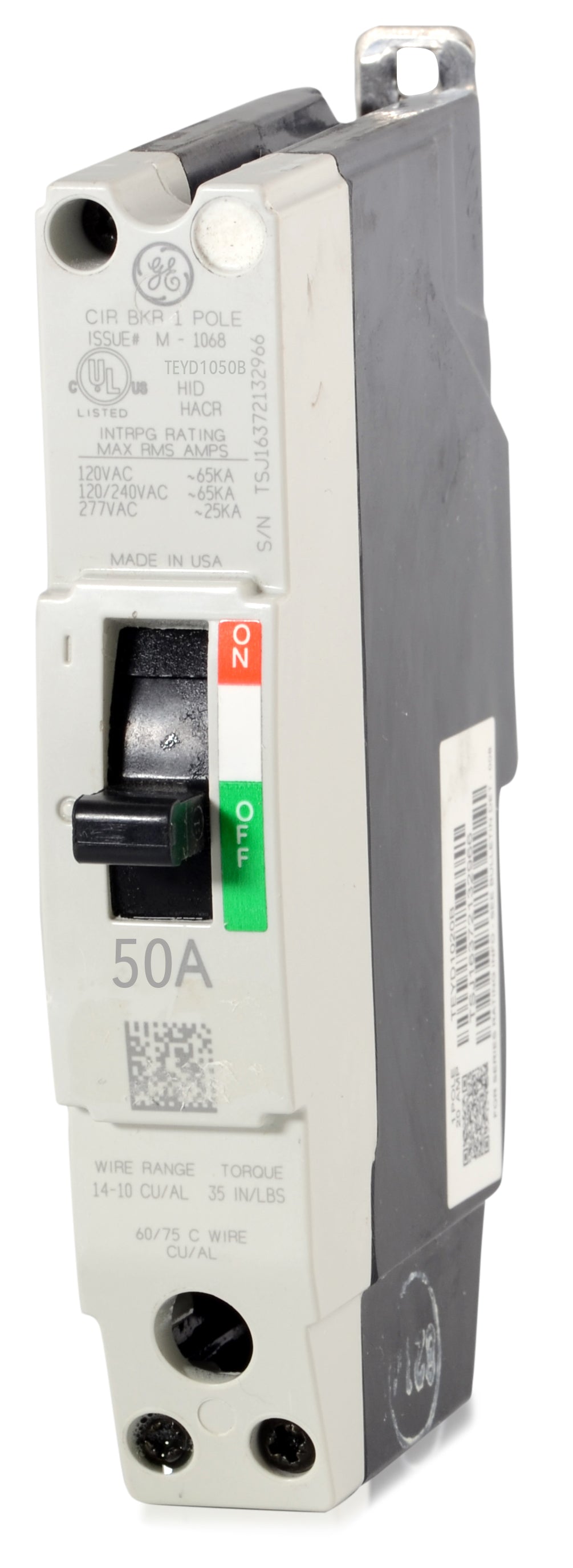

ABB / General Electric TEYD1050B Miniature Circuit Breaker
- 50A
- 1 Pole
- Bolt-On
ABB / General Electric
TEYD1050B
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYD1050B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYD1050B - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEYD1020B
20A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTEYD1015B
15A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTEYD2050B
50A 2 Pole Miniature Circuit Breaker
Description
Designed for 277V and 120/240V systems, the GE TEYD1050B is a 1-pole, 50A bolt-on circuit breaker. It utilizes a quick-make, quick-break mechanism to ensure reliable operation under fault conditions. Engineered to mount into GE A-Series lighting panels, this device serves as a dependable solution for commercial power distribution. It provides a 25kAIC rating at 277V and is fully HACR and HID rated, making it ideal for HVAC equipment and high-intensity discharge lighting circuits.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYD1050B |
| Series | TEYD |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 25kA @ 277VAC, 10kA @ 125VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panels |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the TEYD1050B circuit breaker?
This breaker is designed for use in GE A-Series lighting panelboards. It features a bolt-on mounting style that connects directly to the bus within these specific panels.
How does the TEYD series differ from standard TEY breakers?
The TEYD series offers a higher interrupting capacity than the standard TEY line. While standard TEY breakers are rated for 14kAIC at 277VAC, the TEYD1050B provides a 25kAIC rating at 277VAC for systems requiring higher fault current protection.
What wire sizes and materials are accepted by the lugs on this 50A breaker?
The factory-installed lugs on the TEYD1050B accept both copper and aluminum wiring ranging from 10 AWG to 4 AWG.
Is this breaker manufactured by ABB or General Electric?
ABB acquired GE Industrial Solutions, so this breaker may be branded as either ABB or General Electric. The TEYD1050B catalog number and physical specifications remain identical regardless of the brand name printed on the label.
Does this breaker require a separate mounting base for installation?
When installed in a compatible GE A-Series panelboard, it bolts directly to the panel bus. However, if you are using it in a unit-mount or lug-to-lug application, a separate TEY mounting base is required.
