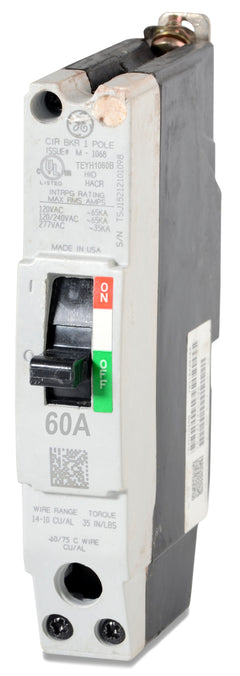

ABB / General ElectricTEYH1060B
Free Shipping Over $99

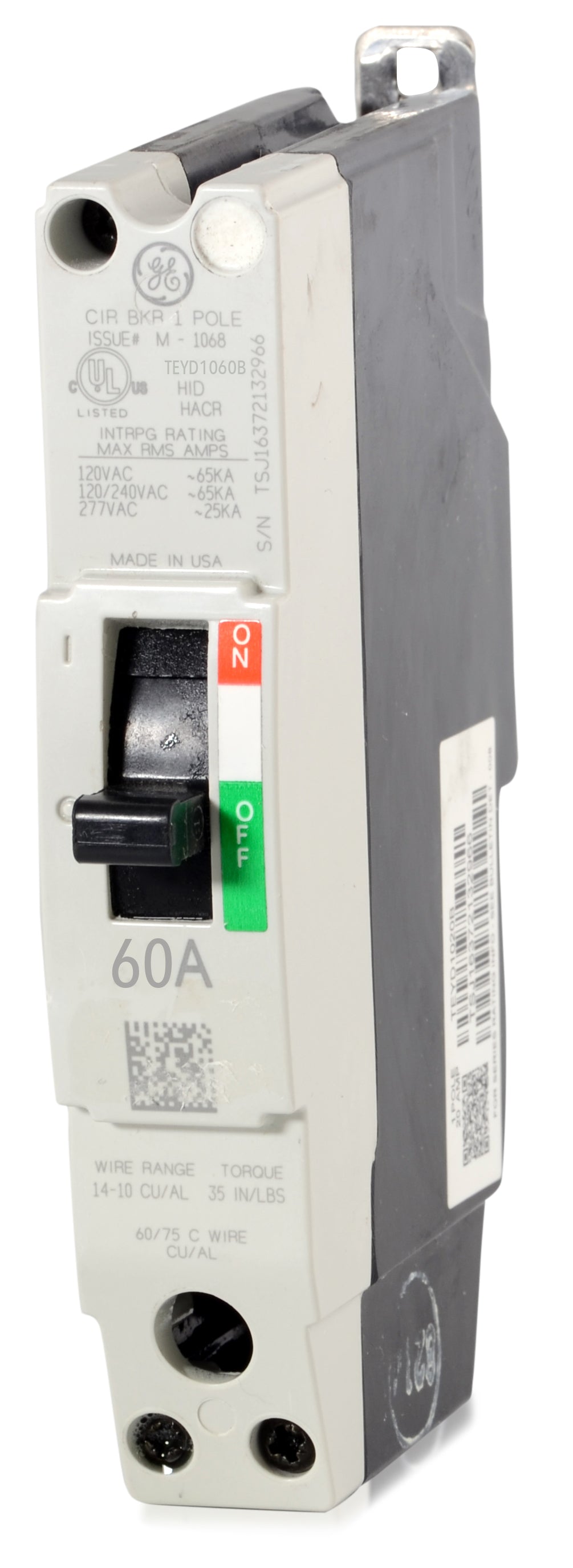

ABB / General Electric TEYD1060B Miniature Circuit Breaker
- 60A
- 1 Pole
- Bolt-On
ABB / General Electric
TEYD1060B
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYD1060B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYD1060B - 60A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEYD1035B
35A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTEYD1020B
20A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTEYD1015B
15A 1 Pole Miniature Circuit Breaker
Description
A reliable choice for commercial facilities, the GE TEYD1060B is a 1-pole, 60A miniature circuit breaker. It features a fixed thermal-magnetic trip unit to protect critical infrastructure from electrical faults. This component is specifically designed to install into GE A-Series panelboards, utilizing a secure bolt-on mounting style. With a 65kAIC rating at 120/240V and HACR certification, it easily handles the rigorous demands of modern heating, cooling, and lighting applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYD1060B |
| Series | TEYD |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 25kA @ 277VAC, 10kA @ 125VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the TEYD1060B circuit breaker?
This bolt-on breaker is designed exclusively for installation in GE A-Series lighting panelboards, including Pro-Stock and Type AS models.
What is the difference between GE TEYD, TEY, TEYF, TEYH, and TEYL breakers?
These breakers share the same physical dimensions and mount in A-Series panelboards, but they feature different short-circuit interrupting ratings. The TEYD series provides 25kAIC at 277VAC, while the TEY (14kAIC), TEYF (18kAIC), TEYH (35kAIC), and TEYL (65kAIC) offer alternative interrupting capacities for selective coordination.
Can the TEYD1060B be used in direct current (DC) systems?
Yes, this breaker is rated for use in DC applications up to 125VDC, where it provides an interrupting capacity of 10kAIC.
Is the TEYD1060B a current-limiting circuit breaker?
Yes, the TEYD series features a current-limiting construction designed for a quick response to short-circuit level faults. This helps simplify upstream selective coordination and provides enhanced arc flash protection.
How does the TEYD1060B mount inside the panelboard?
It features a bolt-on connection that fastens directly to the busbar of a GE A-Series panelboard, ensuring a secure, high-reliability mechanical and electrical connection. It does not mount to standard DIN rails or plug-on load centers.
Does the TEYD1060B provide arc fault or ground fault protection?
No, this is a standard thermal-magnetic circuit breaker designed for overload and short-circuit protection. It does not include AFCI (Arc Fault Circuit Interrupter) or GFCI (Ground Fault Circuit Interrupter) functionality.
