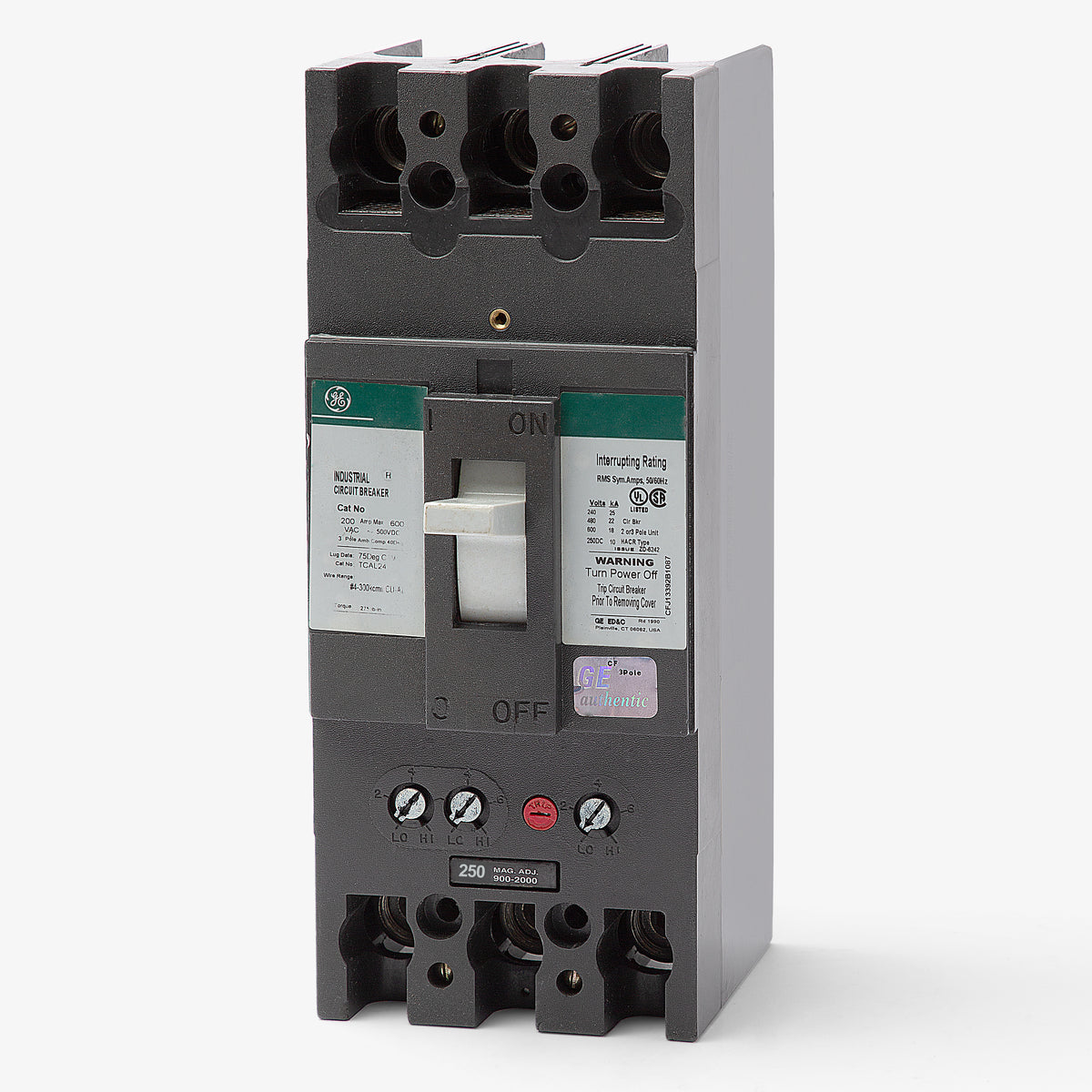

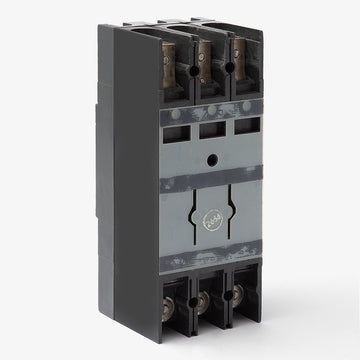

ABB / General Electric TFJ236250 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Bolt-On
ABB / General Electric
TFJ236250
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFJ236250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFJ236250 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTFJ236200
200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236175
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236150
150A 3 Pole Molded Case Circuit Breaker
Description
The TFJ236250 is a 3-pole, 250A MCCB from GE's legacy F-Frame family. It provides dependable long-time and instantaneous (LI) protection for commercial electrical systems. This bolt-on breaker installs into GE A-Series panelboards, switchboards, and motor control centers. It serves as a replacement for older SF250 models. Featuring a thermal-magnetic trip unit, it delivers a 22kAIC rating at 480VAC. The device is reverse feed capable, HACR rated, and accepts 250-300 kcmil copper wiring.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236250 |
| Series | TFJ |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TFJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 250 kcmil - 300 kcmil (Cu Only) |
| Max Wire | 300 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat equipment is compatible with the TFJ236250 circuit breaker?
This F-Frame breaker is designed for installation in GE A-Series panelboards, Spectra Series panelboards, switchboards, and motor control centers.
Can the TFJ236250 be used to replace older GE F-Frame breakers?
Yes, as part of the legacy GE F-Frame family, the TFJ236250 can serve as a direct replacement for older or obsolete models with the same physical footprint, including older SF250 series breakers.

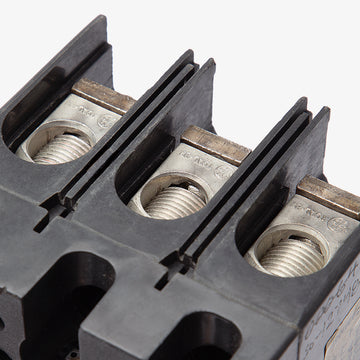

What wire sizes and materials are accepted by the factory lugs on this breaker?
The standard lugs on the TFJ236250 accept 250 kcmil to 300 kcmil copper (Cu) wire only. Aluminum wiring is not supported with the factory-installed terminal configuration.
What does the LI trip function code indicate for this breaker?
The LI designation means the thermal-magnetic trip unit provides Long-Time (L) protection for sustained overloads and Instantaneous (I) protection for immediate tripping during severe short circuits.
Are the trip settings on the TFJ236250 adjustable?
This breaker features a thermal-magnetic trip unit with a fixed thermal element for overload protection and an adjustable magnetic element, allowing electricians to fine-tune the instantaneous short-circuit response.
Is this breaker suitable for direct current (DC) applications?
Yes, in addition to standard AC systems, the TFJ236250 is rated for DC applications up to 500VDC, making it viable for industrial DC control circuits and specialized distribution systems.

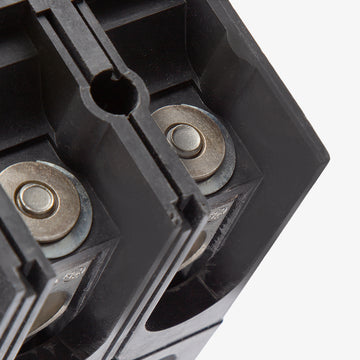

How is the TFJ236250 secured within a panelboard?
It utilizes a bolt-on mounting style, which requires bolting the breaker directly to the panelboard bus. This provides a secure, low-resistance connection that is highly resistant to mechanical vibration.
