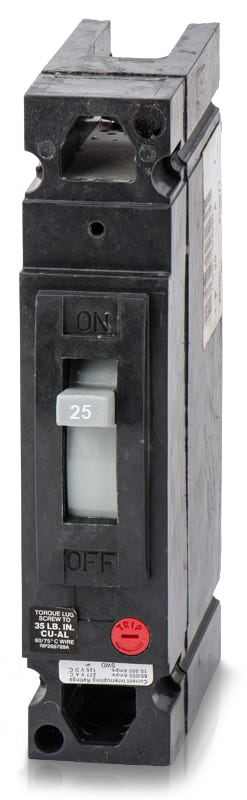

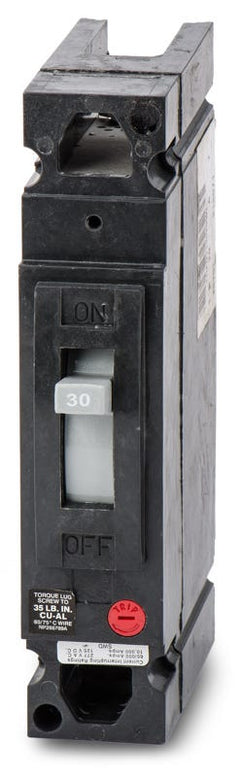

ABB / General Electric THED113025 Molded Case Circuit Breaker
- 25A
- 1 Pole
- Bolt-On
ABB / General Electric
THED113025
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THED113025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THED113025 - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHED113020
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED113015
15A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED124025
25A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial distribution, the GE THED113025 is a 1-pole, 25A bolt-on molded case circuit breaker from the E150 frame family. It provides robust overcurrent protection for 277VAC systems requiring high-tier performance. This breaker mounts into GE A-Series panelboards and lighting panels. It also serves as an exact, higher-interrupting replacement for the older TED113025 model. With a high interrupting capacity of 65kAIC, it ensures superior fault protection.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THED |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 277VAC, 20kA @ 125VDC |
| Frame Type | E |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Lighting Panels |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
9 answersWhich panelboards are compatible with the THED113025?
This breaker is designed for use in GE A-Series panelboards and GE lighting panels. It mounts directly to the bus using a bolt-on connection.
Will this breaker fit in a standard residential Q-Line load center?
No. The THED113025 is an E150 frame molded case circuit breaker built for commercial and industrial panelboards. It will not fit in residential load centers that require THQL or THQP plug-in breakers.
Can the THED113025 replace a TED113025 breaker?
Yes. The THED series shares the exact physical E150 frame dimensions as the TED series but offers a higher interrupting capacity. It serves as a direct, higher-rated replacement for the TED113025.
What does the "H" in the THED prefix indicate?
The "H" designates a high interrupting capacity version of the standard TED breaker. The THED113025 provides a 65kAIC rating at 277VAC, which is significantly higher than standard TED models.
Is this breaker rated for direct current applications?
Yes, the THED113025 is rated for 125VDC systems and provides up to 20kAIC interrupting capacity for DC fault currents.
What are the lug torque specifications for this breaker?
Torque requirements depend on the conductor size. For 14 to 10 AWG wire, apply 35 inch-pounds. For 8 to 3 AWG wire, apply 100 inch-pounds. For 2 to 1 AWG wire, apply 150 inch-pounds. When using aluminum conductors, apply a manufacturer-approved joint compound before terminating.
Is the THED113025 rated for switching duty (SWD)?
No. In the GE E150 frame series, only the 15-amp and 20-amp single-pole breakers carry the SWD rating for switching fluorescent lighting loads. The 25-amp THED113025 does not have an SWD rating.
Does this breaker carry a HACR rating?
Yes, all GE E150 frame breakers 15 amps and above, including the THED113025, are UL listed as HACR type for use with heating, air conditioning, and refrigeration equipment.
Can the trip settings on the THED113025 be adjusted in the field?
No. This breaker features a fixed thermal magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip functions are factory set and non-interchangeable.
