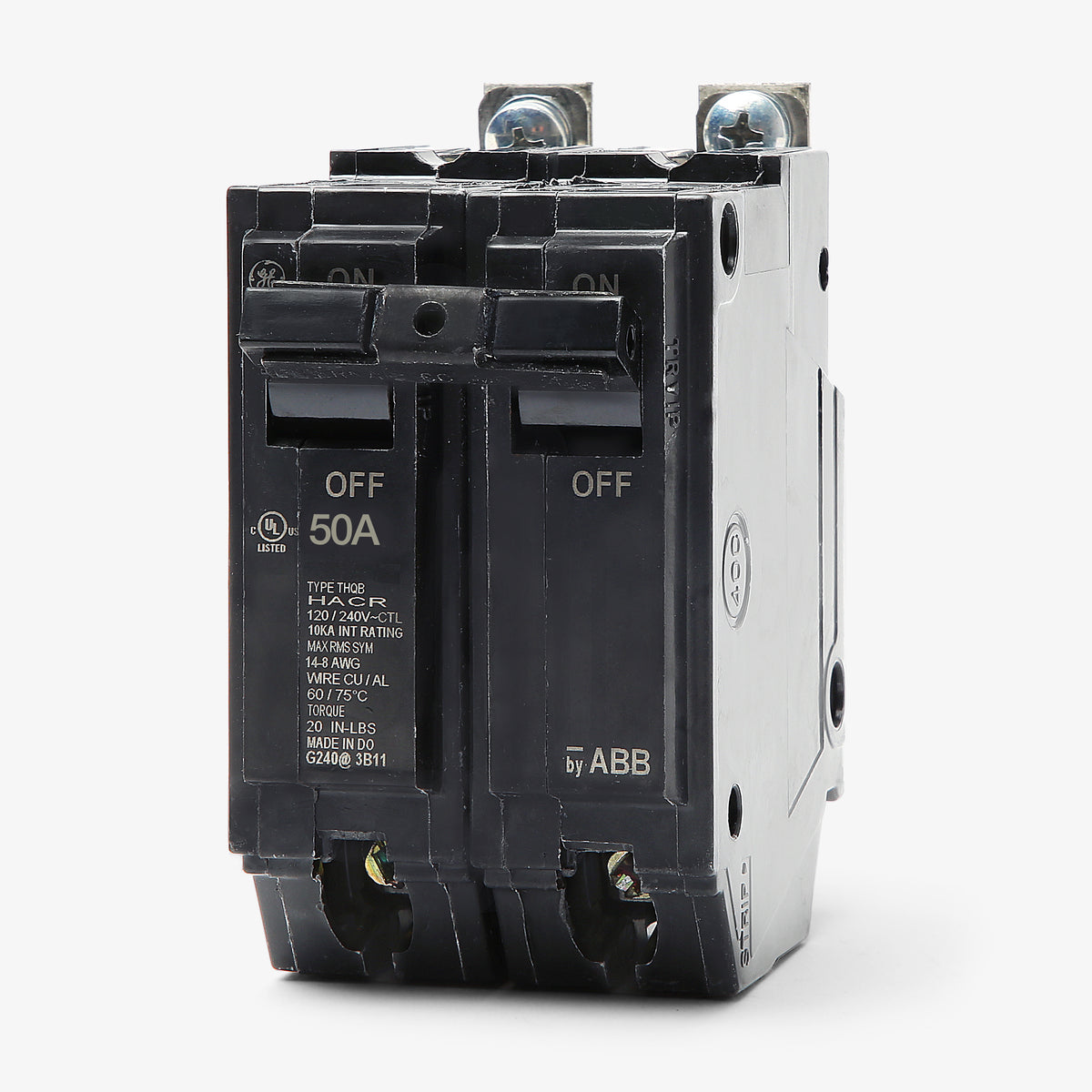

ABB / General Electric THQB2150 Miniature Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2150
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2150 - 50A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB2150 - 50A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2150 |
| Series | THQB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQB2150 - 50A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2150-R |
| Series | THQB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQB2145
45A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2160ST1
60A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2140
40A 2 Pole Miniature Circuit Breaker
Description
Engineered for heavy-duty commercial and industrial applications, this 50-amp miniature breaker provides dependable thermal-magnetic protection. It mounts into GE A-Series panelboards and AQ lighting panels, utilizing a bolt-on design for maximum stability in high-vibration environments. The two-pole configuration includes quick-make/quick-break mechanisms to extend contact life. Rated at 10kAIC for 120/240VAC systems, the unit is also HACR certified for HVAC motor loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2150 |
| Series | THQB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Product FAQs
8 answersWhat panels are compatible with the THQB2150 circuit breaker?
This breaker is designed for use in standard GE A-Series panelboards and GE AQ lighting panels that require a bolt-on connection. It mounts directly to the panel bus.
What is the difference between a GE THQB and THQL breaker?
The THQB2150 is a bolt-on circuit breaker intended for commercial panels like the AQ lighting panel line. THQL breakers are plug-in style breakers typically used in residential PowerMark load centers. They are not interchangeable.
Why is the THQB2150 listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. Depending on the manufacturing date, new stock of this circuit breaker may carry GE branding, ABB branding, or a combination of both. The fit and function remain identical.
Is the THQB2150 HACR rated?
Yes, this breaker carries an HACR rating, making it suitable for use with heating, air conditioning, and refrigeration equipment motor loads.
Can I replace a THHQB2150 with a standard THQB2150?
The THHQB2150 is the 22kAIC version of this breaker. The THQB2150 is only rated for 10kAIC. You cannot replace a THHQB with a THQB unless the panel and circuit strictly require a 10kAIC maximum interrupt rating.
Can the THQB2150 be used for reverse feed applications?
Yes, standard GE Q-Line miniature breakers like the THQB series are suitable for reverse feed applications. They can be back-fed when installed according to local electrical codes.
What do the LI trip functions indicate on the THQB2150?
The LI designation means this thermal magnetic breaker provides Long-Time overload and Instantaneous short circuit protection. These standard trip settings are fixed and non-adjustable.

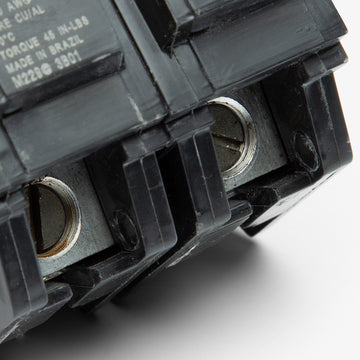

What wire sizes and materials are supported by the THQB2150 box lugs?
The factory box lugs accept conductors from 8 AWG up to 3 AWG. The terminals are dual-rated for both copper and aluminum wiring.
