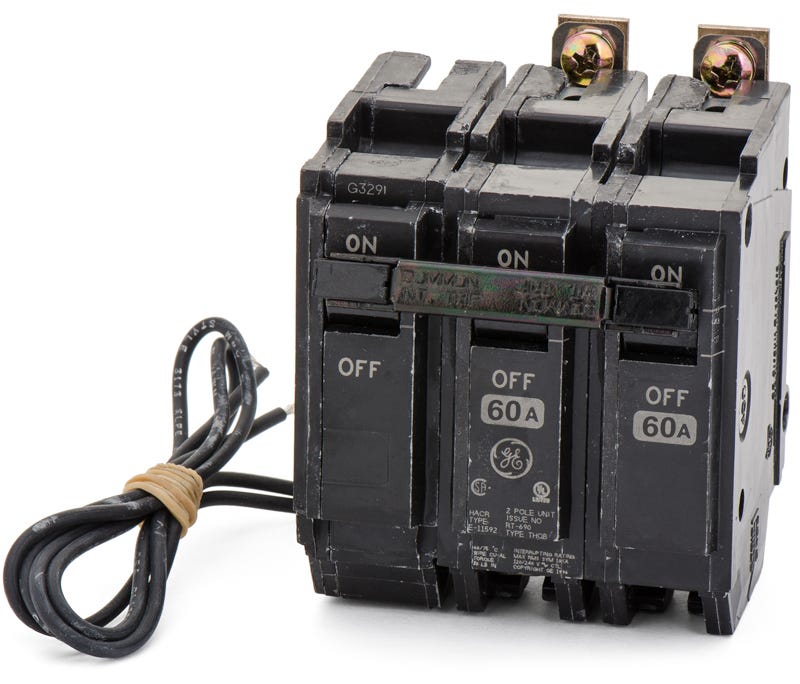

ABB / General Electric THQB2160ST1 Miniature Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2160ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2160ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2160ST1 - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB2160ST1 - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2160ST1 |
| Series | THQB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels, ReliaGear RQ Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THQB2160ST1 - 60A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2160ST1-R |
| Series | THQB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels, ReliaGear RQ Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHQB2180ST1
80A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2140ST1
40A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2190ST1
90A 2 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial applications, this Q-Line miniature breaker mounts into GE A-Series panelboards and ReliaGear RQ load centers. The 60-amp, two-pole unit includes a factory-installed 120-240VAC shunt trip mechanism, allowing for remote circuit disconnection. With a 10kA interrupting rating and HACR certification, it handles demanding HVAC loads while providing standard thermal-magnetic protection. Box lug terminals accept 8-3 AWG copper or aluminum wiring.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2160ST1 |
| Series | THQB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels, ReliaGear RQ Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the THQB2160ST1 circuit breaker?
This bolt-on Q-Line breaker is designed specifically for GE A-Series panelboards, GE AQ lighting panels, and ABB ReliaGear RQ panelboards. It will not fit standard residential plug-on load centers.
What functionality does the ST1 suffix add to this breaker?
The ST1 suffix designates a factory-installed 120V shunt trip mechanism. This allows the breaker to be tripped remotely via an external control signal, which is frequently required for emergency shutdown systems or fire alarm integration.
How does the bolt-on connection differ from standard plug-on breakers?
The THQB frame fastens directly to the panelboard bus using screws rather than stabbing onto the bus. This provides a secure, vibration-resistant connection that is standard for commercial and industrial lighting panels.
Can I substitute a THQL plug-on breaker with this THQB bolt-on breaker?
No. While they share similar electrical ratings within the Q-Line family, THQL breakers are plug-on and THQB breakers are bolt-on. The panelboard bus design dictates which mounting style is required.
Is there a difference between the ABB and GE versions of the THQB2160ST1?
No. Following ABB's acquisition of GE Industrial Solutions, the Q-Line breaker family continued under the same catalog numbers. The breaker maintains identical form, fit, and function regardless of whether the label reads GE or ABB.
How is the 120V shunt trip wired for remote operation?
The shunt trip coil requires an external 120V control voltage source. When the control circuit is closed by a remote switch or relay, the coil energizes and mechanically trips the breaker to open the primary circuit.
