ABB / General Electric TQDL21225 Molded Case Circuit Breaker
- 225A
- 2 Pole
- Plug-On
ABB / General Electric
TQDL21225
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQDL21225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

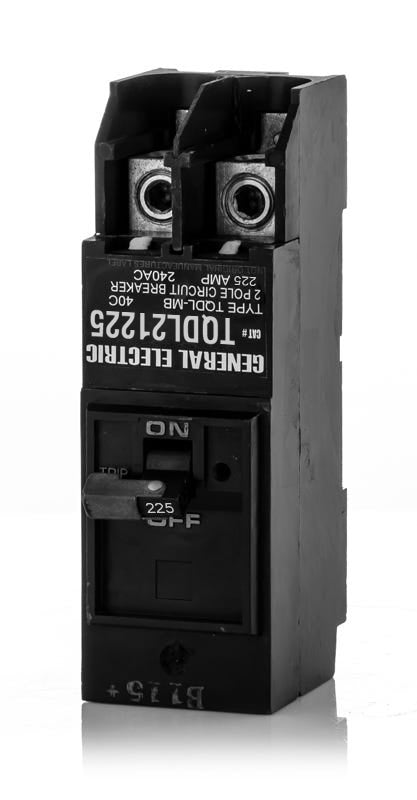

ABB / General Electric TQDL21225 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
ABB / General Electric TQDL21225 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQDL21225 |
| Series | TQDL |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, GE PowerMark Plus Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Internal Common Trip |
| Standards | UL 489, HACR |
| Approval | UL |
| Temp Rating | 60C/75C |
| Construction Features | Common Trip, HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
ABB / General Electric TQDL21225 - 225A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQDL21225-R |
| Series | TQDL |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, GE PowerMark Plus Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Internal Common Trip |
| Standards | UL 489, HACR |
| Approval | UL |
| Temp Rating | 60C/75C |
| Construction Features | Common Trip, HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTQDL21150
150A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQDL21125
125A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22225
225A 2 Pole Molded Case Circuit Breaker
Description
Built for reliable power distribution, the GE TQDL21225 is a 2-pole, 225A molded case circuit breaker. It uses thermal-magnetic trip elements to safeguard 120/240VAC systems. The plug-on unit installs into GE PowerMark Gold, PowerMark Plus, and ABB ReliaHome load centers. It accepts 1 AWG to 300 kcmil conductors via load-side lugs. For higher interrupting ratings, the THQDL21225 is a direct upgrade. Delivering 10kAIC protection, this Q-Line breaker includes an internal common trip.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQDL21225 |
| Series | TQDL |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, GE PowerMark Plus Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Internal Common Trip |
| Standards | UL 489, HACR |
| Approval | UL |
| Temp Rating | 60C/75C |
| Construction Features | Common Trip, HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersHow many panel spaces does the TQDL21225 require?
This double-wide breaker requires four 1-inch panel spaces, typically arranged as two slots across from two slots, in a compatible GE or ABB load center.
What is the difference between the TQDL21225 and THQDL21225?
The primary difference is the short circuit interrupting rating. The TQDL21225 has a standard 10kAIC rating at 120/240V, while the THQDL21225 features a higher 22kAIC rating. Both are 225A, 2-pole plug-on breakers with the exact same physical dimensions and panel footprint.
Can the TQDL21225 be used as a main breaker?
Yes, this 225A breaker is frequently used as a main breaker or a sub-feed main in compatible GE PowerMark Gold and PowerMark Plus load centers, provided the panel bus is rated for at least 225 amps and accepts the 4-space TQDL footprint.
Does the TQDL21225 feature an internal common trip?
Yes, it utilizes an internal common trip mechanism. If an overload or short circuit occurs on either leg, the internal linkage ensures both poles trip simultaneously to safely disconnect the entire 240V circuit.
Can I install the TQDL21225 in a Square D or Siemens panel?
No. The TQDL21225 is a GE and ABB Q-Line breaker and is strictly UL listed for use in compatible GE PowerMark Gold, GE PowerMark Plus, and ABB ReliaHome load centers. Installing it in other panel brands violates UL listings and electrical codes.
Is the TQDL21225 suitable for HVAC applications?
Yes, GE TQDL series breakers are HACR rated. This makes the TQDL21225 suitable for protecting heating, air conditioning, and refrigeration equipment that requires a 225A overcurrent protection device.
