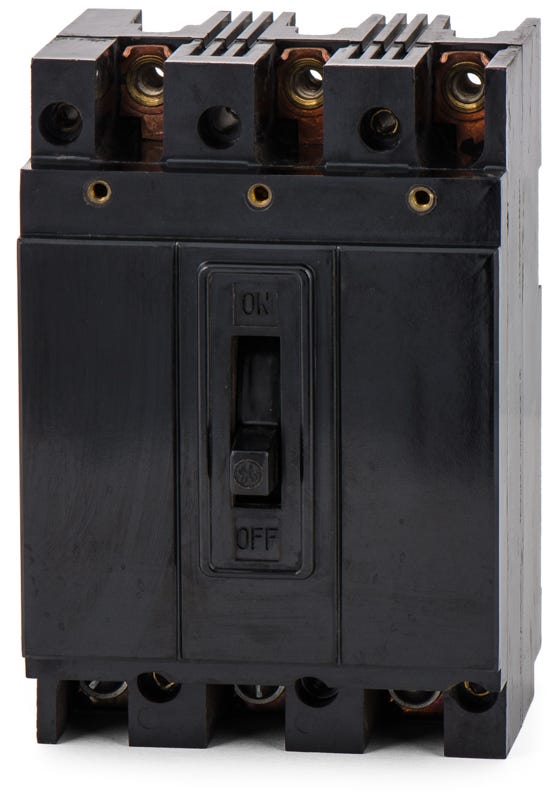

ABB / General Electric TE32100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
ABB / General Electric
TE32100
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TE32100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TE32100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
40A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTE132020
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the GE TE32100 delivers reliable 3-pole, 100-amp protection. This Q-Line MCCB safeguards 240VAC systems against overloads and short circuits. Designed for a secure fit, the bolt-on unit installs seamlessly into GE A-Series panelboards. It provides an exact match for existing setups and is replaced by the TEB132100 for upgrades. Equipped with a fixed thermal magnetic trip, it offers a 10 kAIC rating and includes standard lugs for immediate wiring.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TE32100-R |
| Series | TE |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 4 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip |
Product FAQs
6 answersWhat panelboard series is the TE32100 designed for?
This breaker is engineered specifically for use with General Electric A-Series panelboards.
Does the TE32100 plug into the busbar or bolt on?
This is a bolt-on circuit breaker. It requires a bolted connection to the busbar of a compatible GE A-Series panelboard, ensuring a secure contact for commercial and industrial applications.
What are the acceptable wire gauges for the TE32100 load lugs?
The included load side lugs accommodate 4 AWG to 3/0 AWG copper conductors or 1 AWG to 3/0 AWG aluminum conductors.
Are the trip settings on the TE32100 adjustable?
No, the TE32100 features a fixed thermal magnetic trip unit. Both the Long-Time and Instantaneous (LI) trip functions are factory set and cannot be adjusted in the field.
What frame family does the TE32100 belong to?
The TE32100 is built on the General Electric TE frame, which is part of the broader Q-Line family of molded case circuit breakers.
What type of protection does the TE32100 provide?
As a thermal magnetic breaker with LI functions, it provides thermal protection for continuous overloads (Long-Time) and magnetic protection for short circuits (Instantaneous).
