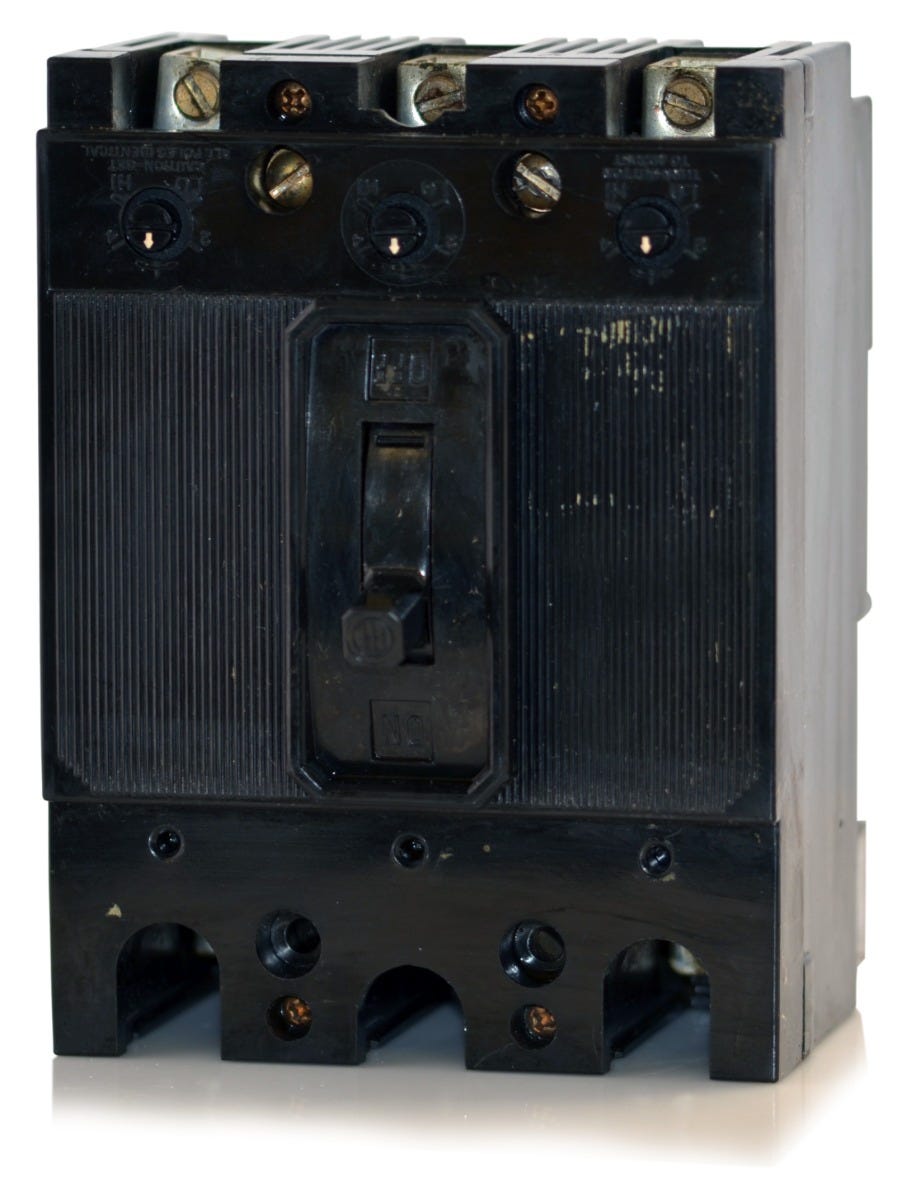

Siemens / ITE EF3A050 Motor Circuit Protector
- 50A
- 3 Pole
- Bolt-On
Siemens / ITE
EF3A050
Motor Circuit Protector
Brand
Siemens / ITE
SKU
EF3A050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens / ITE EF3A050 - 50A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Similar Items
5A 3 Pole Motor Circuit Protector
30A 3 Pole Motor Circuit Protector
25A 3 Pole Motor Circuit Protector
Description
Built for heavy-duty motor protection, the EF3A050 utilizes a magnetic-only trip mechanism to interrupt short circuits instantly. This 50-amp unit works alongside separate overload relays in industrial motor control circuits. It installs into legacy ITE and Siemens motor control centers and panelboards. For upgrades, the ED63A050 is the recommended replacement. Delivering up to 18kAIC at 240VAC, this E-frame breaker features an adjustable magnetic trip range. Lugs are not included.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | EF3A050-R |
| Series | EF |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC |
| Frame Type | EF |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs Not Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector |
