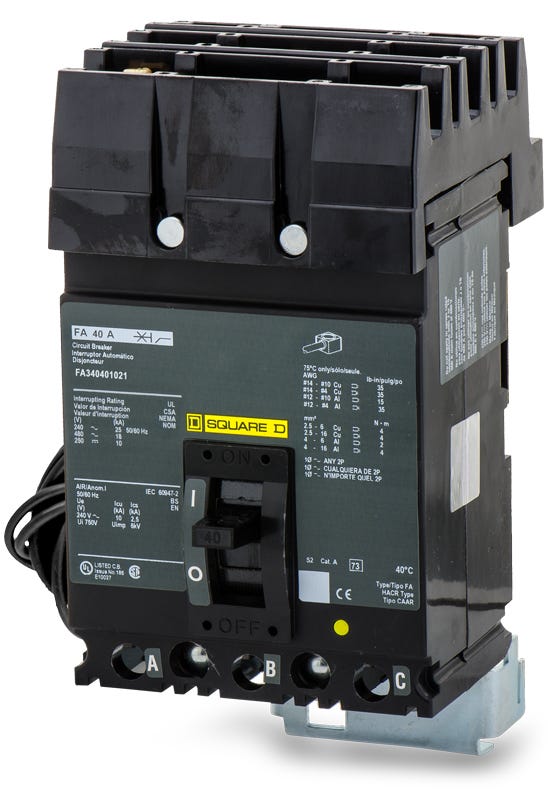

Schneider Electric FA34040-1021 Molded Case Circuit Breaker
- 40A
- 3 Pole
- I-Line
Schneider Electric
FA34040-1021
Molded Case Circuit Breaker
Brand
Schneider Electric
SKU
FA34040-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric FA34040-1021 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Built for advanced control, the FA34040-1021 is a 3-pole, 40A MCCB by Schneider Electric. It features a factory-installed 120-240VAC shunt trip, allowing users to remotely open the circuit for safety or automation. This F-frame device installs into I-Line panelboards and switchboards. It replaces legacy units and is superseded by the BDA34040Y (requires separate LV426843 shunt trip). Rated at 18 kAIC at 480VAC, it provides robust thermal-magnetic protection and includes load-side lugs.Specifications
| Brand | Schneider Electric |
|---|---|
| Part Number | FA34040-1021 |
| Series | FA |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | I-Line Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat does the -1021 suffix indicate on the FA34040-1021 circuit breaker?
The -1021 suffix designates that this breaker includes a factory-installed 120-240VAC shunt trip. This accessory allows the breaker to be tripped remotely for safety interlocks or automation purposes.
What is the modern replacement for the legacy FA34040-1021?
The legacy F-frame series is superseded by the PowerPact B-frame series. The direct I-Line replacement is the BDA34040Y. Because the modern B-frame does not use the -1021 suffix, you must add a separate field-installable shunt trip accessory, such as the LV426843, to match the original functionality.
What type of panels accept the FA34040-1021 breaker?
This breaker features an I-Line style plug-in connection on the line side. It is designed exclusively for installation in Square D and Schneider Electric I-Line panelboards and switchboards. It will not fit standard load centers or bolt-on panelboards.
What wire sizes are accepted by the load side lugs on the FA34040-1021?
The standard lugs accept 14 AWG to 1/0 AWG copper wire, or 12 AWG to 1/0 AWG aluminum wire.
Can the FA34040-1021 be used in DC power systems?
Yes, this thermal-magnetic breaker is rated for use on DC systems up to 250VDC. When applied in DC environments, it provides a maximum interrupting capacity of 10kA.
Are the trip settings adjustable on the FA34040-1021?
No, this breaker features a fixed thermal and fixed magnetic trip unit. Both the long-time overload protection and the instantaneous short-circuit protection are factory set and cannot be adjusted in the field.
