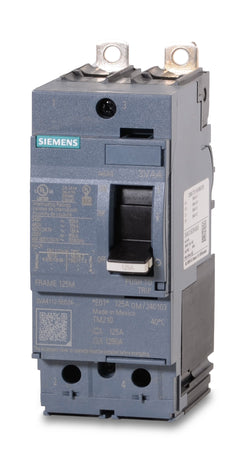

Siemens 3VA4110-5ED24-0AA0 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Siemens
3VA4110-5ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4110-5ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4110-5ED24-0AA0 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
90A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Providing elevated fault protection, this 100A, 2-pole molded case circuit breaker features a high interrupting capacity for commercial facilities. It utilizes a fixed thermal-magnetic trip unit to supply dependable LI defense against electrical overloads. Engineered for secure bolt-on connections, it integrates into Siemens P1, P2, and P3 panelboards. As the designated substitute for the discontinued HED42B100, it delivers an impressive 85kAIC at 240V and 35kAIC at 480V.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4110-5ED24-0AA0 |
| Series | 3VA4 |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 85kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, Siemens P2 Panelboards, Siemens P3 Panelboards, Siemens Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, EAC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Current Limiting |
Product FAQs
6 answersWhich panelboards are compatible with the 3VA4110-5ED24-0AA0 breaker?
This bolt-on breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as Siemens switchboards. Installation requires the appropriate mounting strap kit specific to the panelboard type.
What wire sizes and materials are accepted by the lugs on this breaker?
The factory-installed lugs accept 8 AWG to 3/0 AWG copper or aluminum conductors. Always verify the required torque specifications printed on the breaker label before terminating the wires.
Can the trip settings be adjusted on the 3VA4110-5ED24-0AA0?
No, this breaker features a thermal-magnetic trip unit with fixed thermal (long-time) and fixed magnetic (instantaneous) settings. It does not offer field adjustability for the trip curve.
Is this Siemens 3VA4 breaker suitable for DC applications?
Yes, it is rated for use in DC systems up to 250V DC, providing an interrupting capacity of 85kA at that voltage.
Does the 3VA41 frame support field-installed internal accessories?
Yes, the 3VA41 frame supports standard Siemens 3VA internal accessories. Auxiliary switches, alarm switches, and shunt trips can be field-installed into the designated accessory pockets under the front cover.
Can this breaker be locked out for safe maintenance?
Yes, the toggle handle can be secured in the OFF position using a compatible Siemens padlock attachment. This ensures compliance with standard lockout-tagout safety procedures during facility maintenance.
