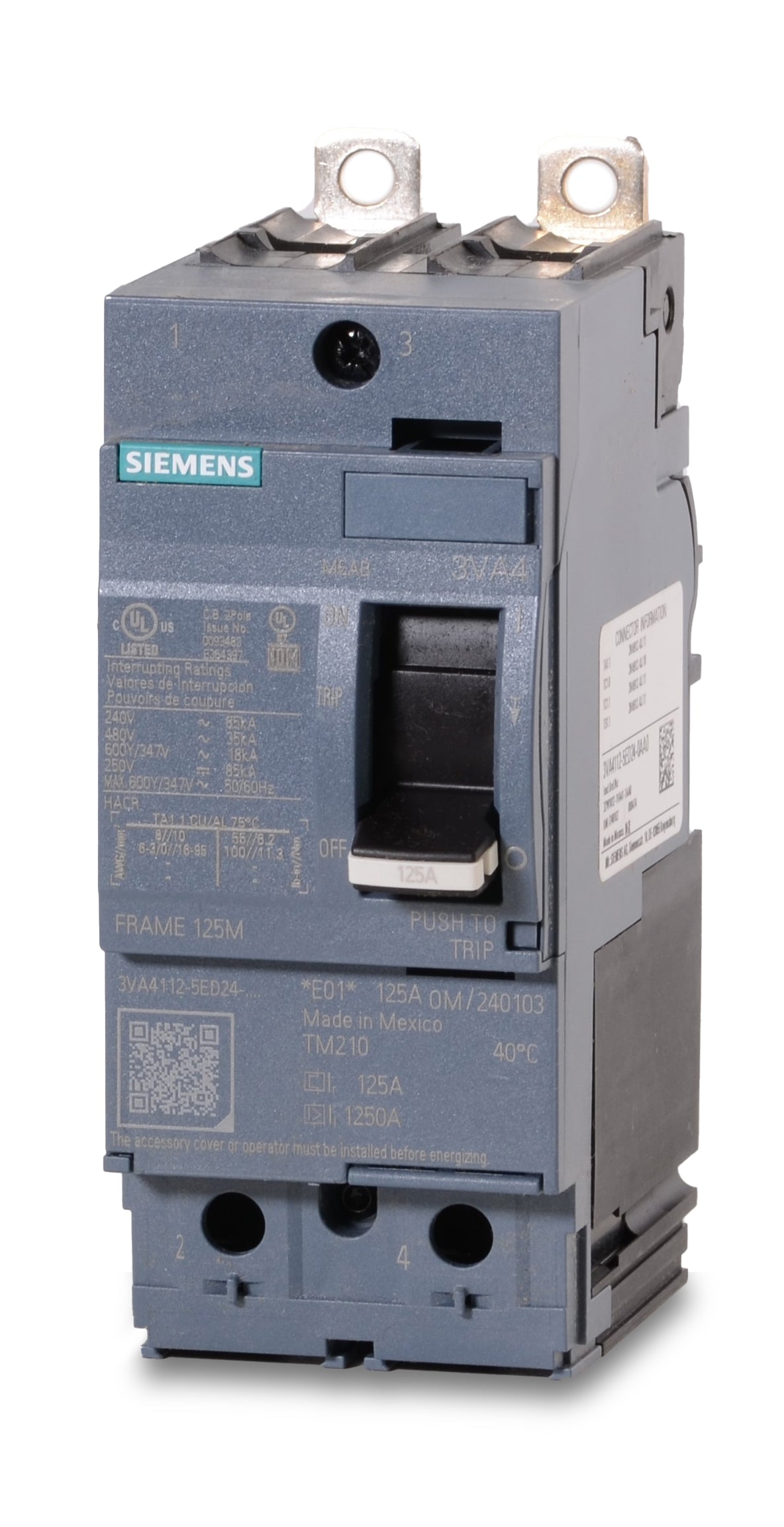

Siemens 3VA4112-5ED24-0AA0 Molded Case Circuit Breaker
- 125A
- 2 Pole
- Bolt-On
Siemens
3VA4112-5ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4112-5ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4112-5ED24-0AA0 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
90A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Siemens 3VA4112-5ED24-0AA0 provides robust overcurrent protection. This 125A, 2-pole MCCB features a fixed thermal-magnetic trip unit for reliable LI defense. It installs into Siemens P1, P2, and P3 panelboards and replaces discontinued MEAB series or ED62B125 breakers with the proper kit. Rated at 35 kAIC at 480V, this HACR-rated breaker is reverse feed capable and includes load side lugs.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 85kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersCan the 3VA4112-5ED24-0AA0 replace older Siemens ED frame breakers?
Yes, the 3VA41 series serves as a functional replacement for legacy ED frame breakers, such as the ED62B125 and discontinued MEAB series, when installed with the correct branch mounting kit.
What hardware is required to mount this breaker in Siemens panelboards?
To install this breaker into Siemens P1, P2, or P3 panelboards, you will need a compatible branch mounting kit, such as the S3VA41T or S3VA41TD.
Are the load side lugs pre-installed on this breaker?
Yes, 3VA41 panelboard-mounted circuit breakers ship with aluminum load side lugs installed as standard.
Can this breaker be used in reverse feed applications?
Yes, this breaker is approved for reverse feed installations, providing flexibility for various wiring configurations.
Is this breaker suitable for HVAC equipment protection?
Yes, it is HACR rated, meaning it is certified for safe use with heating, air conditioning, and refrigeration systems.
Can the 3VA4112-5ED24-0AA0 be used in direct current (DC) systems?
Yes, it is fully rated for DC applications up to 250V DC, providing reliable overcurrent protection for direct current circuits.
