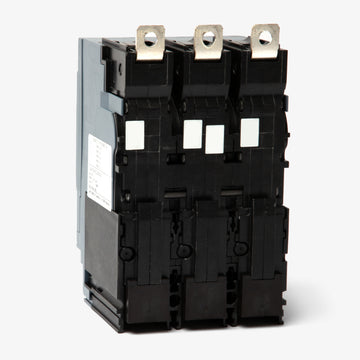

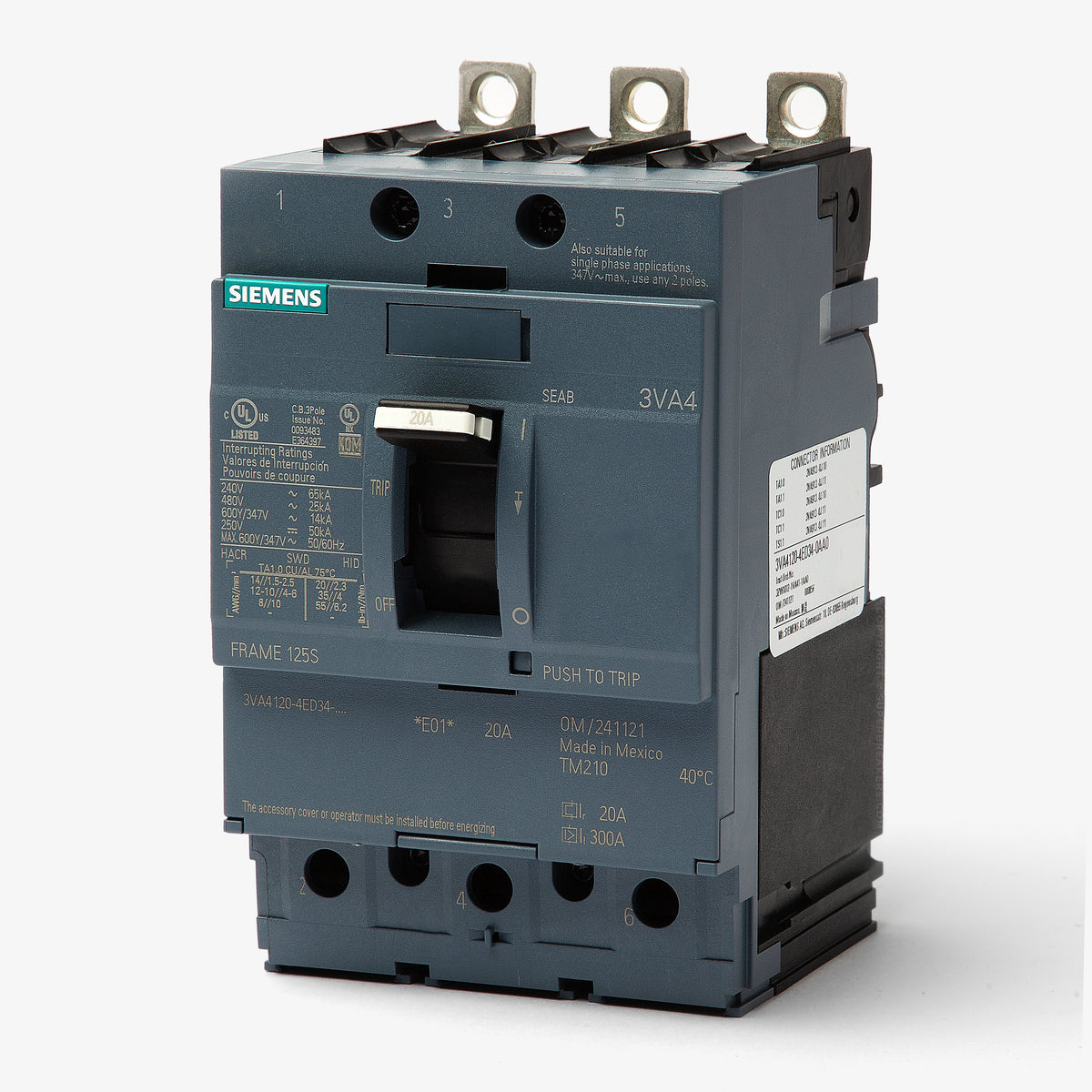

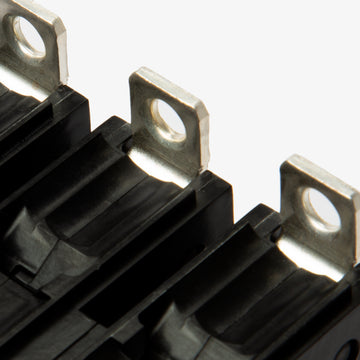

Siemens 3VA4120-6ED34-0AA0 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Panel Mount
Siemens
3VA4120-6ED34-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4120-6ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4120-6ED34-0AA0 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens 3VA4120-6ED34-0AA0 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | 3VA4120-6ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR Rated, HID Rated, IEC 60947-2, SWD Rated, UL 489 |
| Approval | CE, CSA, EAC, NOM, RCM, UL, VDE |
| Temp Rating | -25C to 70C |
Sold out
Quantity
Siemens 3VA4120-6ED34-0AA0 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | 3VA4120-6ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR Rated, HID Rated, IEC 60947-2, SWD Rated, UL 489 |
| Approval | CE, CSA, EAC, NOM, RCM, UL, VDE |
| Temp Rating | -25C to 70C |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty power distribution, the Siemens 3VA4120-6ED34-0AA0 is a 20A, 3-pole molded case circuit breaker. It provides dependable long-time and instantaneous protection for commercial facilities. Designed for panel-mount installations, this breaker fits into Siemens P1 through P5 panelboards. Facility managers can use it to replace older HHED63B020 units, maintaining system continuity. Equipped with a TM210 trip unit, it delivers a Class H 65kA rating at 480VAC and is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4120-6ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR Rated, HID Rated, IEC 60947-2, SWD Rated, UL 489 |
| Approval | CE, CSA, EAC, NOM, RCM, UL, VDE |
| Temp Rating | -25C to 70C |
Product FAQs
8 answersWhich panelboards are compatible with the Siemens 3VA4120-6ED34-0AA0?
This breaker is designed for panel-mount configurations and fits directly into Siemens P1, P2, P3, P4, and P5 series panelboards, as well as compatible Siemens switchboards.
Can I use this breaker to replace an older HHED63B020?
Yes, the 3VA4120-6ED34-0AA0 serves as a direct modern replacement for the legacy Siemens HHED63B020 20A circuit breaker, maintaining system continuity and the same 65kA interrupting rating at 480VAC.
What does the Class H designation indicate on this 3VA4 breaker?
The Class H rating signifies the interrupting capacity tier for this specific frame, confirming it delivers a heavy-duty 65kA short-circuit current rating at 480VAC.
Are the trip settings adjustable on the TM210 trip unit?
No, the TM210 trip unit features fixed thermal and fixed magnetic settings. Neither the overload nor the short-circuit pickup levels can be field-adjusted.
What type of fault protection does the LI trip function provide?
The LI designation means the thermal-magnetic trip unit provides Long-Time protection to prevent damage from sustained overloads, and Instantaneous protection to immediately clear severe short circuits.
Is the 3VA4120-6ED34-0AA0 suitable for commercial HVAC equipment?
Yes, this breaker carries an HACR rating, making it fully approved by safety standards for protecting heating, air conditioning, and refrigeration motor loads.
Can this 3-pole breaker be used in DC power circuits?
Yes, it is rated for DC applications up to 250VDC, offering a 100kA interrupting rating for direct current systems.

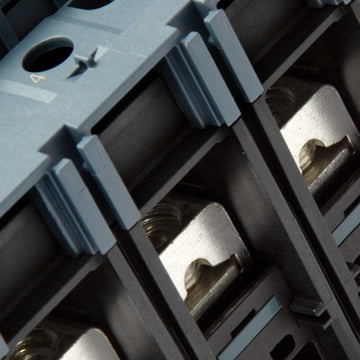

What wire gauges and materials are accepted by the factory lugs?
The integrated clamp-style terminals accept both aluminum and copper conductors, accommodating wire sizes ranging from 14 AWG to 8 AWG.
