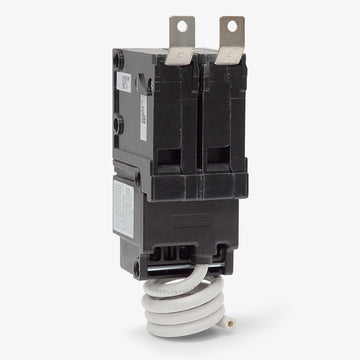

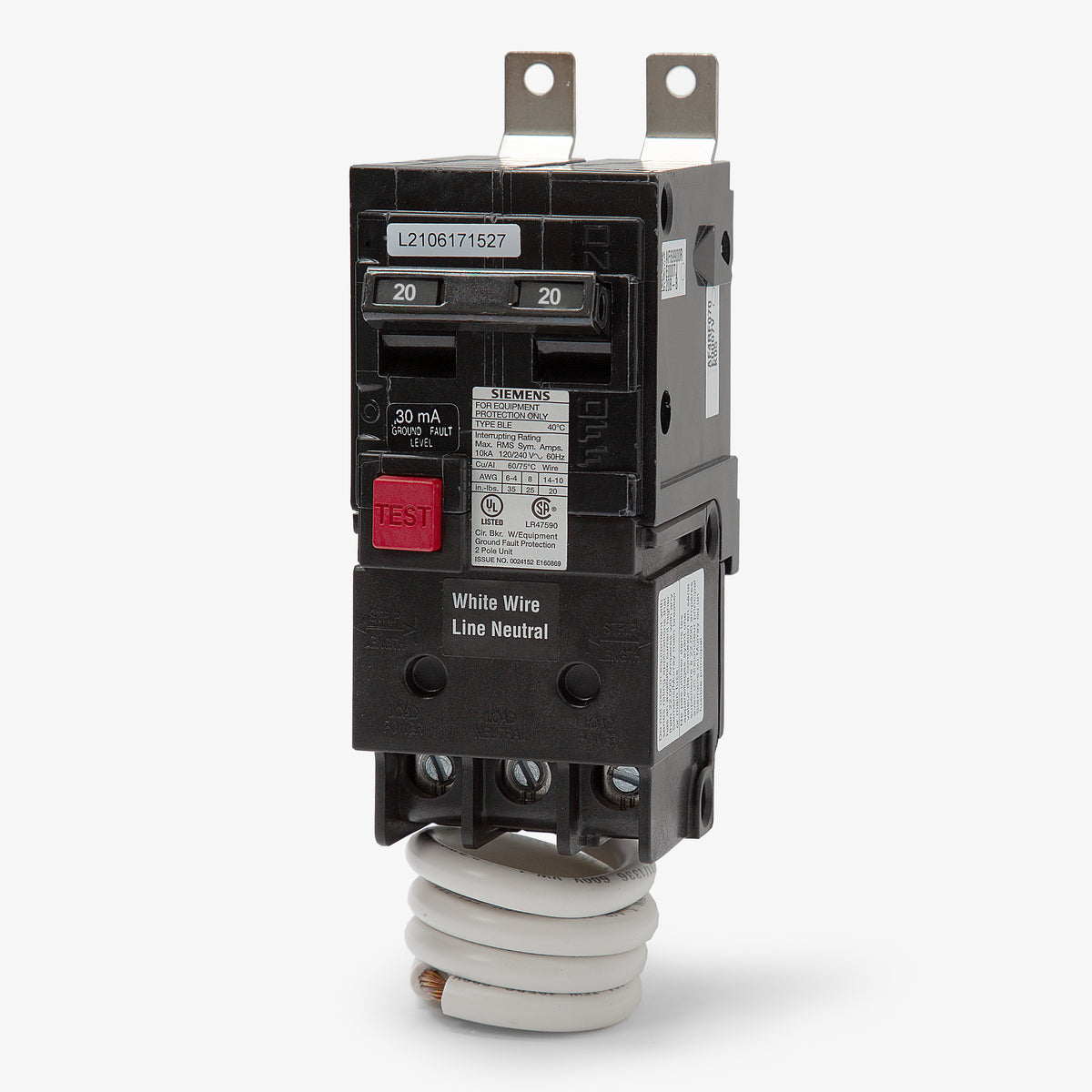

Siemens BE220H GFEP Molded Case Circuit Breaker
- 20A
- 2 Pole

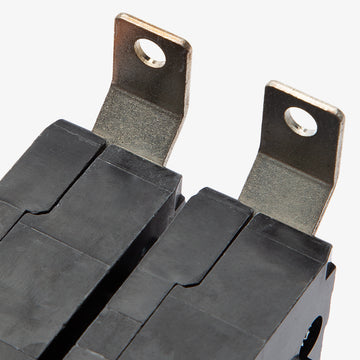

- Bolt-On
Siemens
BE220H
GFEP Molded Case Circuit Breaker
Brand
Siemens
SKU
BE220H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BE220H - 20A GFEP Molded Case Circuit Breaker
New
Quantity
Similar Items
50A GFEP Molded Case Circuit Breaker
60A GFEP Molded Case Circuit Breaker
20A GFEP Molded Case Circuit Breaker
Description
Delivering elevated fault current handling, this 22kAIC molded case circuit breaker integrates 30mA equipment-level ground fault protection. The bolt-on unit fits seamlessly into Siemens P1, P2, and P3 panelboards, offering robust defense for commercial and industrial loads. While this specific model has been superseded by the B220EGH, it remains a critical component for maintaining existing infrastructure that requires high-interrupting capacity and HACR-rated thermal-magnetic performance.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BE220H |
| Series | BE |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Ground Fault Equipment Protection, HACR Rated, High Interrupting Capacity, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat panelboards are compatible with the Siemens BE220H?
The BE220H is a bolt-on breaker designed specifically for installation in Siemens P1, P2, and P3 panelboards.
What is the ground fault trip sensitivity of the BE220H?
This breaker provides Ground Fault Equipment Protection (GFEP) with a 30mA trip threshold. It is designed to protect machinery and equipment from damaging line-to-ground faults without nuisance tripping.
Can the BE220H be used for personnel ground fault protection?
No. The BE220H is a GFEP breaker with a 30mA trip threshold intended for equipment protection, such as heat trace cables or snow melt systems. It does not provide the 5mA trip sensitivity required for Class A personnel GFCI protection.
What is the difference between the Siemens BE220 and the BE220H?
The H in the catalog number indicates a higher interrupting capacity. The BE220H is rated for 22kAIC at 120/240VAC, while the standard BE220 is rated for 10kAIC.
Has the Siemens BE220H been replaced by a newer model?
Yes, the BE220H has been superseded by the newer B220EGH model. However, the BE220H remains widely used for maintaining existing infrastructure.
How is the neutral connection wired on the BE220H?

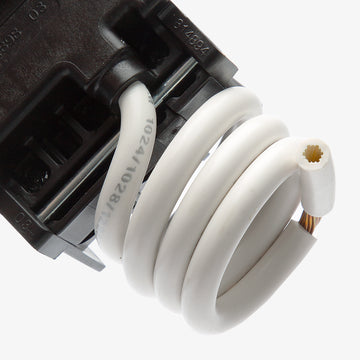

This breaker is equipped with a pigtail neutral wire. The pigtail must be connected directly to the neutral bar in the panelboard to ensure the ground fault sensing circuitry operates correctly.
