Square D FA34015-1021 Molded Case Circuit Breaker
- 15A
- 3 Pole
- I-Line
Square D
FA34015-1021
Molded Case Circuit Breaker
Brand
Square D
SKU
FA34015-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

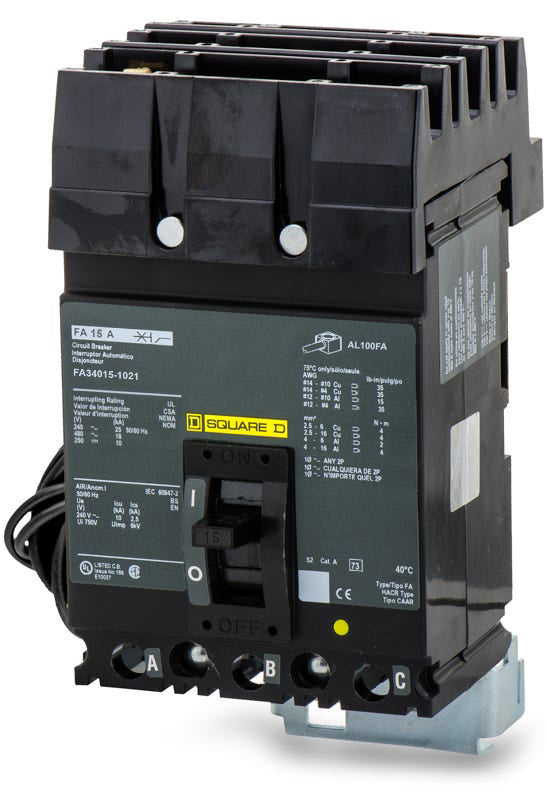

Square D FA34015-1021 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Designed with integrated remote tripping capabilities, this 15A molded case circuit breaker features a factory-installed shunt trip mechanism. It connects into Square D I-Line panelboards and switchboards, utilizing the standard plug-on phase jaw design. Capable of 18kAIC at 480VAC, the thermal-magnetic unit provides reliable long-time and instantaneous protection. When upgrading, use the HDA36015 combined with an S29386 shunt trip accessory.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA34015-1021 |
| Series | FA |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489, Federal Specification W-C-375B/GEN |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat does the -1021 suffix indicate on the FA34015-1021?
The -1021 suffix designates a factory-installed 120/240VAC shunt trip mechanism. This allows the breaker to be opened remotely for emergency shutdowns or automated control systems.
Will the FA34015-1021 fit in a standard Square D NQ or NF panelboard?
No. This breaker features an I-Line plug-on connection and is exclusively compatible with Square D I-Line panelboards and switchboards. It will not fit in NQ, NF, or QO load centers.
What is the modern replacement for the legacy FA34015-1021 breaker?
The FA frame is a legacy product. For modern facility upgrades, Square D recommends using the PowerPact H-frame series. Specifically, the HDA36015 breaker combined with an S29386 shunt trip accessory can serve as a functional replacement.
How does the FA34015-1021 mount into the panelboard?
This breaker utilizes an I-Line style plug-on connection. It snaps directly onto the panelboard bus assembly, allowing for quick installation without the need for individual wire connections to the bus.
Are the trip settings adjustable on the FA34015-1021?
No. This breaker features a thermal magnetic trip unit with fixed thermal (long time) and fixed magnetic (instantaneous) settings. They cannot be adjusted in the field.
How can I manually test the mechanical operation of the FA34015-1021?
You can use the push-to-trip button located on the face of the breaker. Pressing this button manually trips the breaker, allowing you to verify the mechanical operation of the tripping mechanism without exposing personnel to live electrical parts.
