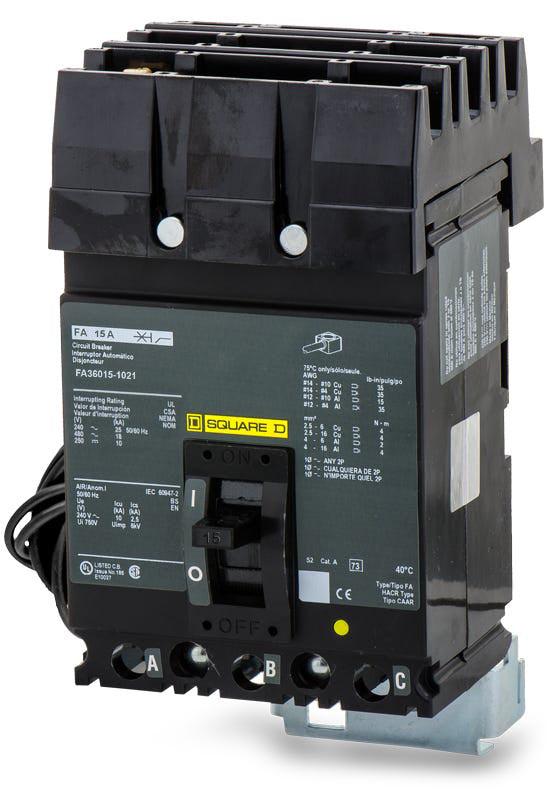

Square D FA36015-1021 Molded Case Circuit Breaker
- 15A
- 3 Pole
- I-Line
Square D
FA36015-1021
Molded Case Circuit Breaker
Brand
Square D
SKU
FA36015-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA36015-1021 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial distribution, this 15A molded case circuit breaker integrates a factory-installed 120-240VAC shunt trip mechanism. The F-frame design delivers reliable thermal-magnetic protection for critical circuits. Installation into Square D I-Line panelboards is streamlined via the plug-on bus connection. Rated for 25kA interrupting capacity at 240VAC, it includes load-side lugs and a Visi-Trip indicator for rapid fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA36015-1021 |
| Series | FA |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip, Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat does the -1021 suffix indicate on the FA36015-1021?
The -1021 suffix signifies that this breaker comes with a factory-installed 120/240VAC shunt trip mechanism. This feature allows the breaker to be tripped remotely by applying voltage to the shunt trip coil, which is commonly used for emergency shutdown systems or remote control applications.
What is the modern replacement for the legacy FA36015-1021?
The Square D FA-frame is a legacy series. When upgrading or replacing this unit with current technology, the base FA36015 is typically replaced by the newer PowerPact B-Frame (BDA36015) or H-Frame (HDA36015) models. To match the -1021 suffix, a 120/240VAC shunt trip accessory must be added to the replacement PowerPact breaker.
How does the I-Line mounting system work for this breaker?
The I-Line plug-in design allows the breaker to snap directly onto the busbar stack of a Square D I-Line panelboard or switchboard. This eliminates the need for bolt-on connections on the line side, significantly reducing installation time and ensuring a secure, consistent phase connection. The load side utilizes standard mechanical lugs.
Are the load lugs included with this I-Line breaker, and what wire types are supported?
Yes, the FA36015-1021 includes standard mechanical load lugs. Because it is an I-Line breaker, the line side connects directly to the panel bus, while the load side lugs accept either copper (Cu) or aluminum (Al) conductors ranging from 14 AWG to 4 AWG.
What does the LI trip function code mean for the FA36015-1021?
The LI designation indicates that the thermal-magnetic trip unit provides two types of protection: Long-Time (L) and Instantaneous (I). The Long-Time function uses a bimetallic thermal element to protect against sustained overloads, while the Instantaneous magnetic function responds immediately to high-level short circuits. Both settings are fixed on this model.
Can the FA36015-1021 be used in direct current (DC) systems?
Yes, this breaker is rated for use in DC applications up to 250VDC, with a direct current interrupting rating of 10kA. When installing in a DC system, ensure the wiring and panelboard configuration comply with the manufacturer guidelines for DC circuit protection.
