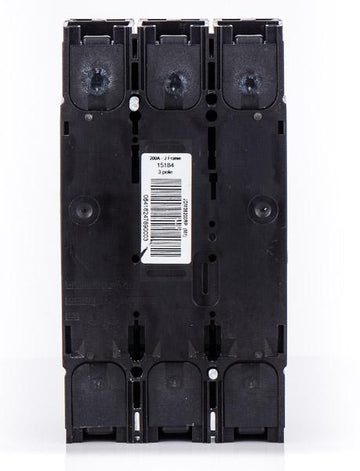

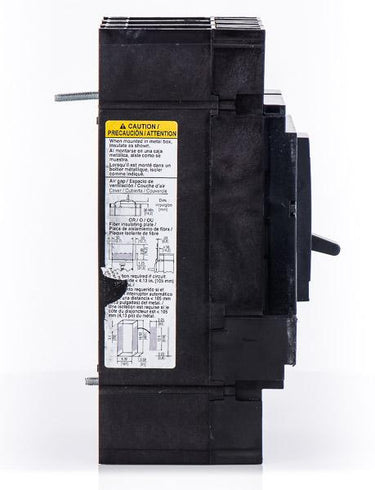

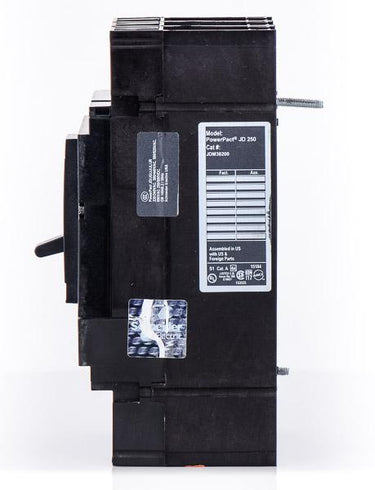

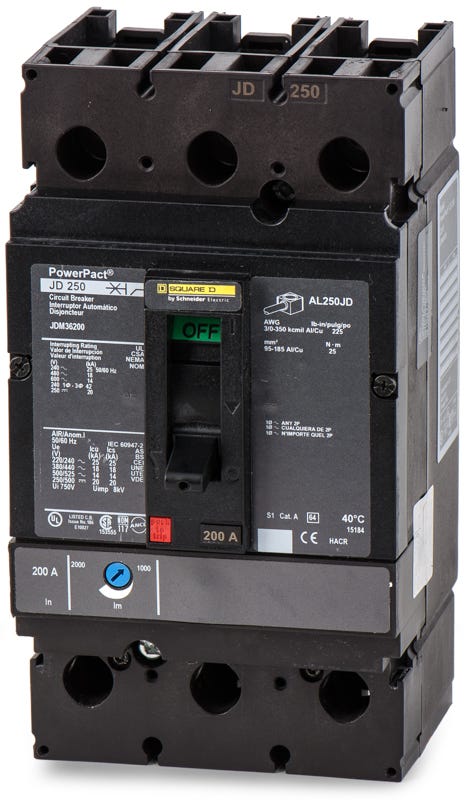

Square D JDM36200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Square D
JDM36200
Molded Case Circuit Breaker
Brand
Square D
SKU
JDM36200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JDM36200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Square D JDM36200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | JDM36200 |
| Series | JDM |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, Unit Mount Enclosures |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | Lugs (Line Side), Terminal Nuts (Load Side) |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Mercury Free, PVC Free |
Sold out
Quantity
Square D JDM36200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | JDM36200-R |
| Series | JDM |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, Unit Mount Enclosures |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | Lugs (Line Side), Terminal Nuts (Load Side) |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Mercury Free, PVC Free |
Similar Items
225A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Providing robust overcurrent defense, the Square D JDM36200 is a 200A, 3-pole MCCB. Belonging to the PowerPacT J-Frame series, it features a thermal-magnetic trip unit with adjustable magnetic settings for accurate LI protection. This unit mount breaker is engineered for installation in motor control centers and switchboards. It features line-side lugs and load-side terminal nuts, substituting for JDL36200 configurations. It boasts an 18 kAIC rating at 480VAC and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | JDM36200 |
| Series | JDM |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, Unit Mount Enclosures |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | Lugs (Line Side), Terminal Nuts (Load Side) |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Mercury Free, PVC Free |
Product FAQs
6 answersCan the JDM36200 be used in reverse-fed applications?
Yes, this breaker is suitable for reverse-fed applications. This allows the line and load connections to be swapped, providing flexibility for specific panel layouts and wiring configurations without compromising the thermal-magnetic protective functions.
How does the adjustable magnetic trip function work on this breaker?
The JDM36200 features a thermal-magnetic trip unit with a fixed thermal element for overload protection and an adjustable magnetic element for short-circuit protection. The adjustable dial allows electricians to set the instantaneous trip threshold to properly coordinate with downstream devices and minimize nuisance tripping.
Can I install the JDM36200 in a Square D I-Line panelboard?
No. The M in the JDM36200 catalog number designates it as a unit-mount or bolt-on breaker. For an I-Line plug-on panelboard, you will need the I-Line equivalent, which is catalog number JDA36200.
What does the D interrupting rating signify in the PowerPacT J-Frame series?
The D in the catalog number indicates Square D's standard interrupting rating tier for this frame size. For this specific breaker, it provides a maximum interrupting capacity of 18 kA at 480 VAC and 14 kA at 600 VAC, making it suitable for standard commercial and industrial fault current levels.
What types of enclosures and panels are compatible with the JDM36200?
As a unit-mount breaker, the JDM36200 is designed to be bolted directly into industrial control panels, switchboards, motor control centers, and standalone unit-mount enclosures. It is not compatible with plug-on panelboards like the Square D I-Line series.
Does the JDM36200 include a push-to-trip feature for testing?
Yes, like all PowerPacT J-Frame breakers, the JDM36200 features an integral push-to-trip button on the front cover. This allows electricians to manually trip the breaker to verify the mechanical operation of the tripping mechanism before or after installation.
