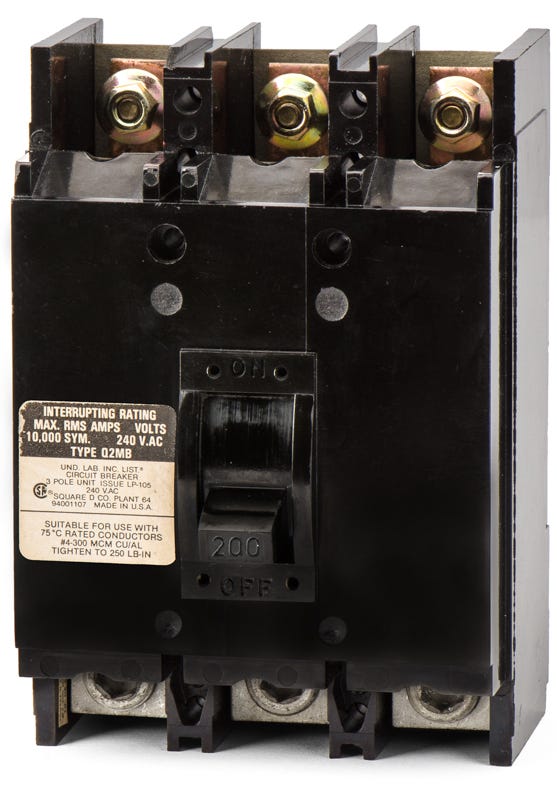

Square D Q2M3200MB Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Square D
Q2M3200MB
Molded Case Circuit Breaker
Brand
Square D
SKU
Q2M3200MB
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D Q2M3200MB - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items

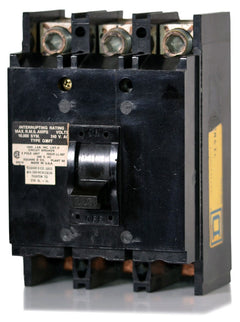

225A 3 Pole Molded Case Circuit Breaker

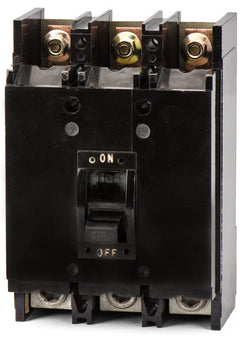

125A 3 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
Description
Designed to serve as a main breaker, the 200A, three-pole molded case circuit breaker delivers essential long-time and instantaneous (LI) trip functions. It features a Visi-Trip indicator for rapid fault detection and is HACR rated for use with heating and cooling equipment. The unit mounts into Square D commercial panelboards and switchboards, providing a 10kAIC interrupt rating at 240VAC. For newer installations, this model is replaced by the QDL32200, though mounting should be verified.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q2M3200MB-R |
| Series | Q2 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Lugs Included |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Main Breaker |
Product FAQs
5 answersWhich Square D panelboards accept the Q2M3200MB main breaker?
This legacy breaker is primarily installed as a main breaker in older Square D NQOB and NQOD panelboards, as well as compatible Meter-Pak and EZM metering centers.
What is the modern replacement for the Q2M3200MB circuit breaker?
The Q2M series is obsolete. The PowerPact Q-Frame series, specifically models like the QDL32200 or QBM32200TN, often serve as modern replacements. Always verify the specific bus connections and mounting hardware required for your existing panel before substituting.
How are the load side connections configured on this breaker?
The Q2M3200MB features a bolt-on design where the line side uses standard wire lugs, and the load side utilizes threaded studs that bolt directly to the panelboard branch bus.
Can the Q2M3200MB be used to protect HVAC circuits?
Yes, this breaker is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration equipment.
How can I visually identify if the Q2M3200MB has tripped?
This breaker is equipped with a Visi-Trip indicator. When a fault or overload causes the breaker to trip, a highly visible red indicator appears in the window to help quickly locate the tripped circuit.
