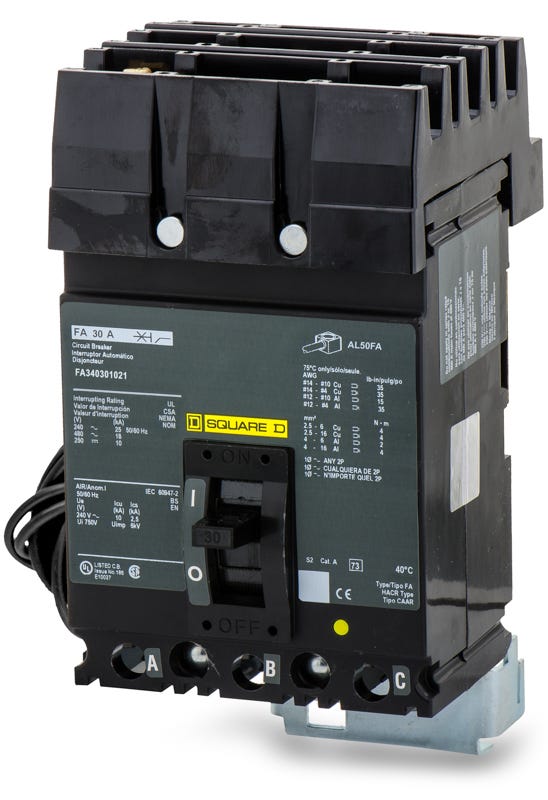

Square D FA340301021 Molded Case Circuit Breaker
- 30A
- 3 Pole
- I-Line
Square D
FA340301021
Molded Case Circuit Breaker
Brand
Square D
SKU
FA340301021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA340301021 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, this 30A thermal-magnetic MCCB provides reliable overload and short-circuit protection. It installs into Square D I-Line panelboards and features a factory-installed 120VAC shunt trip (indicated by the 1021 suffix) for remote tripping applications. Rated for 25kAIC at 240V and 18kAIC at 480V, it includes Visi-Trip visual indication. This legacy F-frame model is replaced by the PowerPacT H-frame HDA34030SA.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA340301021 |
| Series | FA |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat does the 1021 suffix mean on the FA340301021 catalog number?
The 1021 suffix indicates that this breaker includes a factory-installed 120/240VAC shunt trip. This allows the breaker to be tripped remotely via an external control signal, which is often required for emergency stop or fire alarm integration.
Can I install the FA340301021 in a standard Square D NQ or NF panelboard?
No. This breaker features an I-Line plug-in mounting connection. It is specifically designed for Square D I-Line panelboards and switchboards, and will not fit in NQ, NF, or QO load centers.
Is the FA340301021 a direct replacement for older FA series breakers?
Yes, this legacy F-frame MCCB will directly replace older Square D FA breakers with the same pole count and amperage in existing I-Line panelboards. Ensure your application requires the 120/240VAC shunt trip before replacing a standard breaker with this specific model.
How is the factory-installed shunt trip connected during installation?
The shunt trip mechanism features control wire leads that exit the breaker housing. These leads must be wired to a 120VAC or 240VAC control power source through a normally open contact, such as a remote push button or fire alarm relay, to actuate the remote trip function.
What safety applications require the shunt trip feature found on this breaker?
The 120/240VAC shunt trip is commonly used to integrate the breaker into facility safety systems. It allows the circuit to be automatically disconnected by fire suppression systems, emergency stop buttons, or remote control panels to protect personnel and equipment during an emergency.
