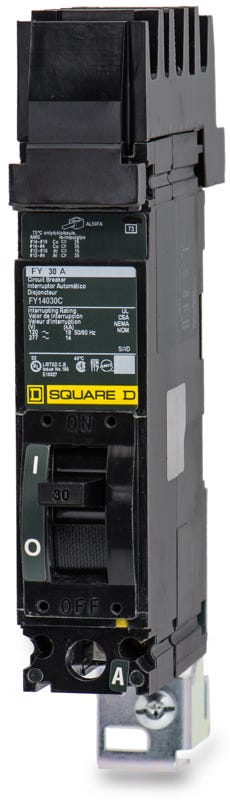

Square D FY14030C Molded Case Circuit Breaker
- 30A
- 1 Pole
- I-Line
Square D
FY14030C
Molded Case Circuit Breaker
Brand
Square D
SKU
FY14030C
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FY14030C - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D FY14030C - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FY14030C |
| Series | FY |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FY |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Phase C Connection |
Quantity
Square D FY14030C - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FY14030C-R |
| Series | FY |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FY |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Phase C Connection |
Similar Items
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Designed for heavy-duty applications, the Square D FY14030C is a 1-pole, 30A molded case circuit breaker. It delivers consistent thermal-magnetic protection for commercial and industrial facilities. This F-Frame unit installs into Square D I-Line panelboards. For modernizations or replacements, it crosses over to the newer PowerPacT BDA140305 model. Rated at 14kAIC at 277VAC, this breaker features a factory-configured Phase C connection and is HACR rated for HVAC equipment compatibility.Specifications
| Brand | Square D |
|---|---|
| Part Number | FY14030C-R |
| Series | FY |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FY |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Phase C Connection |
Product FAQs
6 answersWhat does the "C" suffix in the FY14030C catalog number indicate?
The "C" suffix indicates that this 1-pole breaker is factory-configured to connect specifically to the C-phase of an I-Line panelboard busbar.
What type of panelboards accept the FY14030C circuit breaker?
It is designed exclusively for Square D I-Line panelboards and switchboards. The plug-in jaw connects directly to the I-Line busbar stack.
Can the FY14030C be used in direct current (DC) applications?
Yes, this breaker is rated for up to 125VDC with a 10kA interrupting capacity, making it suitable for specific DC control circuits or battery systems.
What type of trip mechanism does this breaker use?
It utilizes a fixed thermal-magnetic trip unit. The thermal element provides an inverse time delay for overloads, known as the Long-Time function, while the magnetic element provides instantaneous tripping for short circuits.
How does the I-Line connection mount to the panelboard?
The breaker features a plug-in jaw that engages directly with the I-Line busbar. A mounting bracket and screw secure the off end of the breaker to the panelboard backpan.
Is the Square D FY frame still in active production?
The FY frame is a legacy molded case circuit breaker that has been discontinued by the manufacturer. It is often replaced by modern PowerPact series breakers or sourced as a direct drop-in replacement to maintain the existing panel configuration without busbar modifications.
