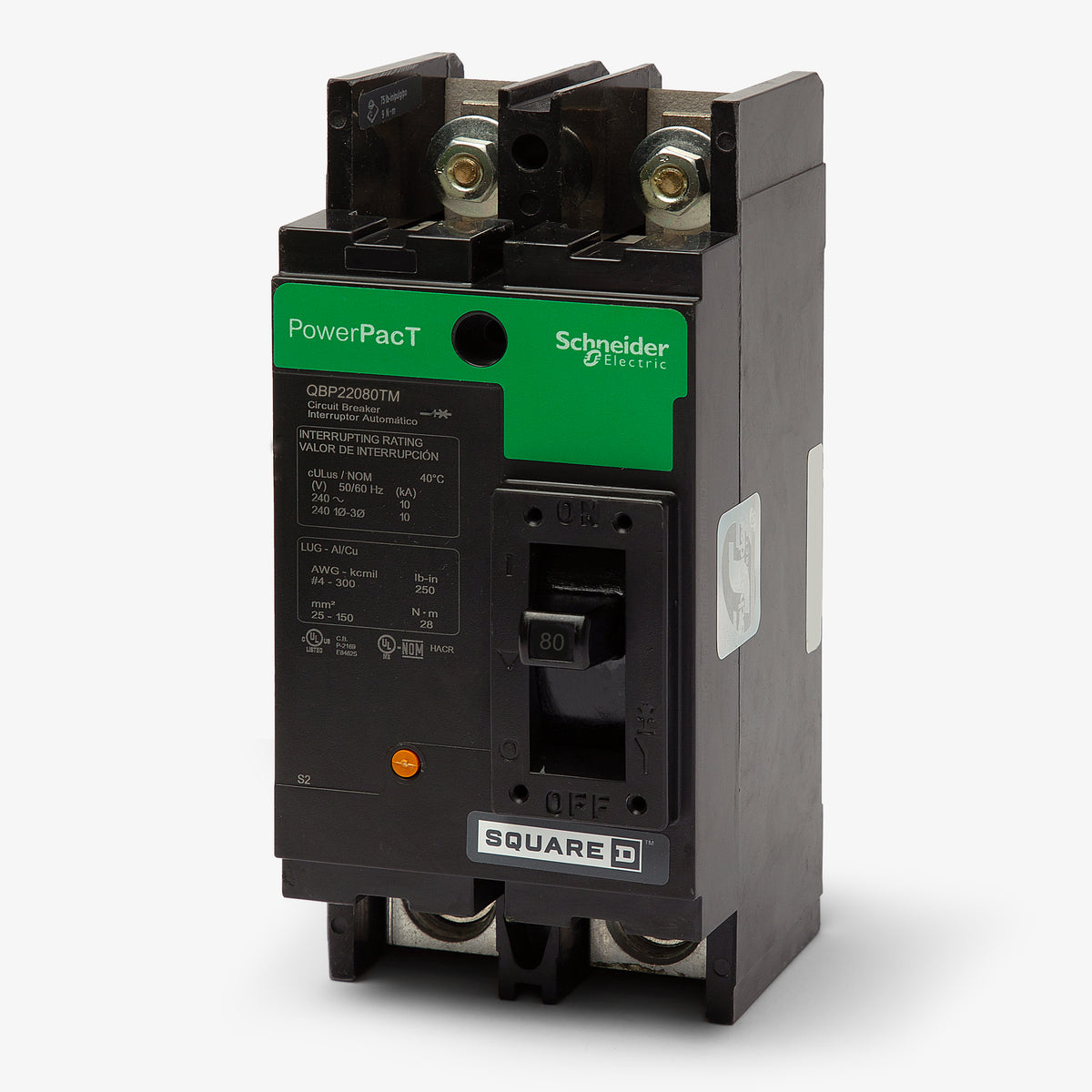

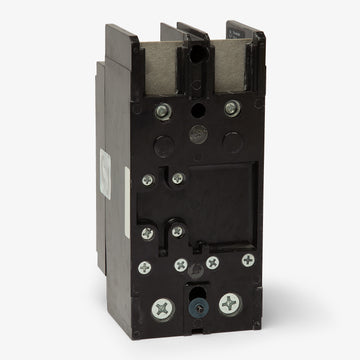

Square D QBP22080TM Molded Case Circuit Breaker
- 80A
- 2 Pole
- Unit Mount
Square D
QBP22080TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QBP22080TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBP22080TM - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 2 Pole Molded Case Circuit Breaker
2 Pole Circuit Breaker
110A 2 Pole Molded Case Circuit Breaker
Description
Engineered for metering applications, the Square D QBP22080TM provides reliable 80A overcurrent protection. This 2-pole MCCB features a thermal-magnetic trip unit with fixed LI functions. As a unit mount solution, it installs into Square D EZ Meter-Pak and standard Meter-Pak centers. It also serves as an exact replacement for legacy Q22080 breakers. Rated for 10kAIC at 240VAC, this Q-Frame breaker includes Visi-Trip indication, HACR rating, and stud/tapped pad terminals.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBP22080TM |
| Series | QBP |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Meter Centers, EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line Side Mounting Nuts/Washers |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Tenant Main, 80% Rated |
Product FAQs
6 answersWhat metering equipment is compatible with the QBP22080TM?
This breaker is engineered specifically for installation in Square D Meter-Pak and EZ Meter-Pak Meter Centers.

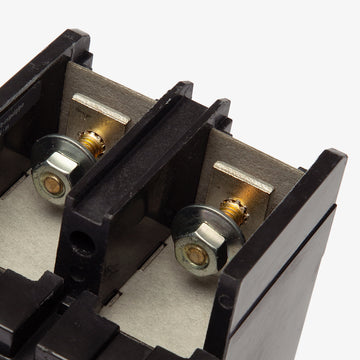

How does the stud and tapped pad connection work on this breaker?
The stud and tapped pad design allows the breaker to be bolted directly to the busbars inside the meter center. This provides a secure, high-current connection without the need for standard wire lugs on the line side.

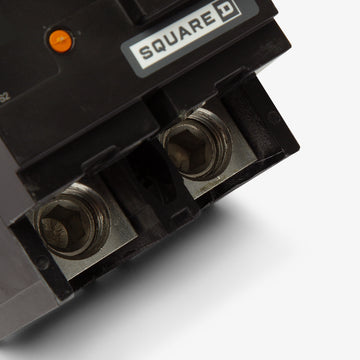

What type of conductors can be used with the load-side terminals?
The load lugs accept either aluminum or copper conductors ranging from 4 AWG to 300 kcmil.
What do the letters "LI" mean in the trip function code?
"LI" stands for Long-Time and Instantaneous. The long-time function protects against sustained overloads, while the instantaneous function trips the breaker immediately during a short circuit.
What does the "TM" suffix in the QBP22080TM catalog number indicate?
The "TM" designates a thermal-magnetic trip unit. It uses a bimetal element for thermal overload protection and an electromagnetic assembly for instantaneous short-circuit protection.
Can I upgrade to a higher interrupting rating if my system requires more than 10kAIC?
Yes. If your fault current study requires a higher rating, you can use other PowerPacT Q-frame breakers. The QDP series offers 25kAIC, the QGP offers 65kAIC, and the QJP provides 100kAIC at 240V.
