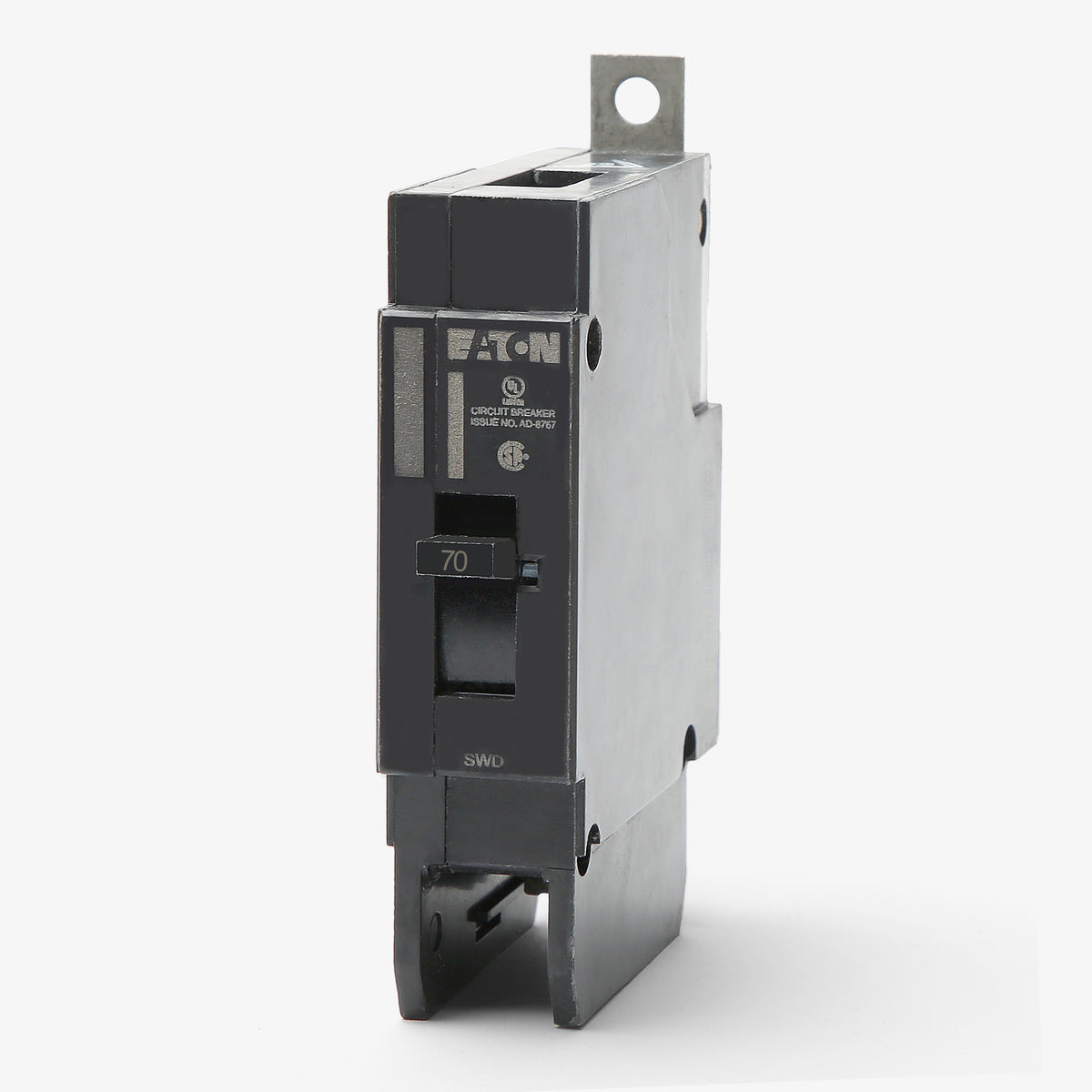

Eaton / Cutler-Hammer GHB1070 Molded Case Circuit Breaker
- 70A
- 1 Pole

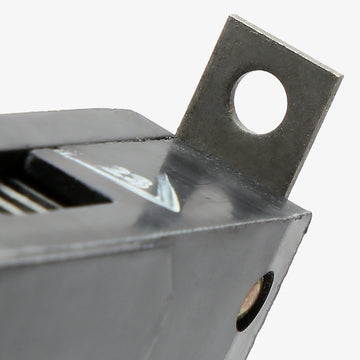

- Bolt-On
Eaton / Cutler-Hammer
GHB1070
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB1070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB1070 - 70A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 1 Pole Molded Case Circuit Breaker
90A 1 Pole Molded Case Circuit Breaker
50A 1 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Eaton GHB1070 is a 1-pole, 70A molded case circuit breaker from the Series C family. It provides dependable long-time and instantaneous (LI) thermal-magnetic trip functions to protect electrical systems from overloads and short circuits. This G-Frame breaker features a sturdy bolt-on mounting style, ensuring a secure connection. It is specifically designed to install into Eaton Pow-R-Line C panelboards and switchboards.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHB |
| Amperage | 70A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | GHB |
|---|---|

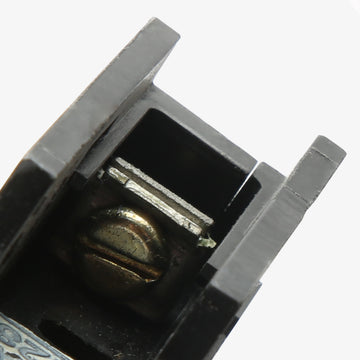

| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
7 answersWhich panelboards are compatible with the GHB1070?
This breaker is designed for bolt-on installation in Eaton Pow-R-Line C panelboards, as well as compatible switchboards and motor control centers.
Can I use this to replace an older Westinghouse or Cutler-Hammer GHB1070?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse circuit breaker lines. The Eaton GHB1070 is a direct replacement for older Westinghouse and Cutler-Hammer breakers sharing the same catalog number.
Is the GHB1070 HACR rated?
Yes, Eaton G-Frame circuit breakers are HACR rated, making this unit suitable for heating, air conditioning, and refrigeration equipment branch circuits.
Can the GHB1070 be reverse fed?
Yes, this thermal magnetic breaker is suitable for reverse feed applications.
What are the lug torque specifications for the GHB1070?
Torque requirements vary by wire size. Typical values are 20 lb-in for 10 AWG, 40 lb-in for 8 AWG, and 45 lb-in for 6 AWG through 1/0 AWG. Always verify the exact torque spec printed on the breaker label before terminating.
Is this breaker suitable for DC control circuits?
Yes, the GHB1070 is rated for 125VDC applications and provides a 14kA interrupting capacity for DC systems.
Does the GHB1070 have an adjustable trip unit?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions cannot be adjusted in the field.
