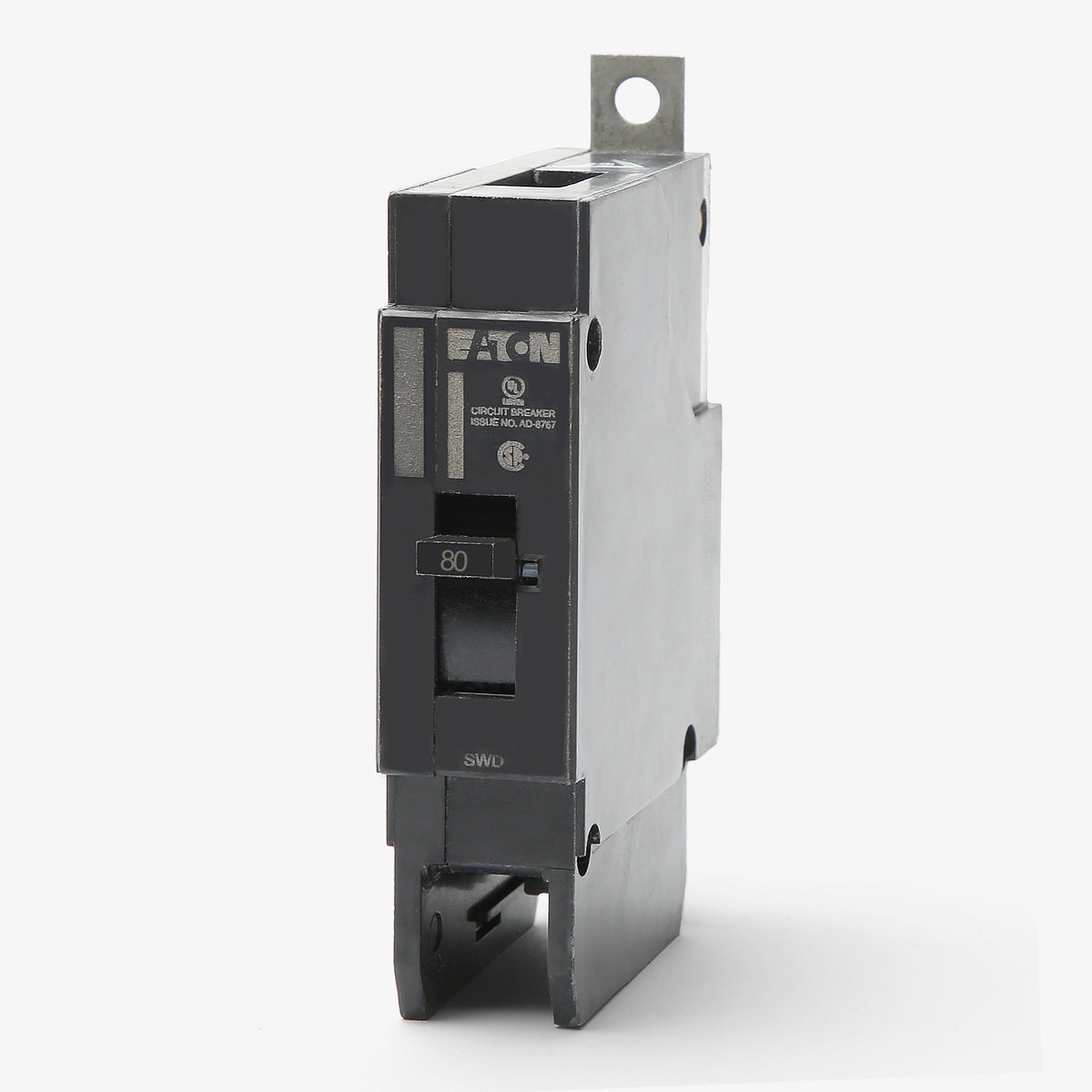

Eaton / Cutler-Hammer GHB1080 Molded Case Circuit Breaker
- 80A
- 1 Pole

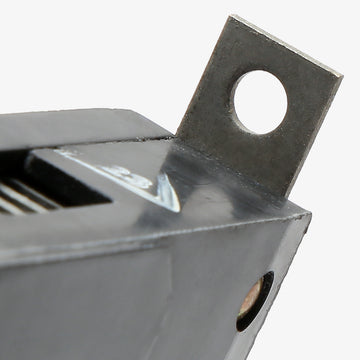

- Bolt-On
Eaton / Cutler-Hammer
GHB1080
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB1080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB1080 - 80A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 1 Pole Molded Case Circuit Breaker
100A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty power distribution, the Eaton GHB1080 is an 80A, 1-pole molded case circuit breaker. As part of the Series C G-Frame lineup, it utilizes fixed thermal and magnetic trip units to deliver precise long-time and instantaneous (LI) protection for commercial facilities. The breaker utilizes a dependable bolt-on mounting configuration for maximum stability under load. It installs seamlessly into Eaton Pow-R-Line C and standard Series C panelboards.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB1080 |
| Series | GHB |
| Amperage | 80A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards |
| Wire Gauge | #10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
10 answersWhat panelboards are compatible with the GHB1080 circuit breaker?
The GHB1080 is designed for use in Eaton Pow-R-Line C panelboards and standard Series C panelboards. It features a bolt-on mounting configuration that attaches directly to the panelboard bus.
What are the recommended torque specifications for the load lugs on the GHB1080?

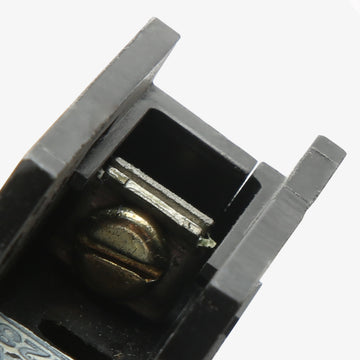

For the factory-installed lugs accepting #10 to 1/0 AWG wire, the required torque depends on the wire size: 20 lb-in for #10 AWG, 40 lb-in for #8 AWG, and 45 lb-in for #6 to 1/0 AWG. Always verify with the breaker nameplate before terminating.
Can I use the Eaton GHB1080 to replace an older Westinghouse or Cutler-Hammer GHB1080?
Yes. Eaton acquired both Cutler-Hammer and the distribution equipment division of Westinghouse. The current Eaton GHB1080 is the direct, exact replacement for legacy Westinghouse and Cutler-Hammer breakers with the same catalog number.
Is the GHB1080 rated for use in direct current (DC) systems?
Yes, this breaker is rated for 125VDC applications and provides a 14kA interrupting capacity (AIC) at that voltage.
Does the GHB1080 provide ground fault (GFCI) or equipment protection (EPD)?
No. This is a standard thermal-magnetic breaker equipped with fixed long-time and instantaneous (LI) trip functions for overload and short-circuit protection. It does not include ground fault circuitry.
Does the GHB1080 mount to a standard 35mm DIN rail?
No. The GHB1080 is a G-frame bolt-on circuit breaker designed specifically to bolt directly to the busbar of compatible Eaton commercial panelboards. It is not DIN rail mountable.
Can the GHB1080 be reverse fed?
Yes, Eaton G-frame circuit breakers, including the GHB1080, are suitable for reverse feed applications.
Are the lugs on the GHB1080 rated for aluminum wire?
Yes, the standard pressure lugs provided with this breaker are dual-rated for both copper and aluminum conductors within the #10 to 1/0 AWG range.
Is the GHB1080 HACR rated for HVAC applications?
Yes, Eaton G-frame breakers like the GHB1080 carry an HACR rating, making them suitable for use with heating, air conditioning, and refrigeration equipment.
Can the GHB1080 be used as a switch for fluorescent lighting?
No. Only the 15A and 20A single-pole GHB breakers carry the SWD (Switching Duty) rating for fluorescent lighting applications. The 80A GHB1080 is not SWD rated.
