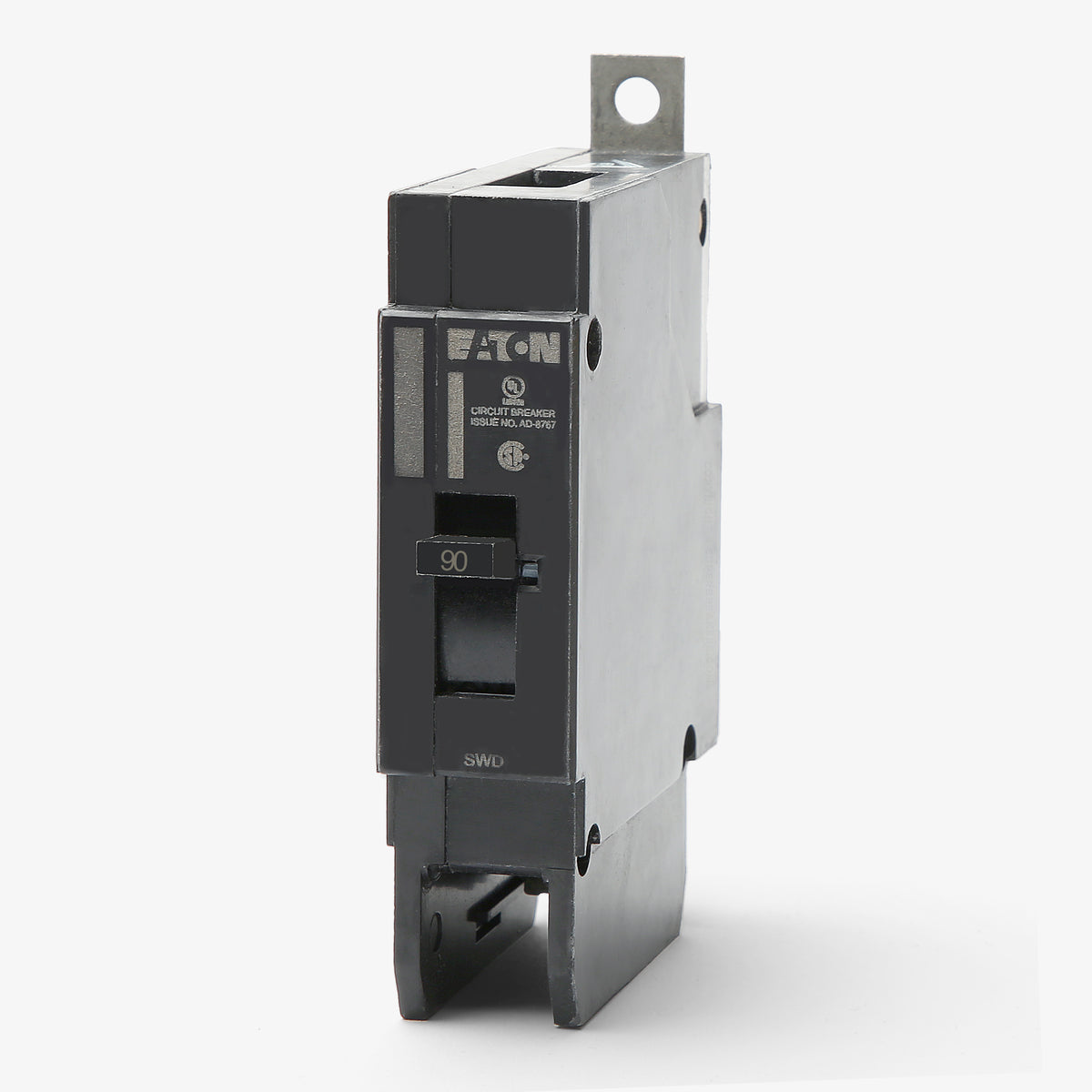

Eaton / Cutler-Hammer GHB1090 Molded Case Circuit Breaker
- 90A
- 1 Pole

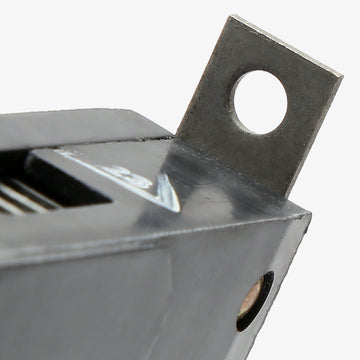

- Bolt-On
Eaton / Cutler-Hammer
GHB1090
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB1090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB1090 - 90A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 1 Pole Molded Case Circuit Breaker
70A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
Description
Designed to meet rigorous industrial standards, the Eaton GHB1090 is a 90A, 1-pole molded case circuit breaker. Belonging to the proven Series C family, it employs a fixed thermal-magnetic trip mechanism to provide accurate long-time and instantaneous (LI) overcurrent protection. This G-Frame device is engineered with a bolt-on mounting style, guaranteeing a solid and reliable connection to the busbar.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB1090 |
| Series | GHB |
| Amperage | 90A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards are compatible with the GHB1090?
This breaker is designed to bolt directly into Eaton Pow-R-Line C and Series C panelboards.
Can I use the Eaton GHB1090 to replace an older Westinghouse or Cutler-Hammer breaker?
Yes. Eaton acquired the Westinghouse distribution equipment division. The Eaton GHB1090 is the exact, direct replacement for legacy Westinghouse and Cutler-Hammer breakers with the same catalog number.

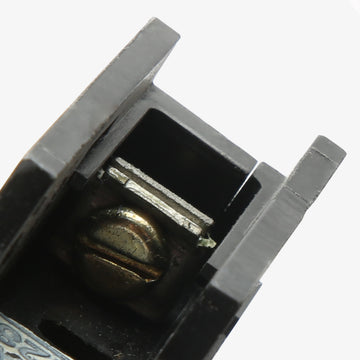

What are the wire size and lug torque specifications for the GHB1090?
The standard lugs accept 10 AWG to 1/0 AWG copper or aluminum wire. Torque 10 AWG wire to 20 lb-in, 8 AWG to 40 lb-in, and 6 AWG through 1/0 AWG to 45 lb-in.
Is the GHB1090 suitable for reverse feed applications?
Yes, Eaton Series C G-frame circuit breakers, including the GHB1090, are suitable for reverse feed use.
Is the GHB1090 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
