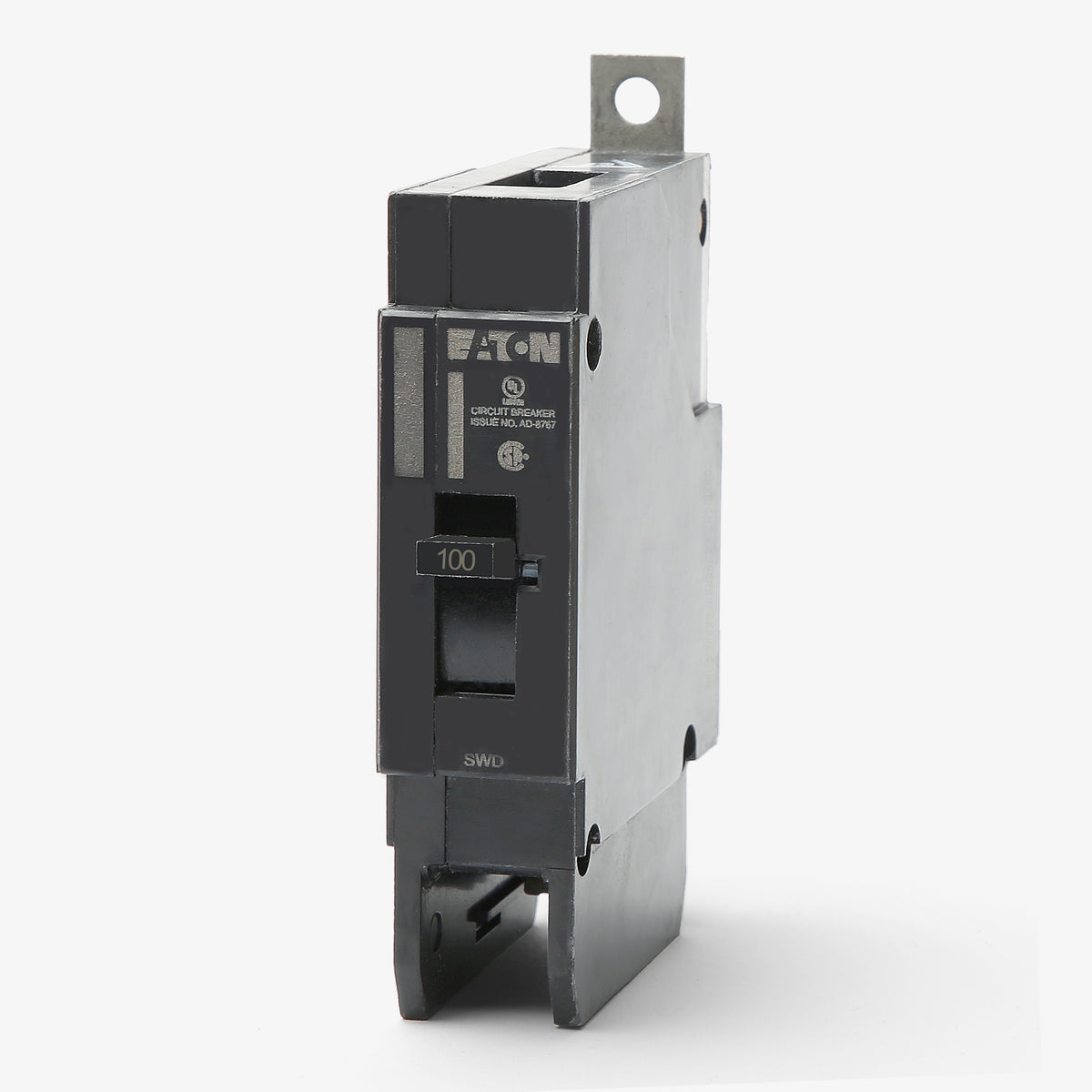

Eaton / Cutler-Hammer GHB1100 Molded Case Circuit Breaker
- 100A
- 1 Pole

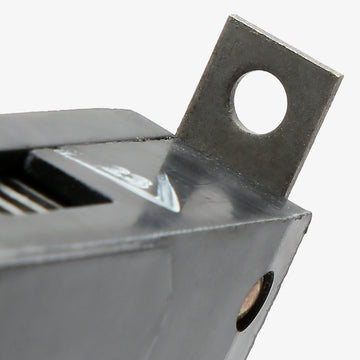

- Bolt-On
Eaton / Cutler-Hammer
GHB1100
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB1100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB1100 - 100A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 1 Pole Molded Case Circuit Breaker
70A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Eaton GHB1100 is a single-pole molded case circuit breaker from the Series C family. It provides robust overcurrent protection for 277VAC and 125VDC systems. This G-frame breaker installs into Eaton Pow-R-Line C panelboards. The bolt-on mounting style ensures a secure connection, while the included load-side lugs simplify wiring. Rated at 14kAIC at 277VAC, this unit features fixed thermal and magnetic trip units and is reverse feed capable.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHB |
| Amperage | 100A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the GHB1100 circuit breaker?
The GHB1100 is a bolt-on breaker designed for use in Eaton Pow-R-Line C and Series C panelboards. It is not compatible with standard residential loadcenters like the BR or CH series.
Can the GHB1100 be used in direct current applications?
Yes, this breaker is rated for DC use. It provides an interrupting capacity of 14kAIC at 125VDC, making it suitable for specific control circuit or battery applications.

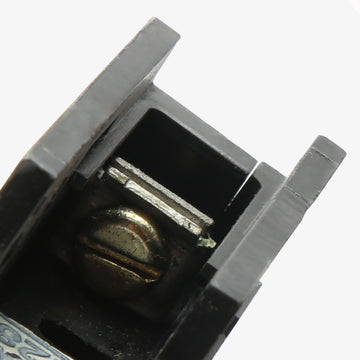

What wire sizes and materials are accepted by the GHB1100 lugs?
The factory-installed lugs accept 10 AWG to 1/0 AWG wire. They are dual-rated for both copper (Cu) and aluminum (Al) conductors.
Is there a difference between the Cutler-Hammer GHB1100 and the Eaton GHB1100?
No, they are the exact same breaker. Eaton acquired Cutler-Hammer and continues to manufacture the GHB series under the Eaton brand.
What does the LI trip function mean on this breaker?
The LI designation indicates Long-Time and Instantaneous trip functions. This provides standard thermal-magnetic protection against overloads and short circuits with fixed, non-adjustable trip settings.
Is the GHB1100 suitable for reverse feed or back-fed applications?
Yes, standard GHB thermal-magnetic breakers do not have line and load markings. This makes them suitable for reverse feed installations, such as acting as a back-fed main breaker in a compatible panelboard.
