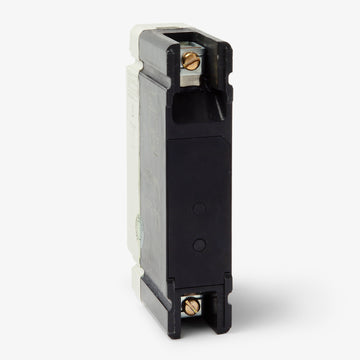

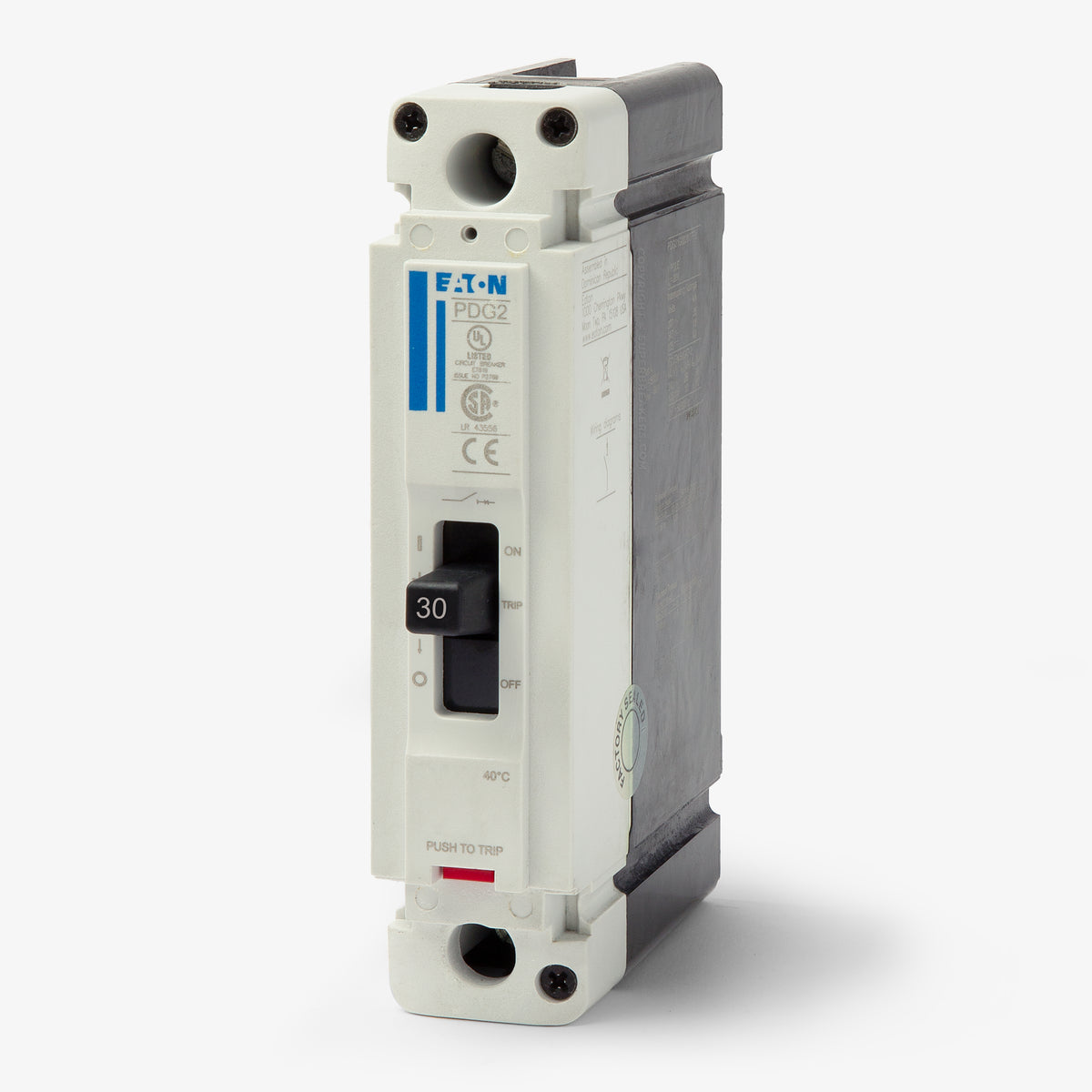

Eaton / Cutler-Hammer PDG21F0030TFFL Molded Case Circuit Breaker
- 30A
- 1 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG21F0030TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG21F0030TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG21F0030TFFL - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG21G0030TFFL
30A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21G0025TFFL
25A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21G0040TFFJ
40A 1 Pole Molded Case Circuit Breaker
Description

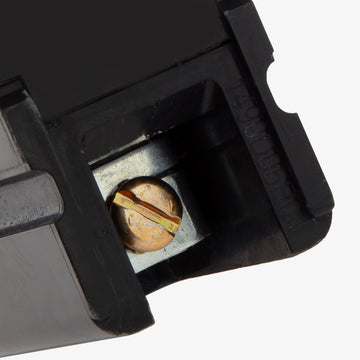

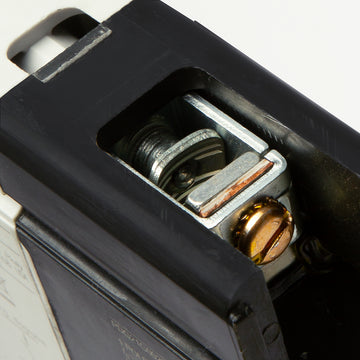

Engineered for commercial and industrial applications, the Eaton PDG21F0030TFFL is a 1-pole, 30A molded case circuit breaker from the Power Defense family. It provides robust long-time and instantaneous (LI) protection for critical infrastructure. This Frame 2 breaker mounts into Eaton panelboards and serves as a seamless replacement for discontinued Series C FD1030 units. Rated at 25 kAIC at 480VAC, it features fixed thermal and magnetic trip settings alongside standard load-side lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 125VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock, Terminal Shields |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
5 answersIs the PDG21F0030TFFL suitable for reverse-feed applications?
Yes. Eaton Power Defense Frame 1 and Frame 2 molded case circuit breakers can be safely reverse-fed. Note that this applies to standard thermal-magnetic breakers like this one, but not to motor circuit protectors (MCP).
What older Eaton or Cutler-Hammer breaker does the PDG21F0030TFFL replace?
This Power Defense Frame 2 breaker serves as a direct replacement for discontinued 1-pole, 30A Series C FD-frame breakers, including the FD1030.
What does the "LI" trip function code mean on this breaker?
"LI" stands for Long-Time and Instantaneous trip functions. The Long-Time function protects against sustained overloads, while the Instantaneous function provides immediate tripping during severe short circuits. On the PDG21F0030TFFL, both of these thermal-magnetic settings are fixed and cannot be field-adjusted.
Can the PDG21F0030TFFL be installed in standard residential load centers?
No. This is a bolt-on molded case circuit breaker designed specifically for commercial and industrial Eaton Power Defense panelboards, switchboards, and enclosures. It is not compatible with residential plug-on load centers such as the BR or CH series.
How do you decode the PDG21F0030TFFL catalog number?
The catalog number breaks down as follows: PDG stands for Power Defense Globally Rated. 2 indicates Frame 2. 1 is for 1-Pole. F denotes the interrupting rating tier (such as 25kAIC at 480VAC). 0030 specifies 30 Amps. TFF indicates a Thermal-Magnetic trip unit with Fixed Thermal and Fixed Magnetic settings. L indicates standard lug terminals.
