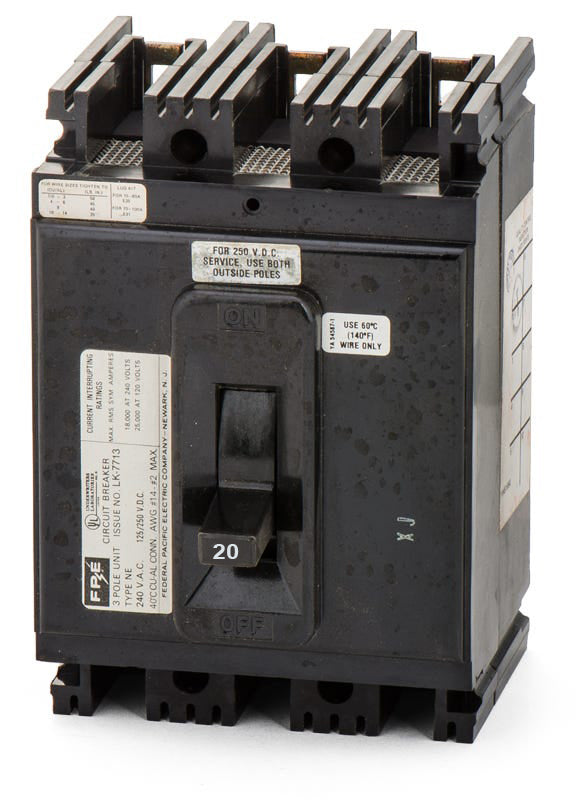

Federal Pacific NE237020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Federal Pacific
NE237020
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE237020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NE237020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Designed to support existing commercial systems, the NE237020 is a 20-amp, 3-pole molded case circuit breaker. It provides essential overcurrent protection for industrial power distribution networks. This N-Frame breaker features a bolt-on mounting style for secure installation. It is specifically engineered for compatibility with legacy Federal Pacific NE panelboards, ensuring an exact fit. The unit utilizes a fixed thermal-magnetic trip mechanism, delivering an 18kAIC rating at 240VAC.Specifications
| Brand | Federal Pacific |
|---|---|
| Series | NE |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersWhich panelboards are compatible with the NE237020 circuit breaker?
The NE237020 is a bolt-on N-Frame breaker designed exclusively for legacy Federal Pacific NE panelboards. It is an industrial molded case breaker and will not fit standard FPE Stab-Lok residential load centers.
What wire gauge is accepted by the lugs on the NE237020?
The integrated lugs accept wire sizes from 14 AWG to 10 AWG. Always verify that the wire material and size comply with local electrical codes for a 20-amp circuit before installation.
Is the Federal Pacific NE237020 still being manufactured?
Federal Pacific Electric is no longer in business, meaning original NE-frame breakers are obsolete and no longer in active production. They are sourced through specialized distributors to support and maintain existing legacy infrastructure.
Can the NE237020 be used in DC applications?
Yes, in addition to its standard 240VAC rating, this thermal-magnetic breaker is rated for up to 250VDC. When used in direct current systems, it provides a 5kA interrupting capacity.
Does the NE237020 feature an adjustable trip setting?
No, this breaker utilizes a fixed thermal-magnetic trip mechanism. Both the long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
Are Federal Pacific NE frame breakers part of the Stab-Lok safety issues?
The widely documented safety concerns and failure rates associated with Federal Pacific Electric primarily involve their residential Stab-Lok load centers and breakers. The NE237020 is a commercial N-Frame molded case circuit breaker, which utilizes a different internal design. Regardless, all legacy electrical equipment should be routinely inspected by a qualified professional.
