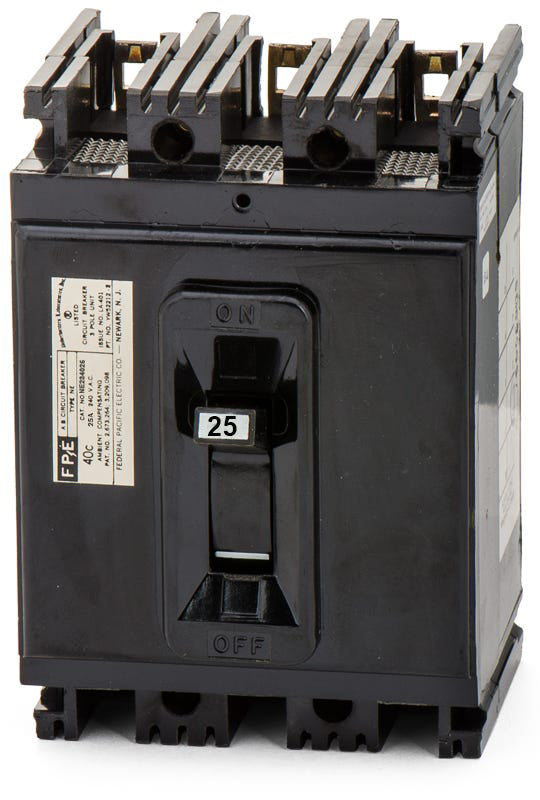

Federal Pacific NE234025 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Federal Pacific
NE234025
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE234025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NE234025 - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, the NE234025 provides 25 amps of reliable circuit protection. This legacy Federal Pacific molded case breaker helps facility managers maintain older electrical systems without complete panel upgrades. The unit bolts securely into Federal Pacific NE and NBLP panelboards. It serves as an exact fit replacement, bypassing the need for modification kits. Delivering an 18 kAIC interrupt rating at 240VAC, it utilizes a thermal-magnetic trip.Specifications
| Brand | Federal Pacific |
|---|---|
| Series | NE |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the Federal Pacific NE234025 circuit breaker?
This breaker is specifically designed to bolt into legacy Federal Pacific NE and NBLP series panelboards. It serves as a direct fit to maintain older commercial and industrial distribution systems without requiring modification kits.
Does the NE234025 support direct current (DC) systems?
Yes. While primarily used for 240VAC applications at 18kAIC, it is also rated for 250VDC systems with a 5kAIC interrupting capacity.
What type of conductors can be landed on the NE234025?
The factory-installed lugs accept wire gauges ranging from 14 AWG to 2 AWG. Ensure you use properly rated copper or aluminum conductors as specified by the National Electrical Code (NEC) for a 25-amp circuit.
What is the maximum frame rating for the NE series breakers?
The NE234025 is built on the Federal Pacific N-Frame, which supports a maximum capacity of 100 amps. This specific model is factory-calibrated for a 25-amp continuous load.
Is the NE234025 part of the Federal Pacific Stab-Lok residential line?
No. The NE234025 is a commercial-grade, bolt-on molded case circuit breaker. It is distinct from the residential Stab-Lok plug-on breakers that have been the subject of safety recalls and industry scrutiny.
Are the trip settings adjustable on the NE234025?
No. This breaker features a fixed thermal and fixed magnetic trip unit, providing preset long-time and instantaneous (LI) protection for the 25-amp circuit.
