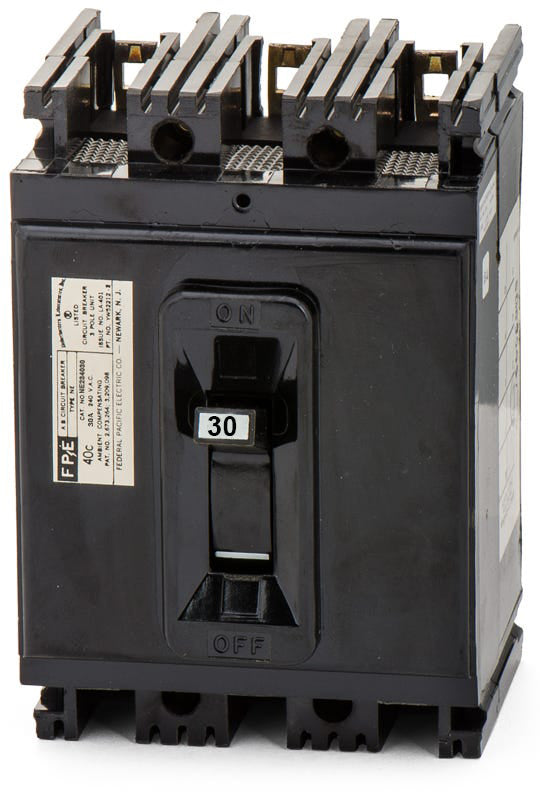

Federal Pacific NE234030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Federal Pacific
NE234030
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE234030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NE234030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Federal Pacific NE234030 is a 3-pole, 30A molded case circuit breaker providing long-time and instantaneous (LI) protection. This bolt-on unit installs into existing FPE NE and NBLP panelboards, offering an exact fit without retrofit adapters. It serves as a direct replacement to keep older infrastructure operational safely. Rated at 18 kAIC at 240VAC, this N-Frame breaker features a non-interchangeable trip and carries an HACR rating.Specifications
| Brand | Federal Pacific |
|---|---|
| Series | NE |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the NE234030 circuit breaker?
This breaker is engineered specifically for legacy Federal Pacific NE and NBLP series panelboards. Its bolt-on mounting style ensures a secure connection to the busbar in these commercial enclosures.
Can the NE234030 be installed in DC electrical systems?
Yes. While primarily used in 240VAC applications with an 18kAIC rating, this breaker is also rated for 250VDC systems, where it provides a 5kA interrupting capacity.
What wire gauge range do the NE234030 lugs accept?
The integrated terminal lugs accommodate conductors from 14 AWG to 2 AWG. Installers must ensure the wire is properly sized for the 30A continuous current rating and torqued to specification.
What type of protection does the LI trip function provide?
The LI designation indicates a thermal-magnetic trip unit with Long-Time and Instantaneous functions. The fixed thermal element protects against sustained overloads, while the fixed magnetic element trips immediately during a short circuit.
Is the NE234030 interchangeable with Federal Pacific Stab-Lok breakers?
No. The NE234030 is a commercial N-Frame molded case circuit breaker with a secure bolt-on connection. It is not compatible with residential Stab-Lok load centers.
What frame size does the NE234030 belong to?
It is part of the Federal Pacific N-Frame family. This specific model is an NE frame, which dictates its physical dimensions and mounting compatibility within FPE enclosures.
