Federal Pacific NE114070 Molded Case Circuit Breaker
- 70A
- 1 Pole
- Bolt-On
Federal Pacific
NE114070
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE114070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

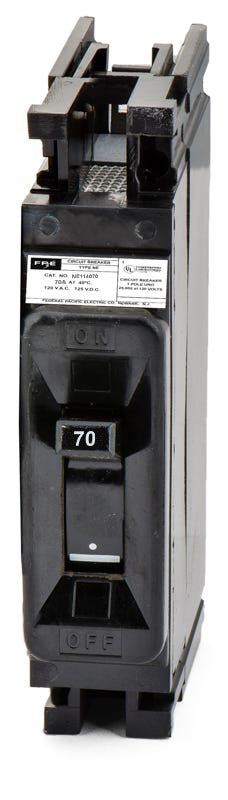

Federal Pacific NE114070 - 70A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 1 Pole Molded Case Circuit Breaker
90A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Built to support higher amperage branch circuits in legacy installations, this 70A single-pole unit fits Federal Pacific NE panelboards. It utilizes a robust bolt-on mounting style to replace original equipment, eliminating the need for complex retrofits or panel upgrades. With a 14kA interrupt rating at 120VAC and reverse feed capabilities, the non-interchangeable trip design offers consistent long-time and instantaneous protection for industrial loads.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NE114070 |
| Series | NE |
| Amperage | 70A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, HACR Rated, Reverse Feed |
Product FAQs
4 answersCan the NE114070 be installed in a residential Federal Pacific Stab-Lok load center?
No. The NE114070 is an NE frame commercial molded case circuit breaker with a bolt-on mounting style. It is not compatible with residential Stab-Lok load centers, which require plug-on Stab-Lok breakers. It is designed exclusively for Federal Pacific NE panelboards.
Can the NE114070 be used in DC control circuits?
Yes. While primarily used in 120V AC systems with a 14kAIC rating, the NE114070 is also rated for 125V DC applications with a 5kA interrupting capacity. This allows it to be utilized in legacy DC control panels and battery systems that require a 70-amp, 1-pole breaker.
Are the thermal and magnetic trip functions on the NE114070 adjustable?
No. The NE114070 utilizes a fixed thermal-magnetic trip unit. Both the long-time (thermal) and instantaneous (magnetic) trip functions are factory-set and cannot be adjusted by the installer.
Are new Federal Pacific NE114070 breakers still being manufactured?
Federal Pacific Electric (FPE) is a legacy brand, and original NE frame breakers are no longer in active production. Sourcing a replacement requires finding existing legacy stock of the NE114070, as modern aftermarket manufacturers do not typically produce direct bolt-on replacements for the commercial NE panelboard line.
