Federal Pacific NE114080 Molded Case Circuit Breaker
- 80A
- 1 Pole
- Bolt-On
Federal Pacific
NE114080
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE114080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

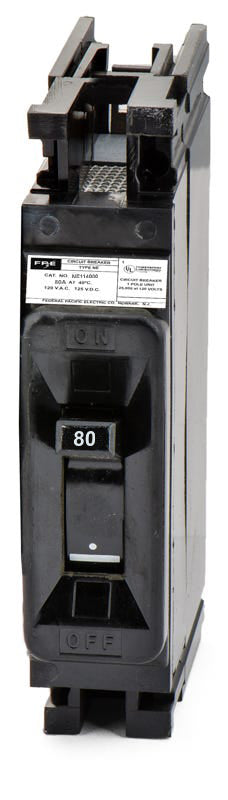

Federal Pacific NE114080 - 80A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Designed to restore power in older commercial facilities, this 80A single-pole molded case circuit breaker features a fixed thermal-magnetic trip mechanism. It installs seamlessly into legacy Federal Pacific NE panelboards without requiring aftermarket adapters or modifications. Rated for 14kAIC at 120VAC and 5kAIC at 125VDC, the unit ensures robust overcurrent and short-circuit protection. Load side lugs are included to facilitate straightforward wiring connections for 14-1/0 AWG conductors.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NE114080 |
| Series | NE |
| Amperage | 80A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersWhat panelboards are compatible with the NE114080 circuit breaker?
This breaker is designed specifically as a direct bolt-on replacement for legacy Federal Pacific NE panelboards.
Are aftermarket adapters required to install this breaker?
No. The NE114080 is an exact-fit component that bolts directly into the busbar of vintage Federal Pacific NE panelboards without requiring modifications or adapter kits.
What wire gauge range do the lugs on the NE114080 accept?
The included load side lugs accommodate conductors ranging from 14 AWG up to 1/0 AWG.
Can the NE114080 be used in DC power systems?
Yes, in addition to its 120VAC rating, this breaker is rated for 125VDC applications where it provides a 5kA interrupting capacity.
What type of protection does the LI trip function provide?
The fixed thermal-magnetic trip unit provides Long-Time (L) protection against sustained overloads and Instantaneous (I) protection against sudden short circuits.
Is the NE114080 the same as a residential Stab-Lok breaker?
No. The NE114080 is a commercial-grade N-frame molded case circuit breaker with a bolt-on mounting style. It is not compatible with residential Stab-Lok load centers.
