ABB / General ElectricTHQC1120WL
Free Shipping Over $99

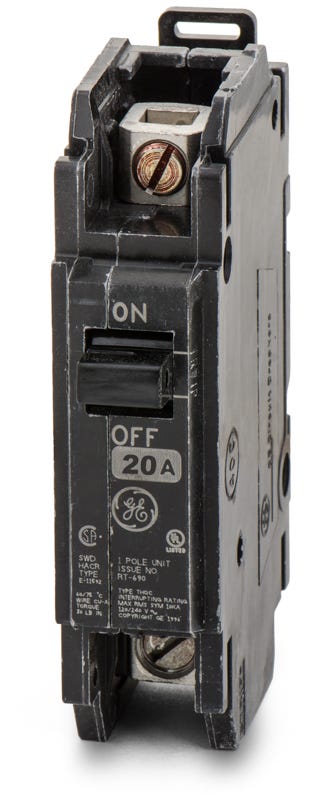

ABB / General Electric THQC1120 Molded Case Circuit Breaker
- 20A
- 1 Pole
- DIN Rail
ABB / General Electric
THQC1120
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC1120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC1120 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQC1120 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1120 |
| Series | THQC |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQC1120 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1120-R |
| Series | THQC |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQC1115
15A 1 Pole Molded Case Circuit Breaker

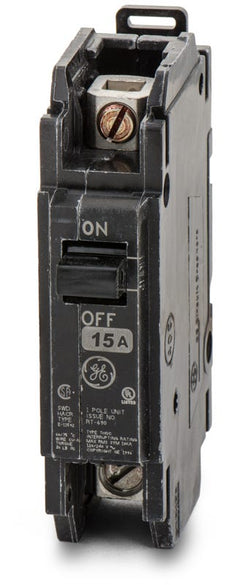

ABB / General ElectricTHQC1115WL
15A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1130
30A 1 Pole Molded Case Circuit Breaker
Description
Engineered for robust performance, the THQC1120 1-pole, 20A molded case circuit breaker provides essential overcurrent and short-circuit protection for 120/240VAC electrical systems. This lug-to-lug miniature breaker is designed for flexible installation, mounting securely onto standard 35mm DIN rails or integrating seamlessly into compatible GE OEM panels. Delivering a 10 kAIC interrupting capacity, it features a fixed thermal-magnetic trip mechanism and is fully HACR and SWD rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1120 |
| Series | THQC |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat type of panels or enclosures can the THQC1120 be installed in?
This breaker features a cable-in, cable-out lug design that mounts onto a standard 35mm DIN rail or bolts directly into custom OEM panels and control enclosures.
Will the THQC1120 fit in a standard GE Powermark residential load center?
No. GE residential load centers typically require plug-on type breakers. The THQC1120 is a bolt-on, lug-to-lug breaker designed for industrial panels, machinery, and DIN rail applications.
Can I use aluminum wire with the lugs on this breaker?
Yes, the lug terminals on the THQC1120 accept both copper and aluminum wiring. Acceptable wire ranges are 14 to 8 AWG for copper and 12 to 8 AWG for aluminum.
Is there a difference between the GE THQC1120 and the ABB THQC1120?
No, they are the exact same component. ABB acquired the GE Industrial Solutions division, so this breaker is fully interchangeable and maintains the same footprint whether it is branded as GE or ABB.
Does the THQC1120 feature ground fault (GFCI) or arc fault (AFCI) protection?
No. The fixed LI (Long-Time and Instantaneous) trip function indicates this is a standard thermal-magnetic breaker providing overload and short-circuit protection only.
Can the THQC1120 be used as a feed-thru breaker?
Yes, the THQC series operates as a feed-thru, cable-in and cable-out breaker, meaning conductors are connected directly to the mechanical lugs on both the line and load sides.
