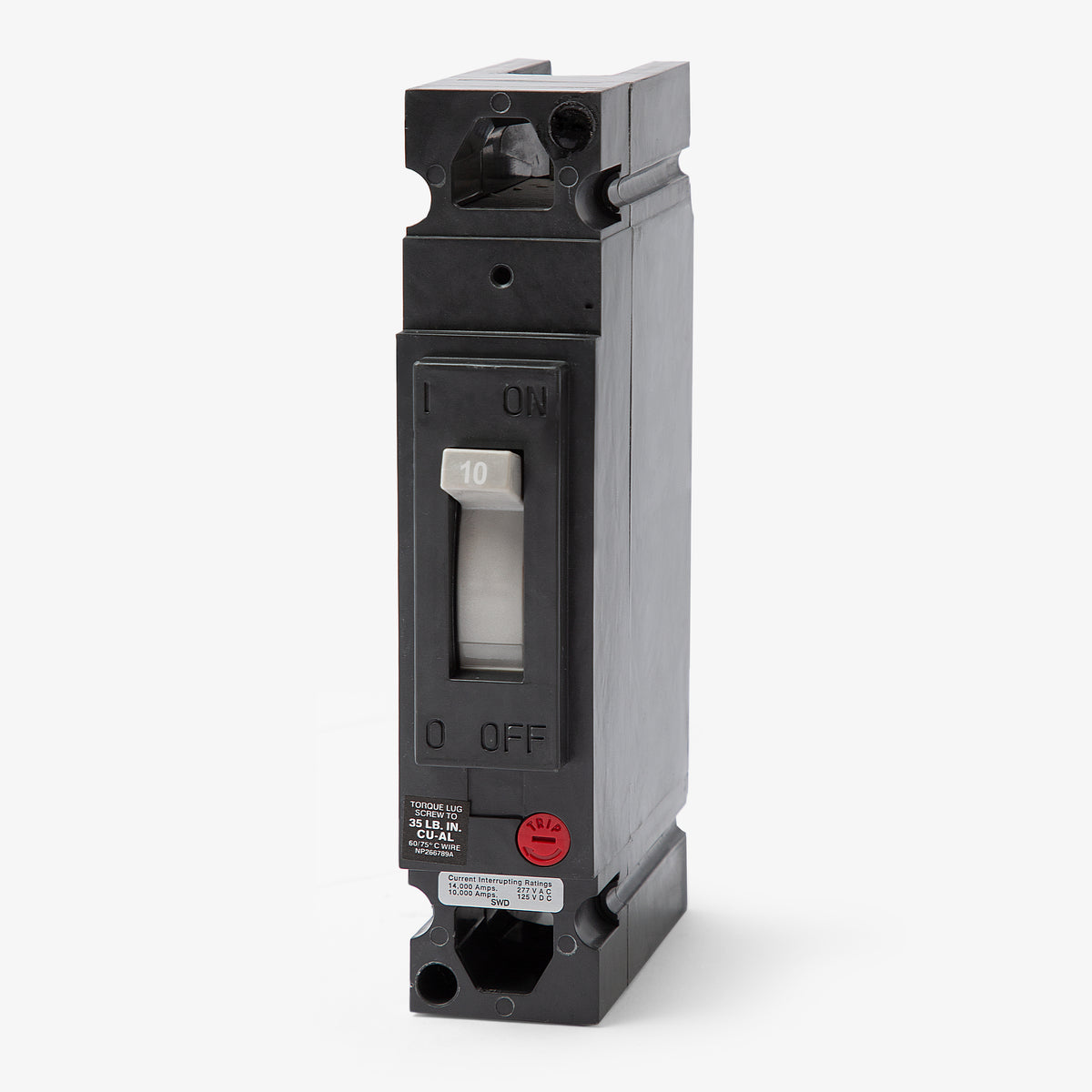

ABB / General Electric TED113010 Molded Case Circuit Breaker

No. While most GE TED series breakers are HACR rated for heating, air conditioning, and refrigeration equipment, the 10A models (including the TED113010) are an exception and do not carry the HACR listing.

Yes. All GE TED series molded case circuit breakers, including the TED113010, are suitable for reverse feed applications.

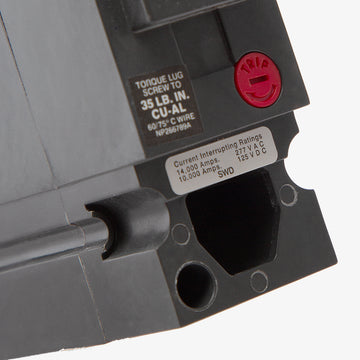

Tightening torque depends on the wire gauge used. Torque 14-10 AWG wire to 35 in-lb, 8 AWG to 40 in-lb, 6-4 AWG to 45 in-lb, and 3-2 AWG to 50 in-lb.

TED and THED breakers share the same physical E150 frame and mount into the same panelboards. The primary difference is that THED breakers feature a higher interrupting capacity (AIC rating) for systems with higher available fault current.

ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this TED series breaker may arrive with either GE or ABB branding. The physical dimensions, fit, and UL listings remain identical regardless of the label.

This E150 frame breaker bolts directly into GE A-Series and Spectra Series panelboards. It is commonly used in commercial and industrial power distribution systems.
