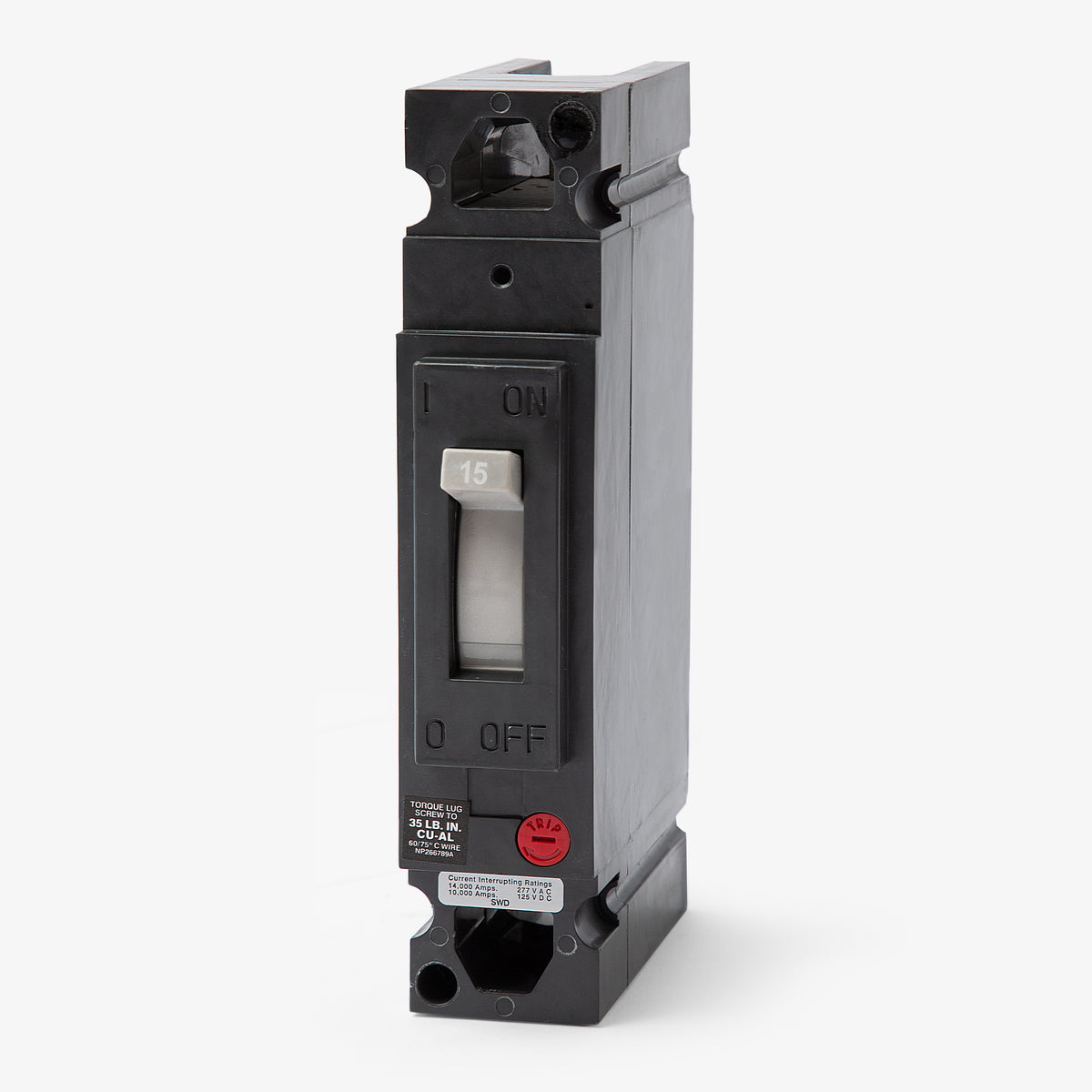

ABB / General Electric TED113015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
ABB / General Electric
TED113015
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED113015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED113015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTED113010
10A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113030
30A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED114030
30A 1 Pole Molded Case Circuit Breaker
Description
Constructed for demanding commercial environments, this 15A single-pole E-frame device manages standard power distribution and lighting circuits. It fastens into GE A-Series and Spectra Series panelboards, ensuring a stable connection for critical loads. Carrying an SWD rating for fluorescent lighting applications, it delivers a 14kAIC interrupting capacity at 277VAC alongside a reliable trip-free mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113015 |
| Series | TED |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |

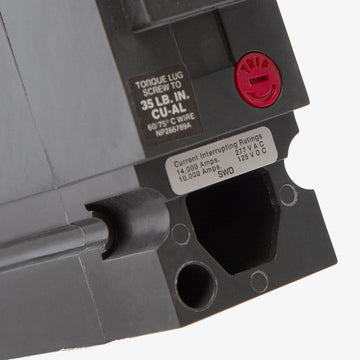

| AIC Rating | 14kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included (TCAL12) |
| Standards | HACR, UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhich panelboards are compatible with the TED113015 circuit breaker?
This bolt-on breaker is designed for installation in legacy GE A-Series and GE Spectra Series panelboards.
What frame family does the TED113015 belong to?
This breaker is part of the legacy GE E150 line. It utilizes the TED frame, which falls under the broader E Frame group of molded case circuit breakers.
Can the TED113015 be used in direct current (DC) systems?
Yes. In addition to its standard AC ratings, this thermal-magnetic breaker is rated for 125VDC applications, providing up to 10kAIC of interrupting capacity for DC circuits.
Are the trip settings adjustable on the TED113015?
No. This breaker features a non-interchangeable thermal-magnetic trip unit with fixed long-time and fixed instantaneous (LI) functions. The trip points cannot be adjusted in the field.
How is the TED113015 secured inside a panelboard?

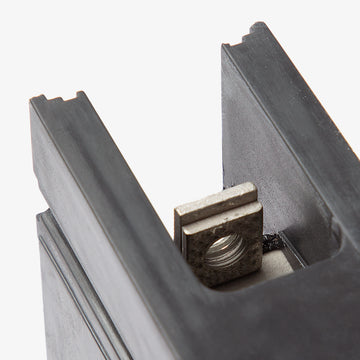

It features a bolt-on connection type. The breaker must be mechanically fastened directly to the buswork of a compatible GE panelboard, which provides a secure, vibration-resistant electrical connection.
Is the GE TED series being phased out?
Yes. Following ABB's acquisition of GE Industrial Solutions, the legacy GE E150 line, which includes TED frame breakers, is being replaced by the ABB Tmax XT series. Retrofit kits are often required when upgrading existing Spectra panelboards to the new XT breakers.
