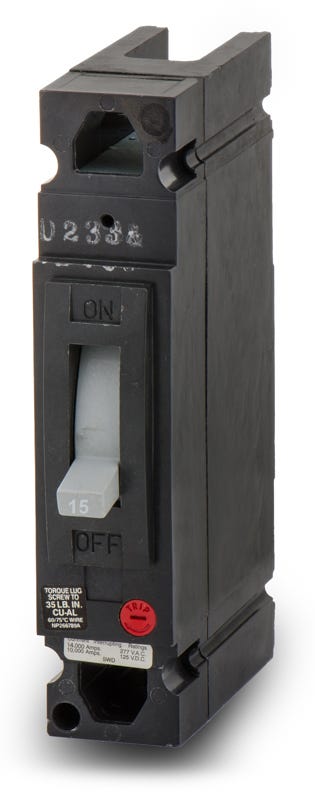

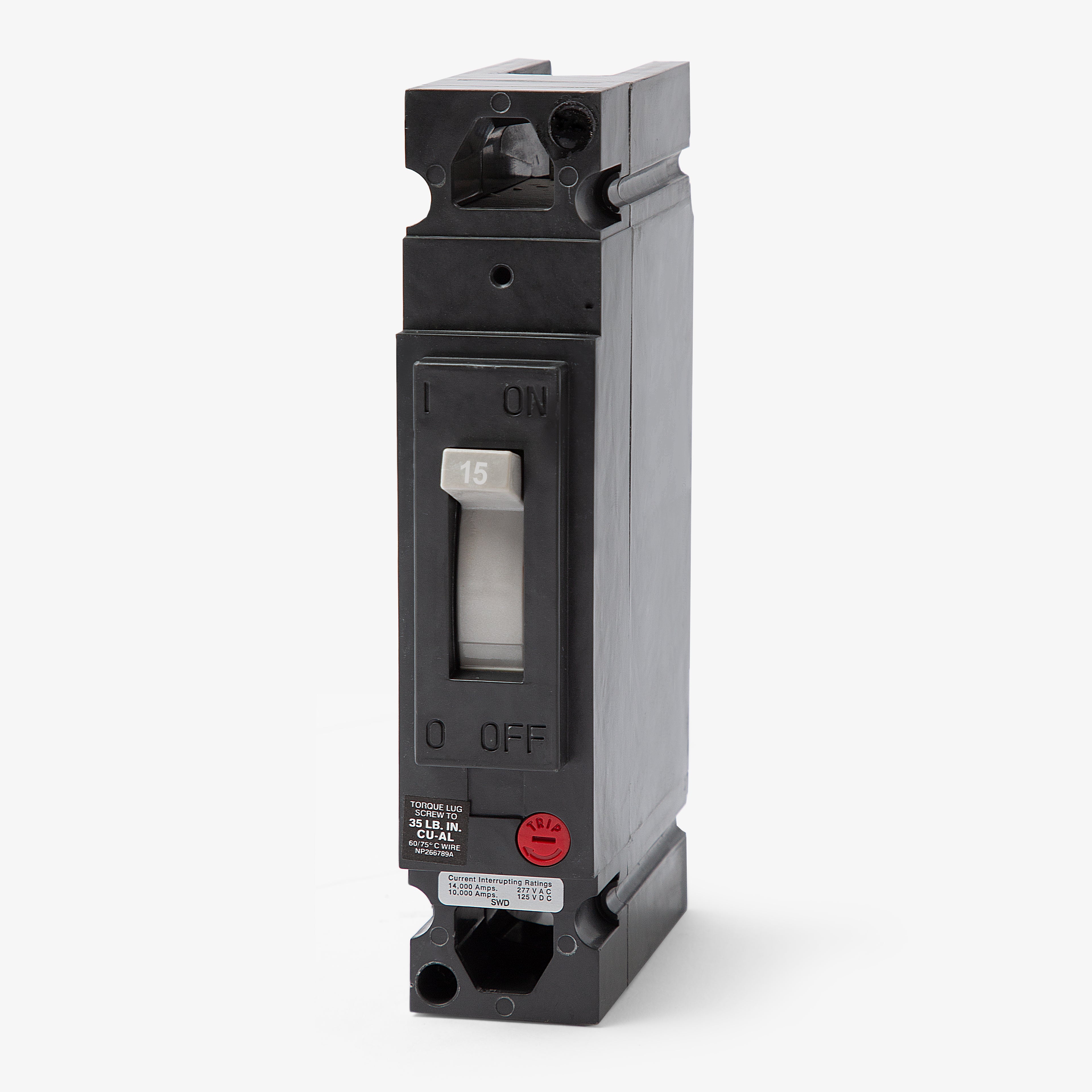

ABB / General Electric TED113015WL Molded Case Circuit Breaker
- 15A
- 1 Pole
- Unit Mount
ABB / General Electric
TED113015WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED113015WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED113015WL - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTED113030WL
30A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113035WL
35A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113040WL
40A 1 Pole Molded Case Circuit Breaker
Description

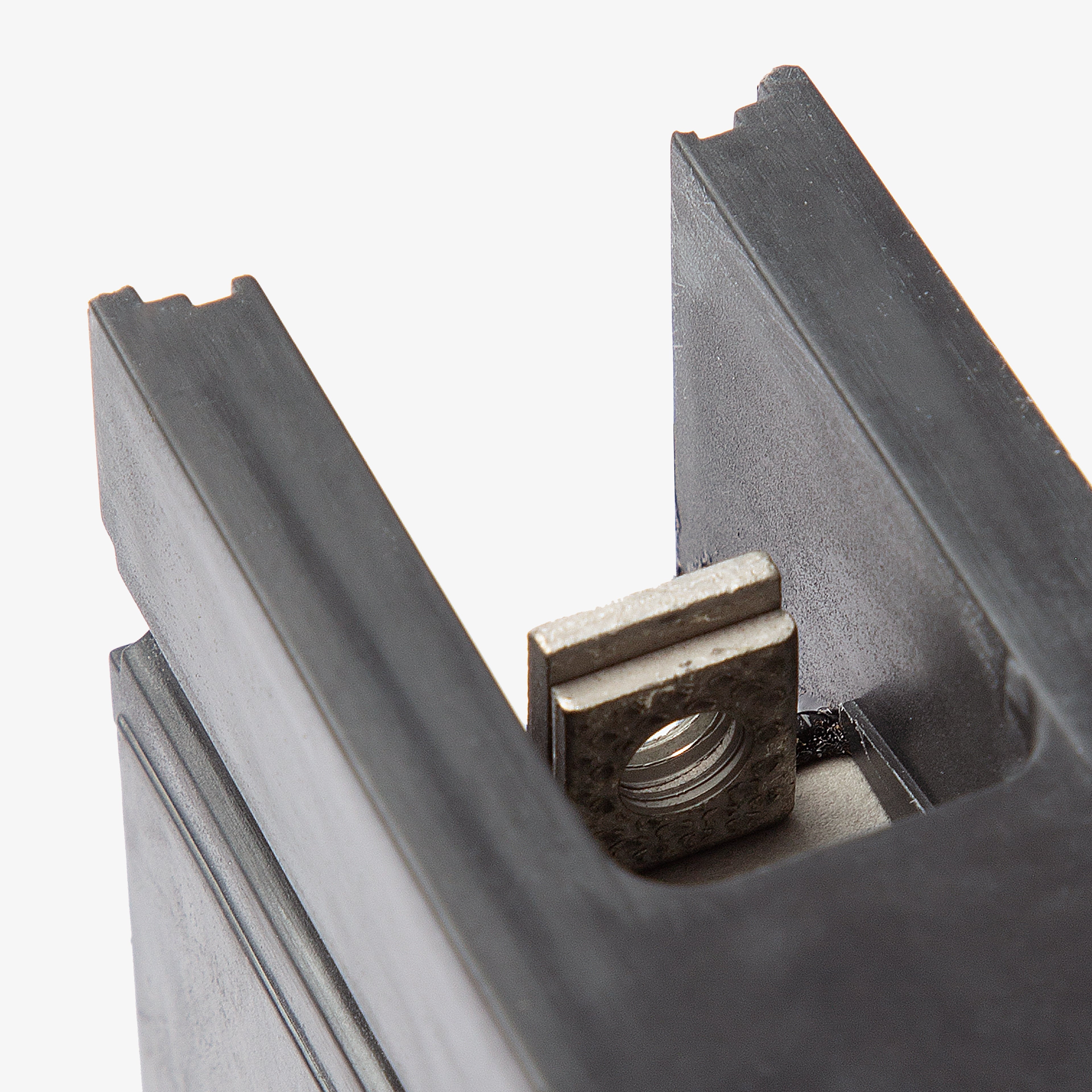

Engineered for commercial applications, the GE TED113015WL is a 1-pole, 15A molded case circuit breaker from the E150 line. It provides dependable long-time and instantaneous (LI) trip functions to safeguard electrical infrastructure against overloads and short circuits. This unit-mount breaker installs into individual enclosures and switchboards. The "WL" suffix indicates it includes factory-installed Cu/Al line and load lugs (TCAL14) for 14-8 AWG wire.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113015WL |
| Series | TED |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TCAL14) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
4 answersWhat does the WL suffix indicate on the TED113015WL?
The WL suffix means this breaker comes with factory-installed line and load lugs. These lugs are compatible with 14 to 8 AWG copper or aluminum conductors.
Where is the TED113015WL typically installed?
As a unit-mount, feed-thru breaker, it is designed to be bolted directly into individual enclosures, switchboards, and motor control centers. It is not compatible with standard plug-in residential load centers.
Is the TED113015WL manufactured by GE or ABB?
ABB acquired GE Industrial Solutions, so this E150 line breaker may feature either ABB or GE branding. Both versions share the exact same physical dimensions, mounting, and technical specifications.
How does the thermal-magnetic trip unit function on this breaker?
The fixed thermal-magnetic mechanism provides long-time protection for sustained overloads and instantaneous protection to quickly clear short circuits.
