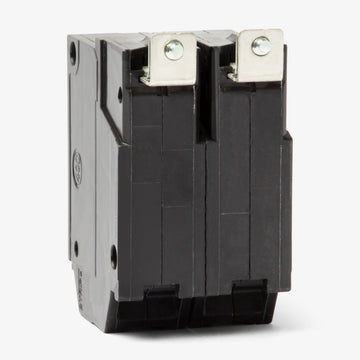

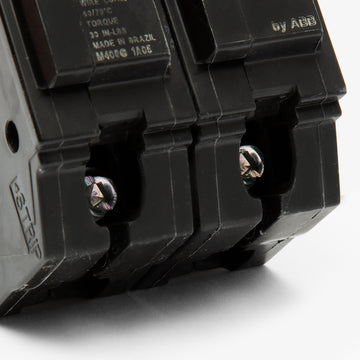

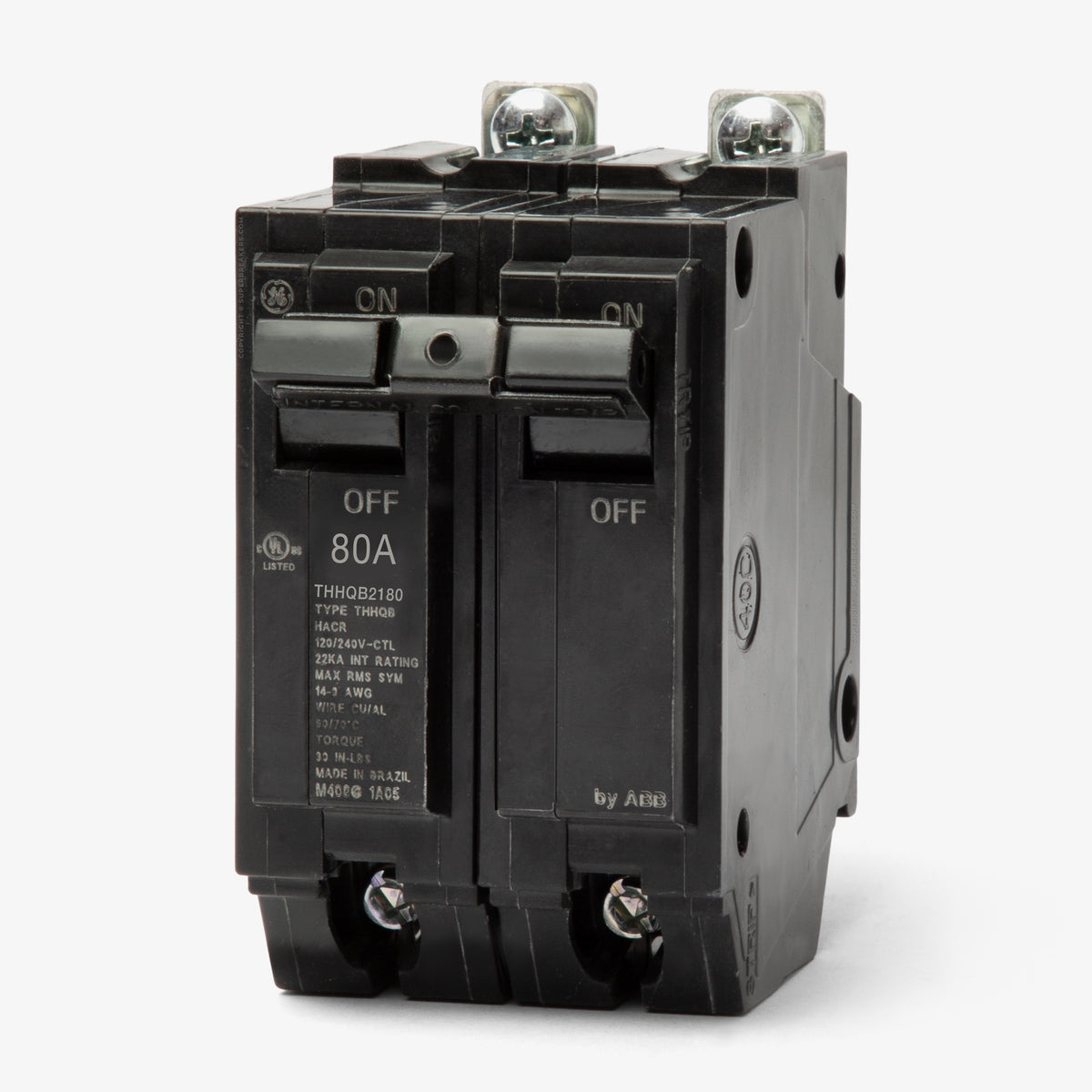

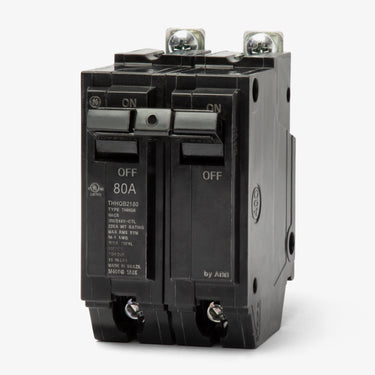

ABB / General Electric THHQB2180 Miniature Circuit Breaker
- 80A
- 2 Pole
- Bolt-On
ABB / General Electric
THHQB2180
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THHQB2180
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQB2180 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THHQB2180 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2180 |
| Series | THHQB |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear RQ Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Sold out
Quantity
ABB / General Electric THHQB2180 - 80A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2180-R |
| Series | THHQB |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear RQ Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Similar Items
ABB / General ElectricTHHQB22100
100A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB2160
60A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB2150
50A 2 Pole Miniature Circuit Breaker
Description
Part of the Q-Line family, this 80A miniature circuit breaker provides reliable thermal-magnetic trip functions for commercial and industrial environments. It installs into GE A-Series and ReliaGear RQ panelboards, offering a robust bolt-on mounting style that prevents loose connections over time. Rated at 22kAIC at 120/240VAC, the unit features an internal common trip mechanism and quick-make/quick-break operation to ensure optimal safety and performance under fault conditions.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2180 |
| Series | THHQB |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear RQ Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Product FAQs
6 answersWhich panelboards are compatible with the THHQB2180 breaker?
This bolt-on breaker is designed for use in GE A-Series panelboards and ABB ReliaGear RQ lighting panelboards. It requires a bolt-on chassis and will not fit in standard residential load centers that use plug-on breakers.
Are GE and ABB THHQB2180 breakers the same?
Yes. ABB acquired GE Industrial Solutions, so breakers previously branded as General Electric are now manufactured by ABB. They share the same THHQB catalog numbers, physical dimensions, and UL listings, making them fully interchangeable in existing GE panelboards.
Can I use a THHQB2180 to replace a standard THQB2180?
Yes. The THHQB2180 shares the exact same physical dimensions and bolt-on mounting as the THQB2180, but offers a higher interrupting rating of 22kAIC compared to the standard 10kAIC. It is a direct, upgraded replacement where higher fault current protection is required.
Do I need special terminals to connect 1/0 AWG wire to this breaker?

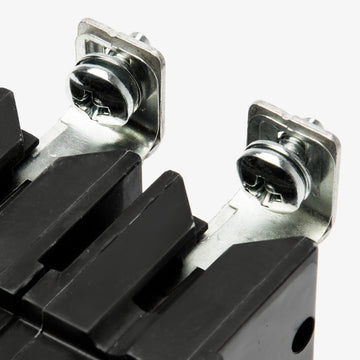

No special terminals are required. The factory-installed box lugs are sized to accept up to 1/0 AWG wire for both copper (6 to 1/0 AWG) and aluminum (4 to 1/0 AWG) conductors.
Is the THHQB2180 suitable for reverse feeding?
Yes, this thermal-magnetic breaker is suitable for reverse feed applications. It does not have dedicated line and load markings, allowing it to be back-fed when used as a main breaker in compatible panelboards.
Is this breaker HACR rated for HVAC equipment?
Yes, the THHQB2180 is HACR rated, making it fully certified for use with heating, air conditioning, and refrigeration equipment that requires this specific protection profile.
