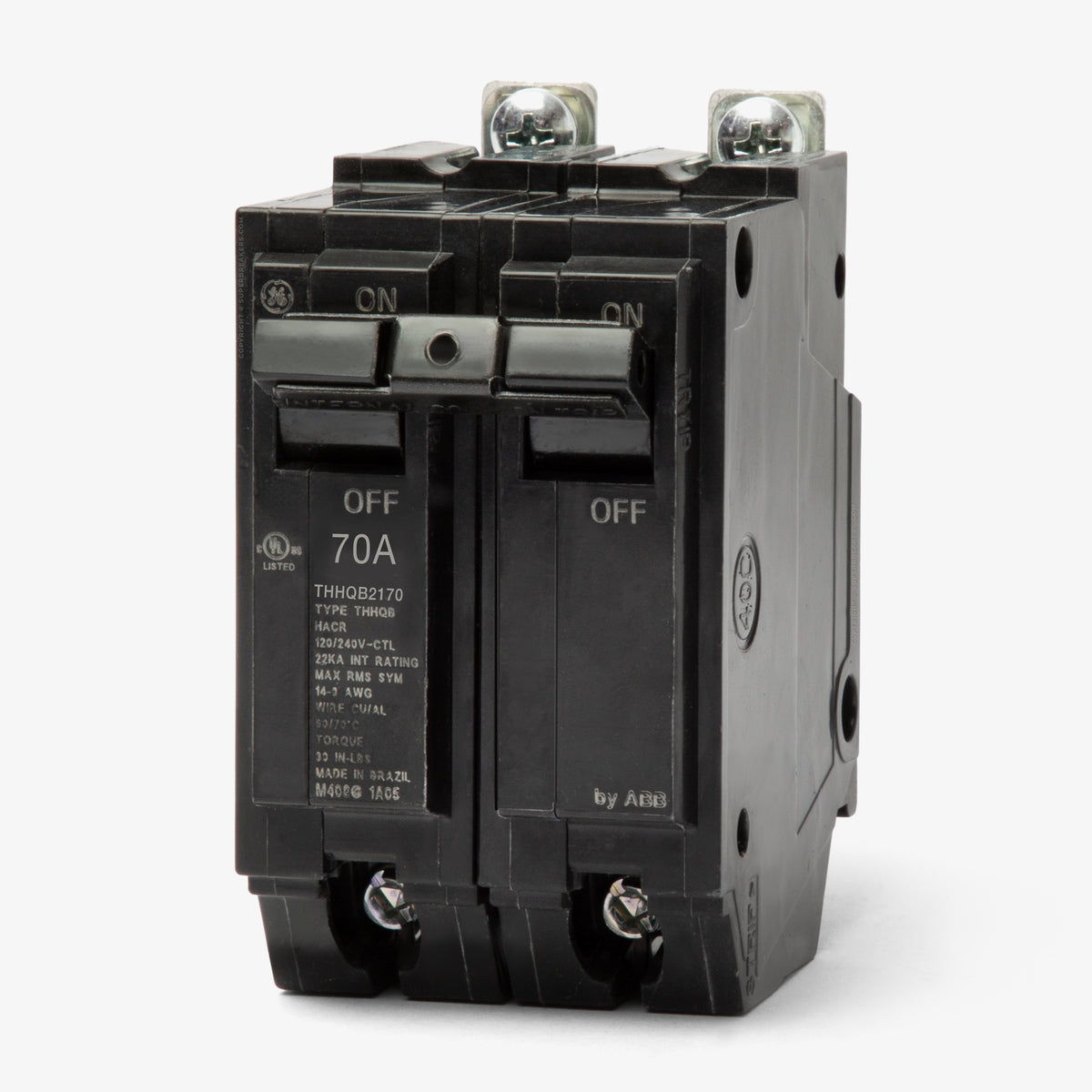

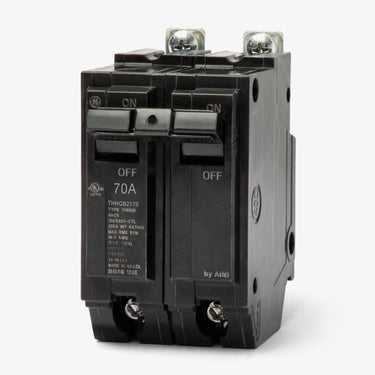

ABB / General Electric THHQB2170 Miniature Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
ABB / General Electric
THHQB2170
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THHQB2170
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQB2170 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THHQB2170 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2170 |
| Series | THHQB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THHQB2170 - 70A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2170-R |
| Series | THHQB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHHQB2160
60A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB2150
50A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB2145
45A 2 Pole Miniature Circuit Breaker
Description
Part of the Q-Line family, this 70-amp miniature circuit breaker offers dependable long-time and instantaneous trip functions. It fastens firmly into GE A-Series panelboards and AQ lighting panels using a standard bolt-on mounting configuration. With a solid 22kAIC rating at 120/240VAC, the HACR-rated device accommodates 6-1/0 AWG copper wire and includes a trip-free mechanism to prevent the contacts from being held closed during a fault.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2170 |
| Series | THHQB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
7 answersWhat panelboards are compatible with the THHQB2170 circuit breaker?
The THHQB2170 is a bolt-on Q-Line breaker designed specifically for use in GE A-Series panelboards and GE AQ lighting panels.
Can the THHQB2170 be installed in a standard GE residential load center?
No. The THHQB2170 is a bolt-on breaker designed for commercial panelboards. Standard GE residential load centers require plug-in Q-Line breakers, such as the THQL series.
What is the difference between GE THHQB and THQB circuit breakers?
The H in THHQB indicates a higher interrupting capacity. The THHQB2170 is rated at 22kAIC at 240V, whereas the standard THQB equivalent is rated at 10kAIC. Both share the same 1-inch per pole bolt-on physical footprint.
Can I use the THHQB2170 to replace a THQB2170?
Yes. The THHQB2170 has the exact same physical dimensions and bolt-on mounting configuration as the THQB2170, but offers a higher 22kAIC interrupting rating, making it a safe and direct upgrade.

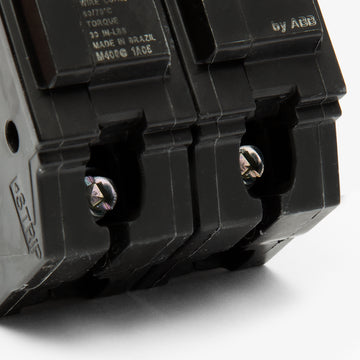

What wire sizes and materials are accepted by the THHQB2170 terminals?
The box lugs on this breaker accept 6 AWG to 1/0 AWG copper (Cu) conductors, and 4 AWG to 1/0 AWG aluminum (Al) conductors.

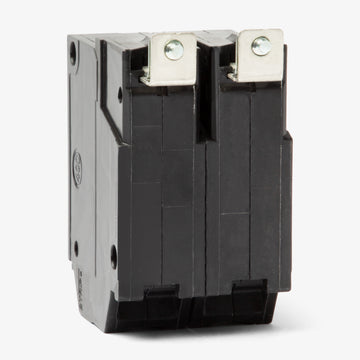

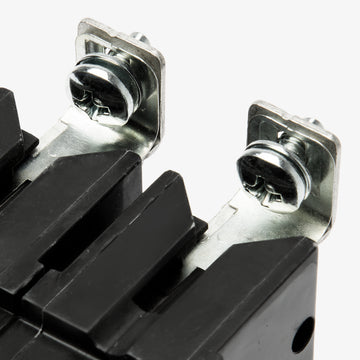

Does the THHQB2170 require a specific mounting hardware kit?
No additional mounting kits are required. As a bolt-on breaker, it fastens directly to the busbar connections inside compatible GE A-Series and AQ lighting panels.
How does the thermal-magnetic trip unit function on the THHQB2170?
The fixed LI (Long-Time, Instantaneous) trip unit uses a bimetallic strip for thermal overload protection and an electromagnetic assembly to trip instantaneously during short-circuit events.
