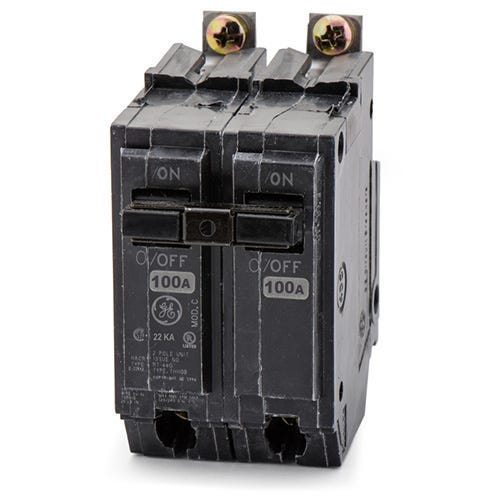

ABB / General Electric THHQB22100 Miniature Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
ABB / General Electric
THHQB22100
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THHQB22100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQB22100 - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHHQB2170
70A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB2160
60A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB2150
50A 2 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial applications, this 100-amp miniature breaker features a quick-make, quick-break mechanism. It utilizes standard box lug terminals to accommodate 6-1/0 AWG copper wire. The bolt-on design installs into GE A-Series and ReliaGear lighting panelboards. It provides a secure mechanical connection that withstands vibration in demanding electrical environments.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB22100 |
| Series | THHQB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards are compatible with the THHQB22100 circuit breaker?
The THHQB22100 is a bolt-on circuit breaker designed for use in GE A-Series and ReliaGear commercial panelboards. It is not compatible with standard residential Q-Line load centers, which require plug-on breakers like the THQL series.
What is the difference between the THHQB22100 and the THQB22100?
Both are 2-pole, 100A bolt-on circuit breakers with identical physical dimensions, but they have different short-circuit interrupting ratings. The THHQB22100 has a higher 22kAIC rating, while the standard THQB22100 is rated for 10kAIC.
What are the lug torque specifications for the THHQB22100?
For the box lugs on this 100A breaker, the recommended tightening torque depends on the wire size. Use 45 in-lb for 6 to 4 AWG wire, and 50 in-lb for 3 to 1/0 AWG wire. Always verify exact torque requirements on the breaker label before installation.
Can I use aluminum wire with the THHQB22100?
Yes, the box lugs on this breaker are rated for both copper and aluminum conductors. It accepts 6 to 1/0 AWG copper wire or 4 to 1/0 AWG aluminum wire.
Does the THHQB22100 provide GFCI or AFCI protection?
No. This is a standard thermal-magnetic circuit breaker providing overload and short-circuit protection. It does not include Ground Fault Circuit Interrupter (GFCI) or Arc Fault Circuit Interrupter (AFCI) functionality.
