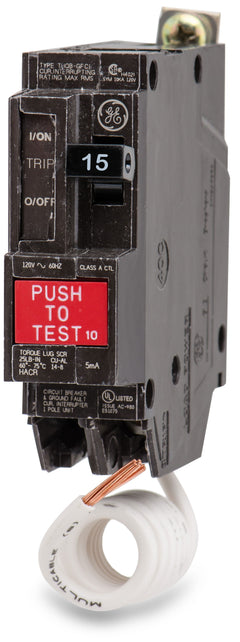

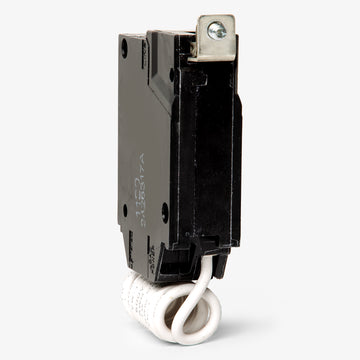

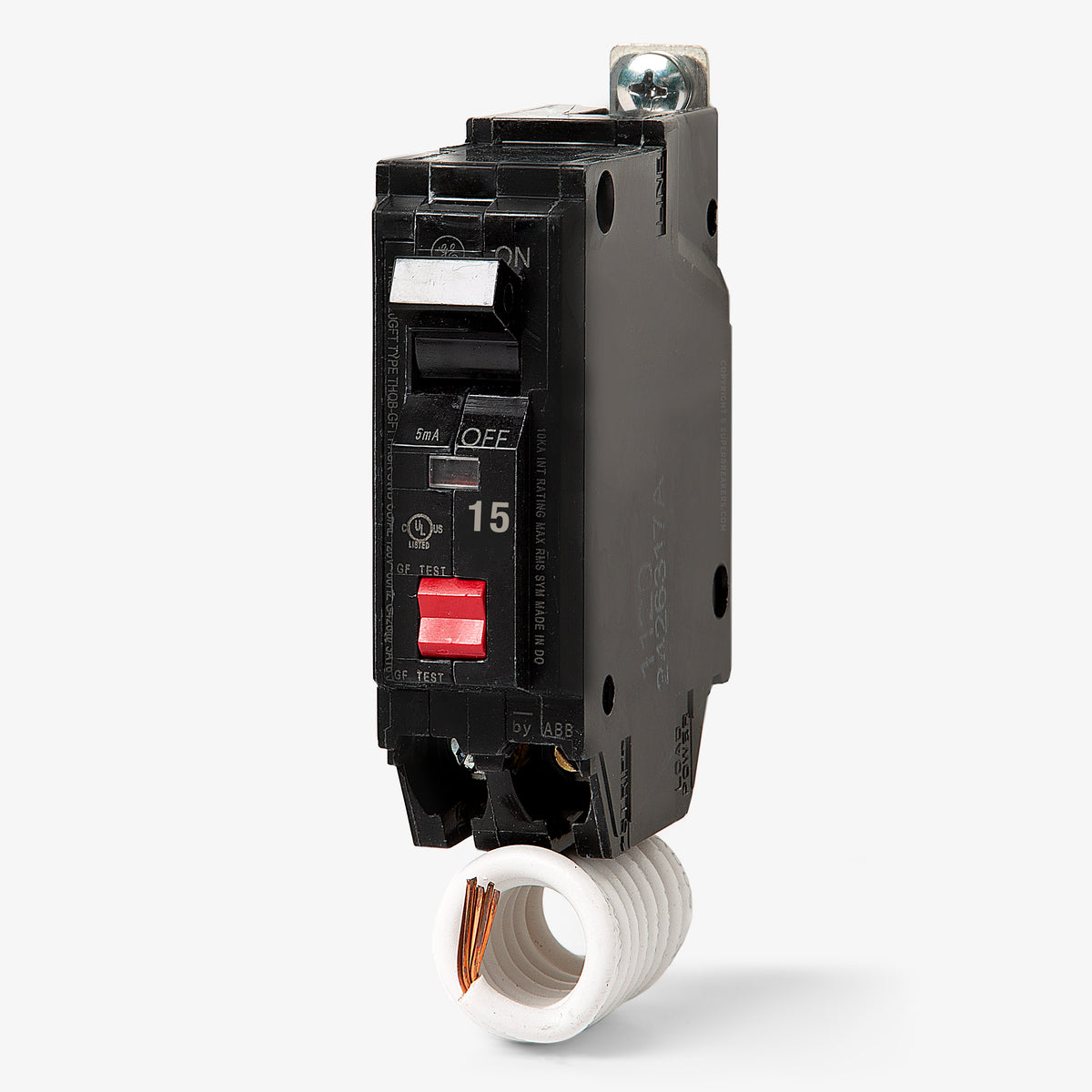

ABB / General Electric THQB1115GFT GFCI Miniature Circuit Breaker
- 15A
- 1 Pole

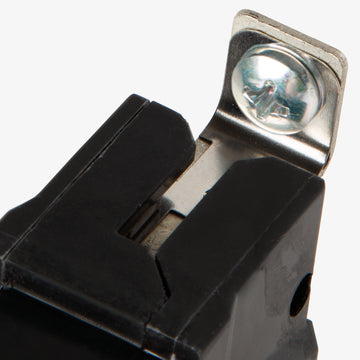

- Bolt-On
ABB / General Electric
THQB1115GFT
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB1115GFT
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB1115GFT - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB1120GF
20A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB1120GFT
20A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB1130GFT
30A GFCI Miniature Circuit Breaker
Description
The THQB1115GFT is a 1-pole, 15-amp ground fault circuit breaker designed for residential, commercial, and industrial use. It provides essential 5mA Class A protection against electrical shock, making it ideal for bathrooms, kitchens, and outdoor receptacles per NEC requirements. Mounting into GE A-Series panelboards and AQ lighting panels, this bolt-on breaker serves as a drop-in replacement for the older THQB1115GF.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip, Self-Test |
Product FAQs
7 answersWhat is the difference between the THQB1115GFT and the older THQB1115GF?
The THQB1115GFT includes an automatic self-test feature to ensure the ground fault circuitry is functioning properly. It serves as a direct, drop-in replacement for the discontinued THQB1115GF.
Can I use the THQB1115GFT in a standard residential GE load center?
Typically, no. This is a THQB bolt-on breaker designed for commercial GE A-Series panelboards and AQ lighting panels. Standard residential GE load centers usually require THQL plug-in breakers.
What is the ground fault trip sensitivity of this breaker?
It provides Class A ground fault protection with a 5mA trip sensitivity. This level of protection is specifically designed to protect personnel from severe electrical shock in areas like bathrooms, kitchens, and outdoor receptacles.
How is the neutral connection handled during installation?

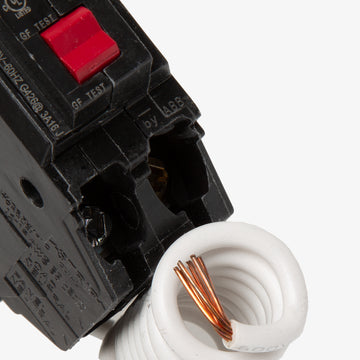

This breaker includes a factory-installed pigtail neutral wire. You must route and connect this pigtail directly to the panelboard's neutral bus bar to ensure the ground fault detection circuitry operates correctly.
Is the THQB1115GFT interchangeable with bolt-on breakers from other brands?
No. While other manufacturers offer similar bolt-on designs, this GE Q-Line breaker is only UL listed for use in compatible GE panelboards. Installing it in a different brand's panel violates code and creates safety hazards.
What happens if the self-test feature detects a failure?
If the automatic self-test identifies a compromised ground fault component, the breaker will trip and lock out. It will prevent power from being restored until the faulty unit is replaced, ensuring continuous personnel protection.
What does the LIG trip function code mean for this breaker?
LIG indicates the breaker provides Long-Time thermal overload protection, Instantaneous short circuit protection, and Ground-Fault protection. This combination safeguards wiring from overheating while also protecting users from shock hazards.
